Lenovo YOGA 500 User Manual

Chapter 1. Getting to know your computer
13

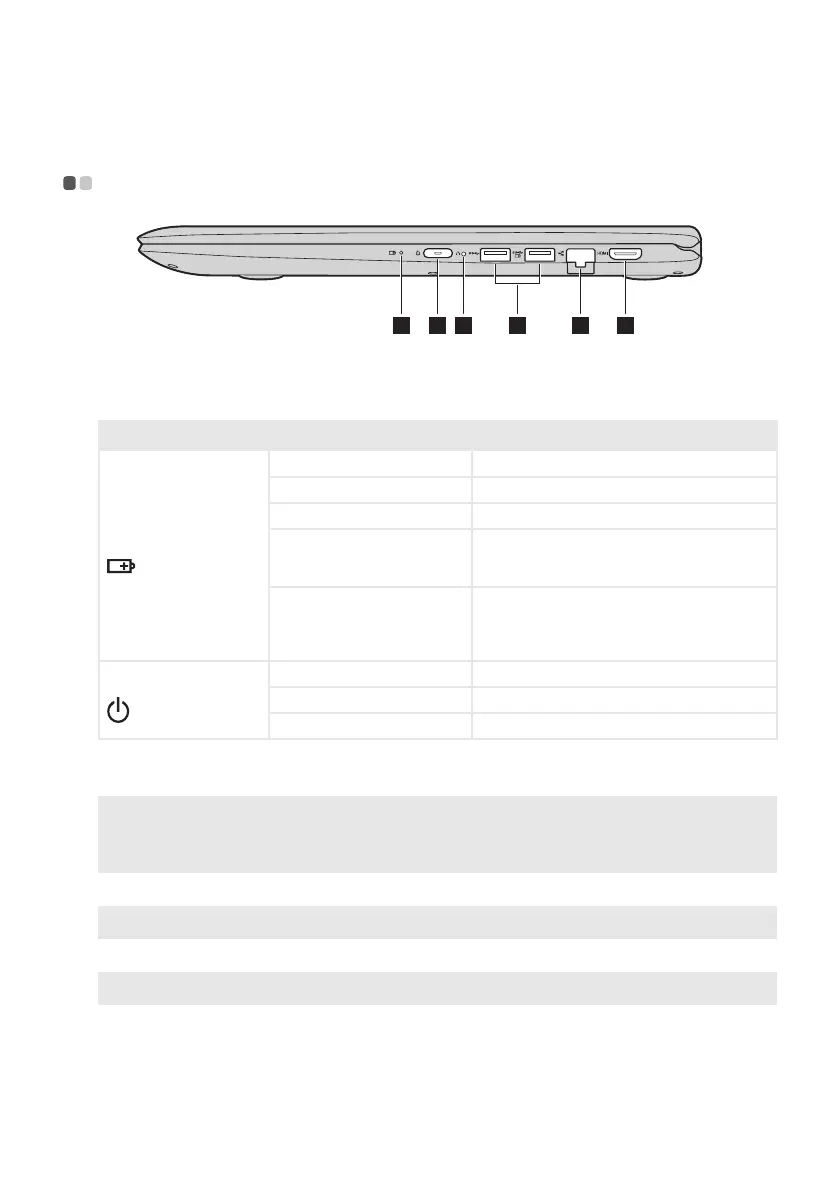

Right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
a
Battery status indicator
b
Power button
Press this button to turn on the computer.
Indicator Indicator status Meaning
Battery status indicator
On (solid white) The battery has more than 20% charge.
On (solid amber) The battery has between 5% and 20% charge.
Blinking quickly (amber) The battery has less than 5% charge.
Blinking slowly (amber)
The battery is being charged. When the battery
charge reaches 20%, the blinking color will
change to white.
Blinking slowly (white)
The battery has between 20% and 80% charge and
is still charging. When the battery reaches 80%
charge the light will stop blinking, but charging
will continue until the battery is fully charged.
Power status indicator
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.
c
Novo button
When the computer is off, press this button to start the Lenovo OneKey
Recovery System or the BIOS setup utility, or to enter the boot menu.
Notes:
• You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the
Novo button.
• For details, see “Lenovo OneKey Recovery System” on page 29.
d
USB port
Connects to USB 3.0 devices.
Note: For details, see “Connecting USB device” on page 14.
e
RJ-45 port
Connects the computer to an Ethernet network.
Note: For details, see “Connecting network cables” on page 15.
f
HDMI port
Connects to devices with HDMI input such as a TV or an external display.
1 2 3 5 64

Lenovo YOGA 500 Specifications

General

Form factor	Convertible (Folder)
Product type	Hybrid (2-in-1)
Product color	Black
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Internal memory type	DDR3L-SDRAM
Maximum internal memory	8 GB
Storage media	HDD
Optical drive type	-
Card reader integrated	Yes
Total storage capacity	1000 GB
Compatible memory cards	MMC, SD, SDHC, SDXC
Number of HDDs installed	1
Display diagonal	15.6 \
Touch technology	Multi-touch
Native aspect ratio	16:9
Audio system	Dolby Home Theater
Speaker power	1.5 W
Number of built-in speakers	2
Bluetooth version	4.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
DVI port	No
Charging port type	DC-in jack
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
VGA (D-Sub) ports quantity	0
Pointing device	Touchpad
Operating system installed	Windows 10
Operating system architecture	64-bit
Tcase	- °C
Bus type	QPI
Stepping	D1
Tjunction	100 °C
Processor cache	3 MB
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-6200 series
Processor socket	LGA 1356 (Socket B2)
Processor threads	4
Processor codename	Skylake
Configurable TDP-up	25 W
Processor frequency	2.3 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	2.8 GHz
PCI Express configurations	1x4, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
On-board graphics card ID	1916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Processor code	SR2EY
Processor ARK ID	88193
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00

Weight and Dimensions

Depth	255 mm
Width	385 mm
Height	22.2 mm
Weight	2100 g
