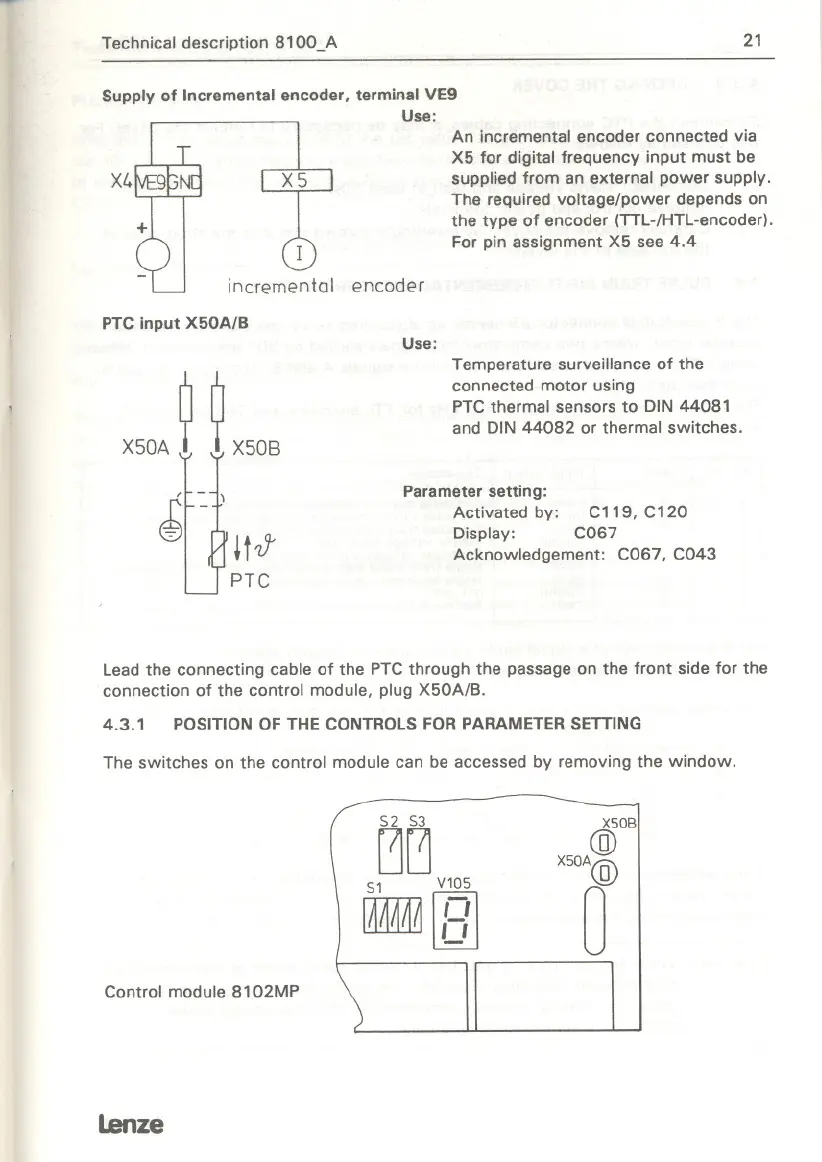

Technical description 8100_A
21
Supply of Incremental encoder. terminal VE9
Use:
X4
PTC Input X50A/B
An incremental encoder connected via
X5 for digital frequency input must be
supplied from an external power supply.
The required voltage/power depends on
the type of encoder (TTL-/HTL-encoder).
For pin assignment X5 see 4.4
incremental encoder
Use:
X50A ~ ~ X50B
Temperature surveillance of the
connected motor using
PTC thermal sensors to DIN44081
and DIN44082 or thermal switches.
UJ'
PTC
Parameter setting:
Activated by: C119. C120
Display: C067
Acknowledgement: C067. C043
Lead the connecting cable ot the PTC through the passage on the front side tor the
connection of the control module. plug X50A/B.
4.3.1 POSITION OF THE CONTROLSFOR PARAMETERSETTING
The switches on the control module can be accessed by removing the window.
~~V105
51
1'1
mrnL
Ulli!l!l!J LI
XSOB
@
XSOA@
o
Control module 8102MP
lenze
