Technical description 8100_A
27

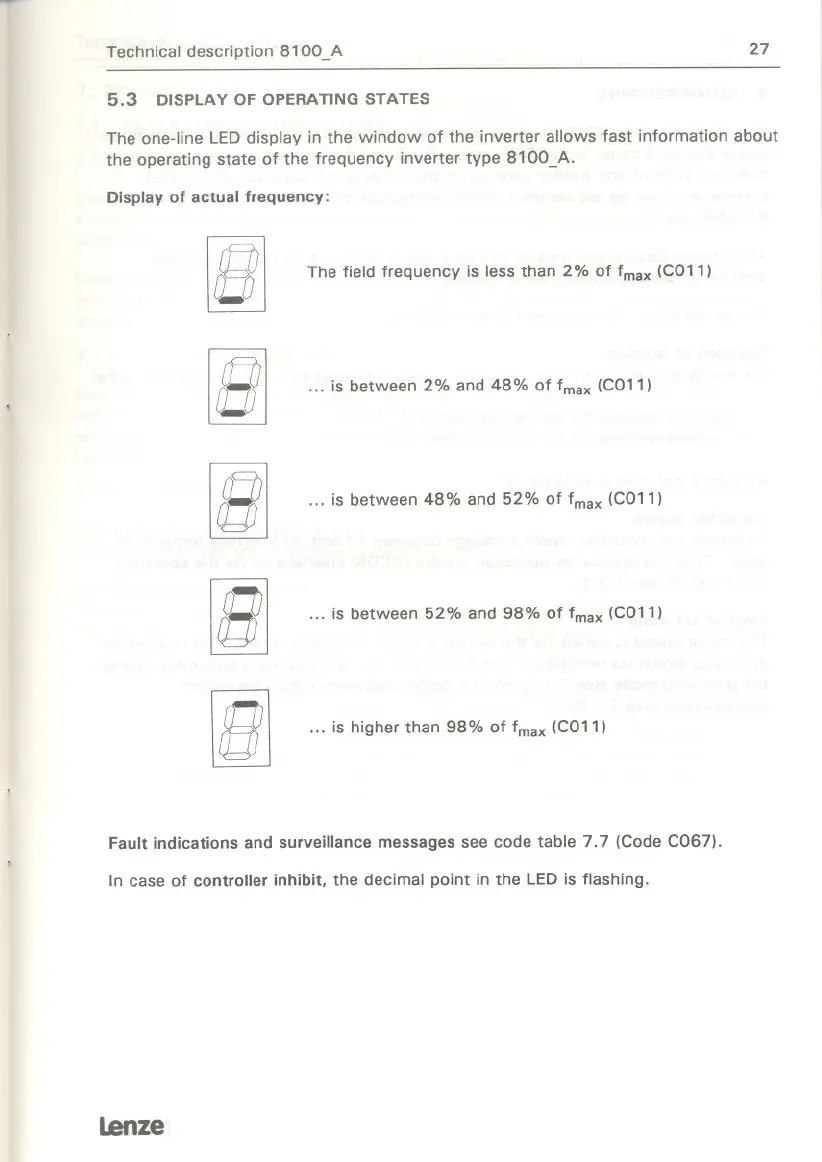

5.3 DISPLAY OF OPERATING STATES
The one-line LED display in the window of the inverter allows fast information about
the operating state of the frequency inverter type 8100_A.
Display of actual frequency:
ip
~
ISI
The field frequency is less than 2% of fmax (C011)
... is between 2% and 48% of fmax (C011)
... is between 48% and 52% of fmax (C011)
...is between 52% and 98% of fmax (C011)
... is higher than 98% of fmax (C011)
Fault indications and surveillance messages see code table 7.7 (Code C067).
In ca se of controller inhibit. the decimal point in the LEDis flashing.
