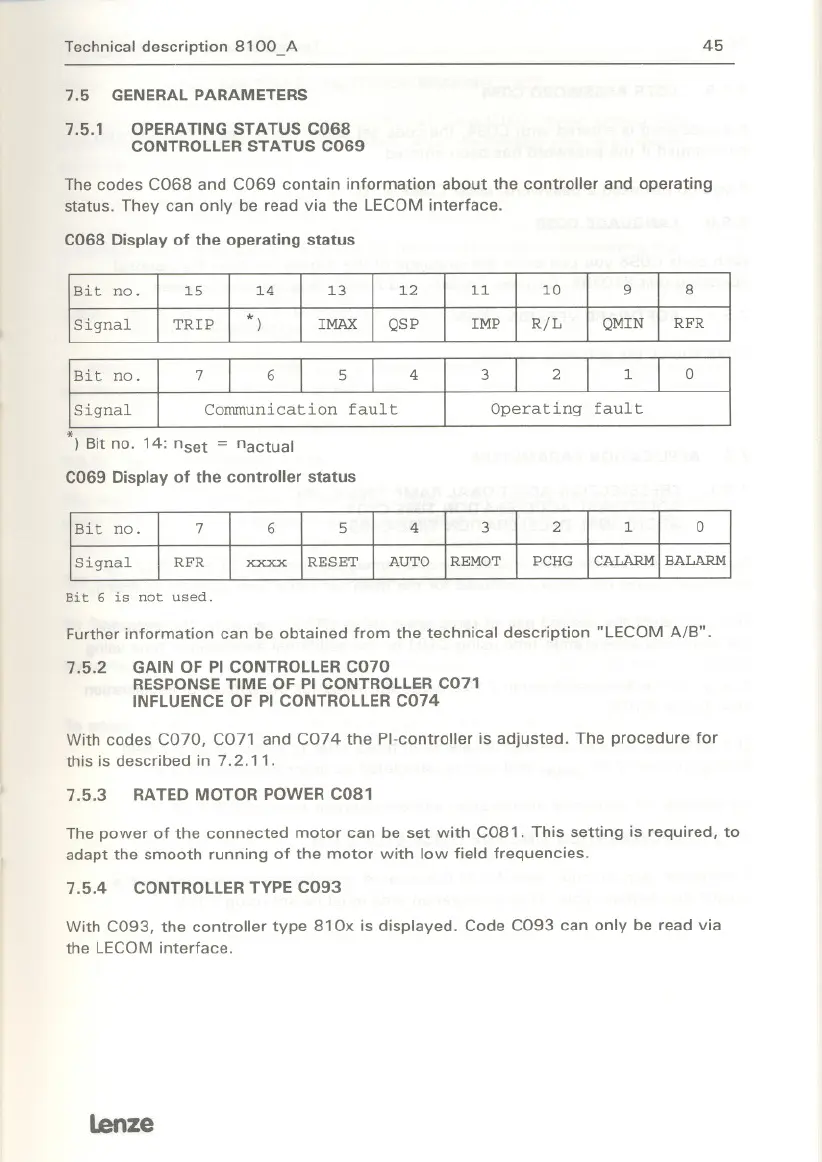

7.5 GENERALPARAMETERS
7.5.1 OPERATINGSTATUS C068
CONTROLLERSTATUSC069
The codes C068 and C069 contain information about the controller and operating
status. They can only be read via the LECOM interface.
C068 Display of the operating status
Bit no. 7 4
3
o
Signal
Communication fault
Operating fault
*)
Bit no. 14: nset = nactual
C069 Display of the controller status
Bit 6 is not used.
Further information can be obtained from the technical description "LECOM AlB".
7.5.2 GAIN OF PI CONTROLLERC070
RESPONSETIME OF PI CONTROLLERC071
INFLUENCEOFPI CONTROLLERC074
With codes C070. C071 and C074 the PI-controller is adjusted. The procedure for
this is described in 7.2.11.
7.5.3 RATEDMOTORPOWERC081
The power of the connected motor can be set with C081. This setting is required. to
adapt the smooth running of the motor with low field frequencies.
7.5.4 CONTROLLERTYPEC093
With C093. the controller type 810x is displayed. Code C093 can only be read via
the LECOM interface.
ienze
Bit no.
15
14 13
12 11
10
9 8
Signal
TRIP
*)
IMAX
QSP
IMP
R/L
QMIN
RFR
Bit no.
7 6 5 4 3
2 1
0
Signal
RFR
xxxx RESET
AUTO REMOT PCHG CALARM
BALARM
