Lenze EVS9325EP User Manual

Function library
Function blocks
3.5.21 Digital−analog converter (CONVDA)
3−150
l
EDSVS9332P−EXT DE 2.0

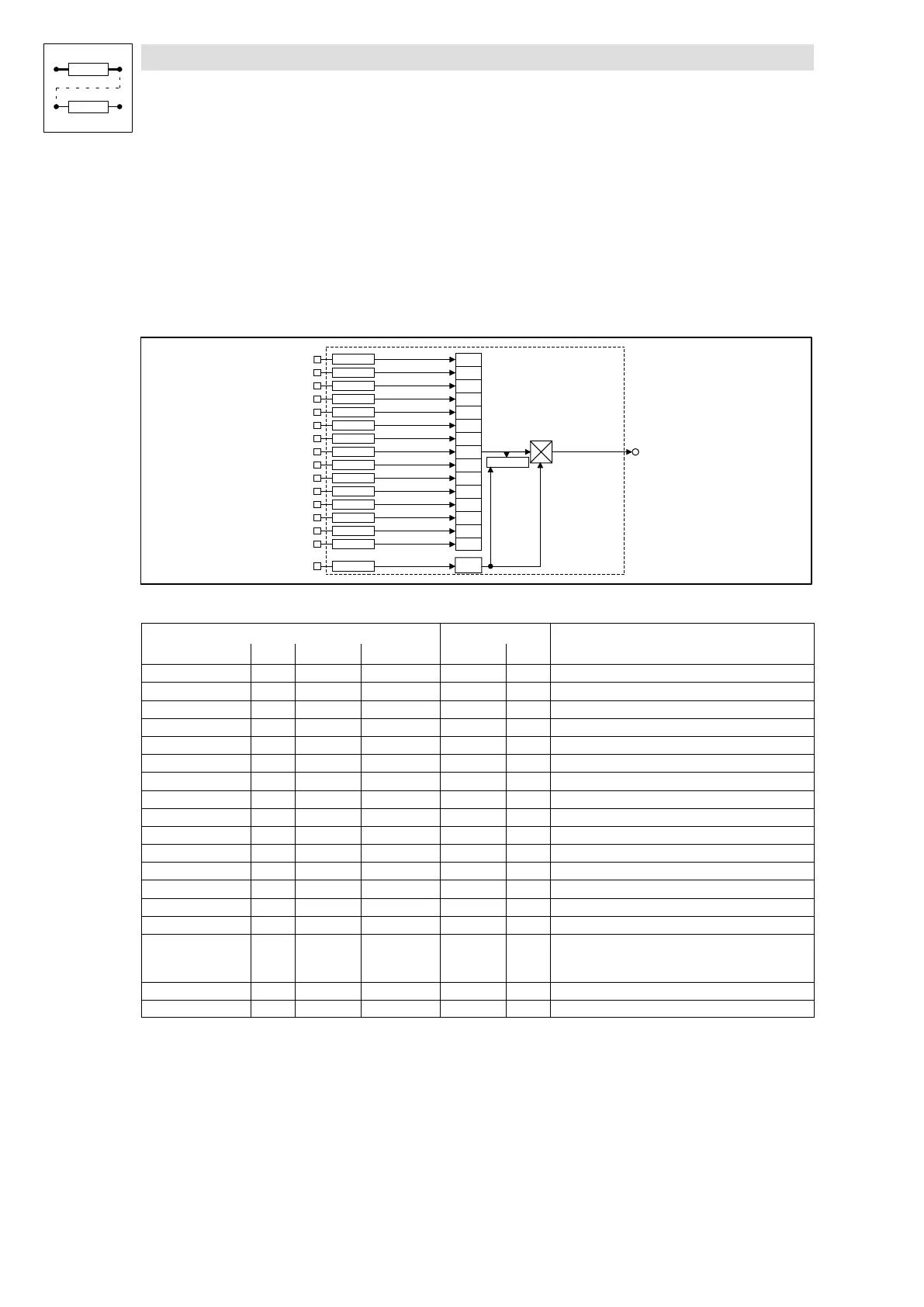

3.5.21 Digital−analog converter (CONVDA)
Three function blocks (CONVDA1 ... CONVDA3) are available.
Purpose
Conversion of individual digital signals to an analog value.
CONVDA1
CONVDA1-OUT
CONVDA1
CONVDA1.B0
CONVDA1.B1
CONVDA1.B2
CONVDA1.B3
CONVDA1.B4
CONVDA1.B5
CONVDA1.B6
CONVDA1.B7
CONVDA1.B8
CONVDA1.B9
CONVDA1.B10
2
0
2
1
2
2
2
3
2
4
2
5
2
6
2
7
2
8
2
9
2
10
CONVDA1.B11
2
11
CONVDA1.B12
2
12
CONVDA1.B13
2
13
CONVDA1.B14
2
14
CONVDA1-SIGN
2
15
C1571
C1570/1
C1570/2
C1570/3
C1570/4
C1570/5
C1570/6
C1570/7
C1570/8
C1570/9
C1570/10
C1570/11
C1570/12
C1570/13
C1570/14
C1570/15
C1570/16
Fig. 3−102 Function block CONVDA1
Signal
Source Note
Name Type DIS DIS format CFG List
CONVDA1.B0 d − − C1570/1 2 −
CONVDA1.B1 d − − C1570/2 2 −
CONVDA1.B2 d − − C1570/3 2 −
CONVDA1.B3 d − − C1570/4 2 −
CONVDA1.B4 d − − C1570/5 2 −
CONVDA1.B5 d − − C1570/6 2 −
CONVDA1.B6 d − − C1570/7 2 −
CONVDA1.B7 d − − C1570/8 2 −
CONVDA1.B8 d − − C1570/9 2 −
CONVDA1.B9 d − − C1570/10 2 −
CONVDA1.B10 d − − C1570/11 2 −
CONVDA1.B11 d − − C1570/12 2 −
CONVDA1.B12 d − − C1570/13 2 −
CONVDA1.B13 d − − C1570/14 2 −
CONVDA1.B14 d − − C1570/15 2 −
CONVDA1−SIGN d − − C1570/16 2 Sign
HIGH
¢ negative sign
LOW
¢ positive sign
CONVDA1−OUT a − − − − −
− − C1571 hex − − Indicates the result
