Function library
Function blocks
3.5.40 Fixed setpoints (FIXSET)
3−202
l
EDSVS9332P−EXT DE 2.0
3.5.40 Fixed setpoints (FIXSET)
Purpose
This FB serves to program up to 15 fixed setpoints which can be retrieved via digital terminals or
control codes.
The fixed setpoints can e.g. be used for:
l different setpoint dancer positions for one dancer position control or
l different stretching ratios (gearbox factor) for a speed ratio control with digital frequency
coupling
C0560/1
C0560/15
C0560/2
C0563
DMUX
0
3
0
15
FIXSET1-IN1*1
FIXSET1...15
C0564/1
FIXSET1-AIN
FIXSET1-IN2*2
C0564/2
FIXSET1-IN3*4
C0564/3
FIXSET1-IN4*8
C0564/4
FIXSET1-OUT
FIXSET1
C0561
C0562/1
C0562/2
C0562/3
C0562/4

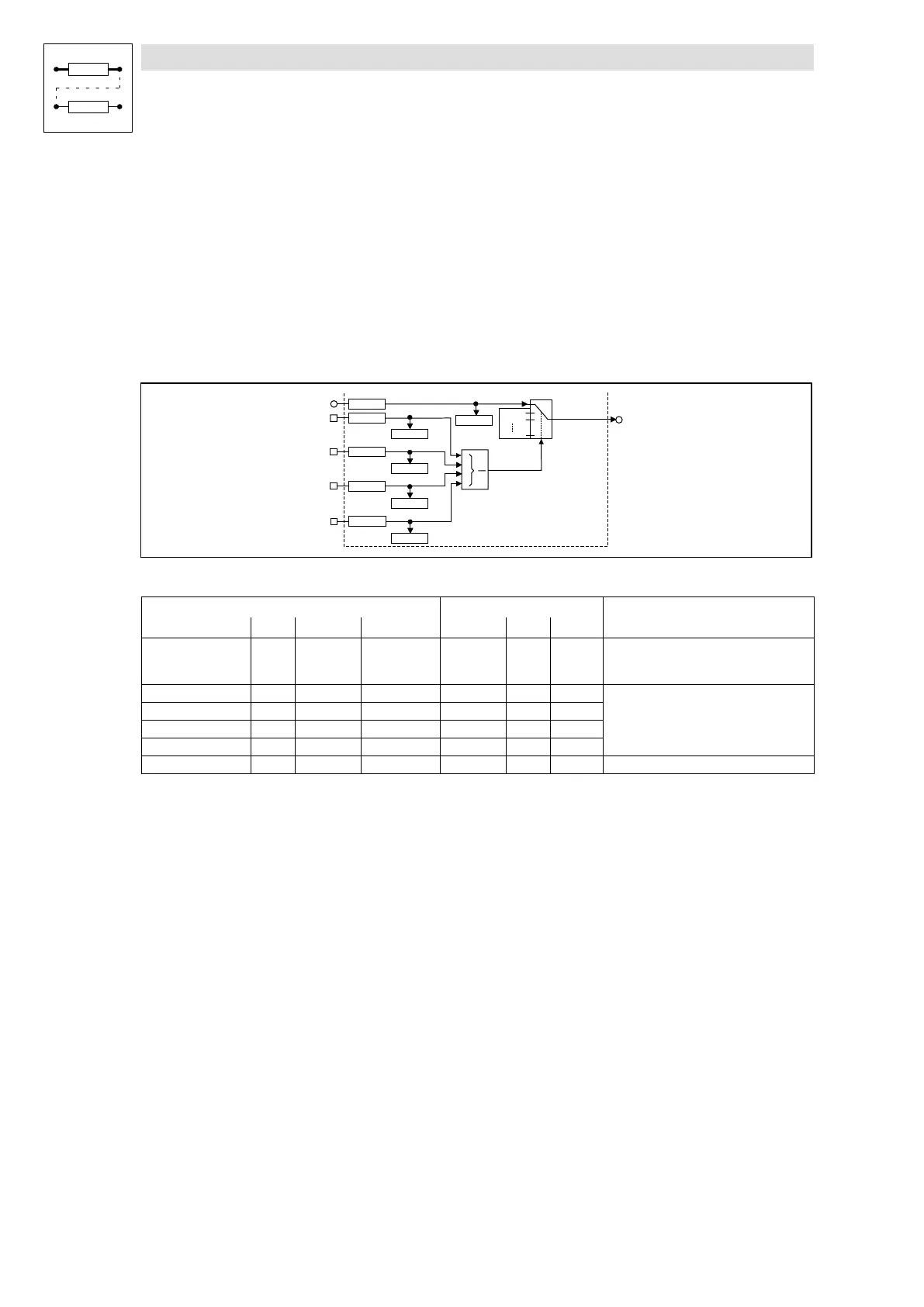

Fig. 3−154 Fixed setpoint (FIXSET1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
FIXSET1−AIN a C0563 dec [%] C0561 1 1000 The input is switched to the output if a LOW
level is applied to all selection inputs
FIXSET−INx.
FIXSET1−IN1*1 d C0564/1 bin C0562/1 2 1000
The number of the inputs to be assigned
depends on the number of the FIXSET
setpoints required.
FIXSET1−IN2*2 d C0564/2 bin C0562/2 2 1000
FIXSET1−IN3*4 d C0564/3 bin C0562/3 2 1000
FIXSET1−IN4*8 d C0564/4 bin C0562/4 2 1000
FIXSET1−OUT a − − − − −
Function
The FB output can be used as a setpoint source (signal source) for another FB (e.g. process controller,
arithmetic block etc.). Parameter setting and handling are similar to JOG but independent of JOG (cp.
FB NSET).
l Parameter setting of the fixed setpoints:
– The single fixed setpoints are parameterised via the subcodes of C0560.
l Output of the fixed setpoint selected:
– If the binary inputs are triggered with HIGH signal, a fixed setpoint from the table is switched
to the output.
l Value range:
– The values for the fixed setpoint can be set between −200% and +200%.
