Product informaon
Product descripon
When used in combinaon with servo motors, our sha-mounted helical gearboxes form a
compact, powerful and dynamic drive unit. Numerous opons at the input and output end
provide for the drive to be exactly adapted to your applicaon.
The slimline sha-mounted helical gearboxes are characterized by high permissible radial
forces, closely stepped speed reducon raos and a low backlash. They are available in a 2-, 3-
and 4-stage design with a torque of up to 4500 Nm and a rao of up to i= 5849.
Designs
•
Slimline design saves installaon space of the machine
•
Solid sha, hollow sha and shrink disc for direct integraon into the machine
•
High accuracy with axial output provide for the highest eciency
Synchronous servo motor m850 as basis for geared motor
In a power range of 2.0 to 9.2 kW, Lenze oers servo motors with an easily scalable modular
design.
The drives are designed for the open-loop or closed-loop controlled servo inverter operaon.
Medium dynamics and easy controllability via a favourable mass inera rao of the load to the
motor characterise these motors.
Customer benet
•
Easy controllability by an advantageous rao of the mass inera of the load and that of the
motor
•
High overload capacity of the motors
•
Easy assembly and easy servicing thanks to connectors with bayonet catch and rotatable
connector boxes
•
Reduced cabling thanks to one-cable technology in connecon with digital absolute value
encoders
•
High eciency
•
Space-saving thanks to compact direct aachment to Lenze gearboxes
•
Can be used universally for a wide range of machine tasks due to the market-oriented
modular system

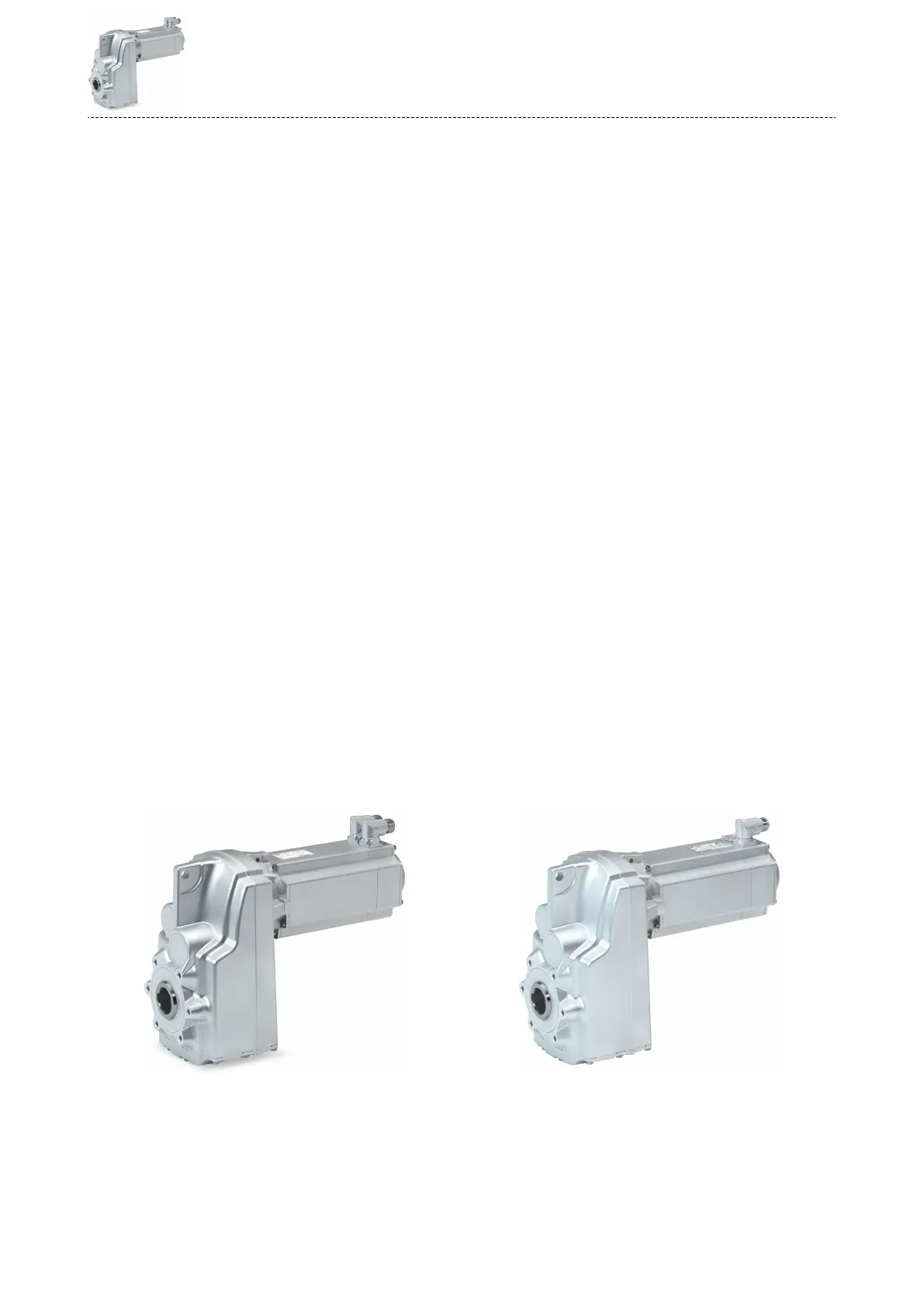

m850-S120/L3960 synchronous servo motor- g500-S660 sha-mounted
helical gearbox
m850-S120/L3960 synchronous servo motor- g500-S660 sha-mounted
helical gearbox with One Cable Technology (OCT) in connecon with a
digital absolute value encoder
Product informaon
Product descripon
7
