Mechanical installation
Mounting
Breather position, oil filling screw and drain plug
5
41
Lenze • BA 12.0023 • 9.0
5.3.11 Breather position, oil filling screw and drain plug

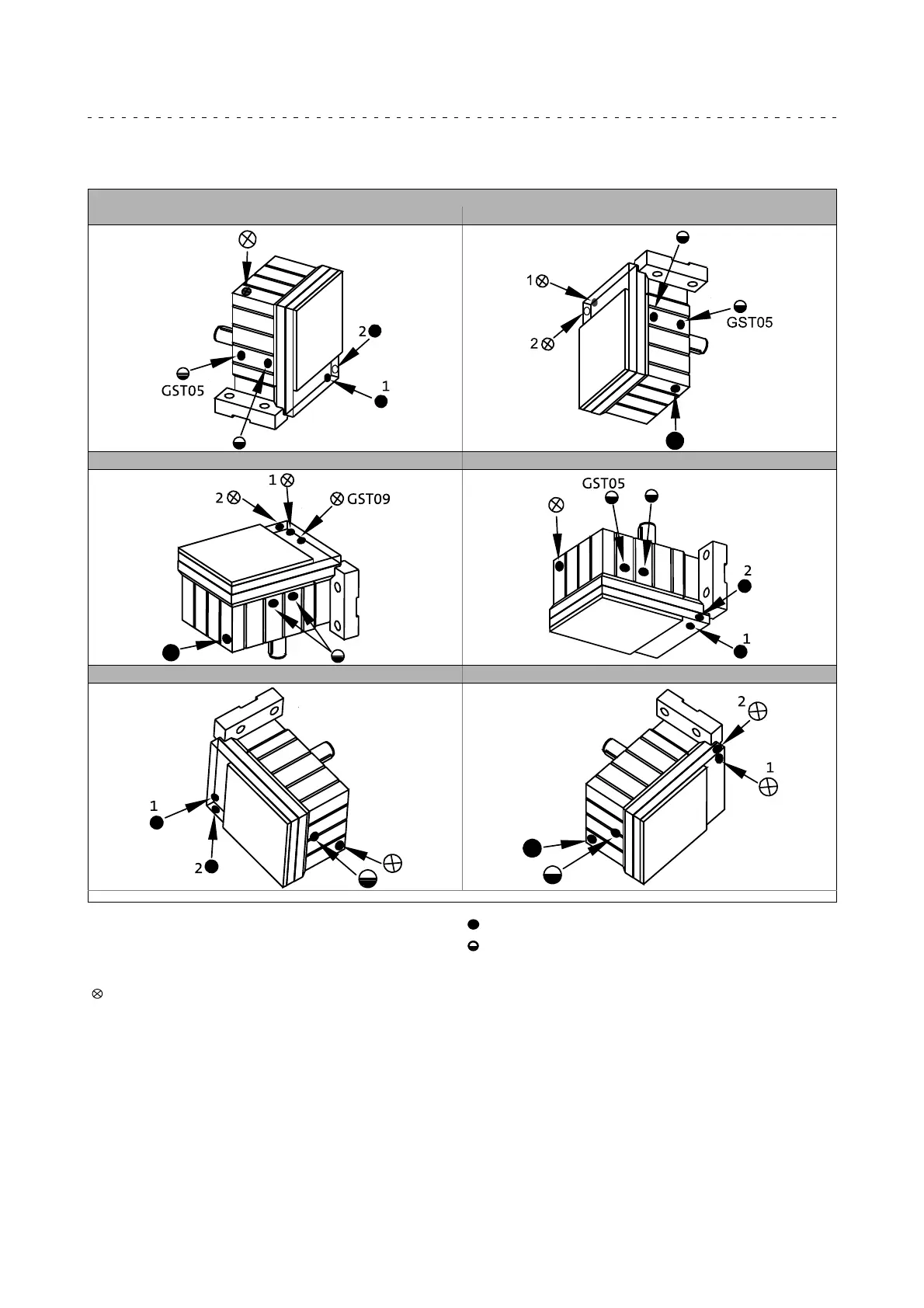

Helical gearbox GST 05 ... 09-1
A B
C D
E F
GT-GNG-GST-1-001_A-F.iso/dms
A...F Mounting positions Oil drain plug
*
On both sides Oil-control plug
**
On the opposite side Pos. 1 Standard
Breathing / oil filler plug Pos. 2 only
with:
GST05-1A 080C22
