MAKING CONNECTIONS

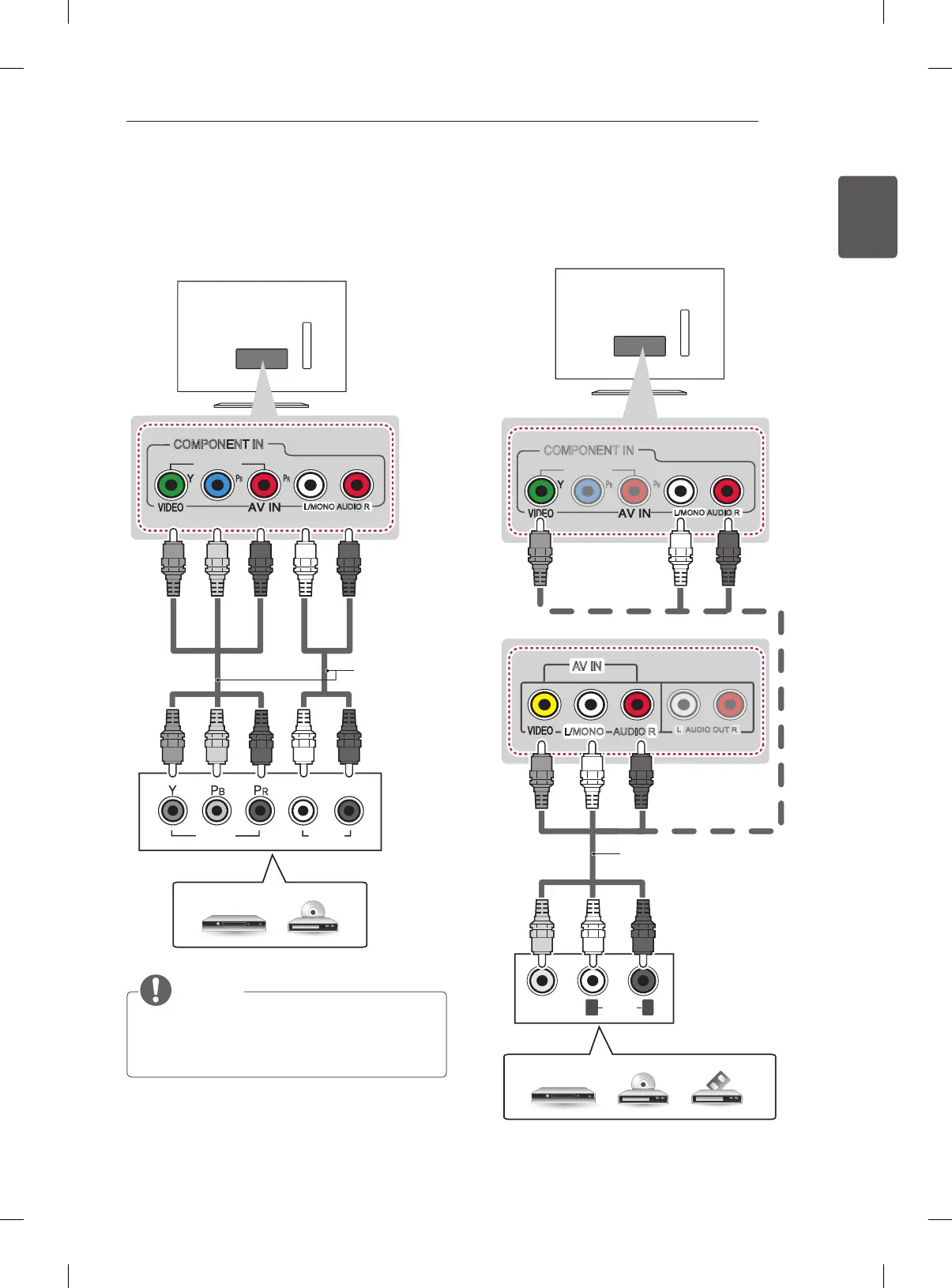

Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite cable as shown.
COMPONENT IN
L/MONO AUDIO R
VIDEO
R
T
AUDIO OUT
L
UDIO OU
R
AUDIO OUT
L
R
AUDIO OU
R
L/MONO
AUDIO R
AV IN
VIDEO(MONO)
AUDIO
L R
DVD/ Blu-Ray / HD Cable Box / VCR
YELLOW
YELLOW YELLOW
RED
RED RED
WHITE
WHITE WHITE
(*Not Provided)
(Only LN41**)
(Only LN405*)
Component connection
(Only LN41**)
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable as shown.
AUDIO
VIDEO
L R
COMPONENT IN
L/MONO AUDIO R
VIDEO
DVD/ Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE BLUE RED
RED
RED
RED
WHITE
WHITE
(*Not Provided)
NOTE

If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
