LG 32LK330 User Manual

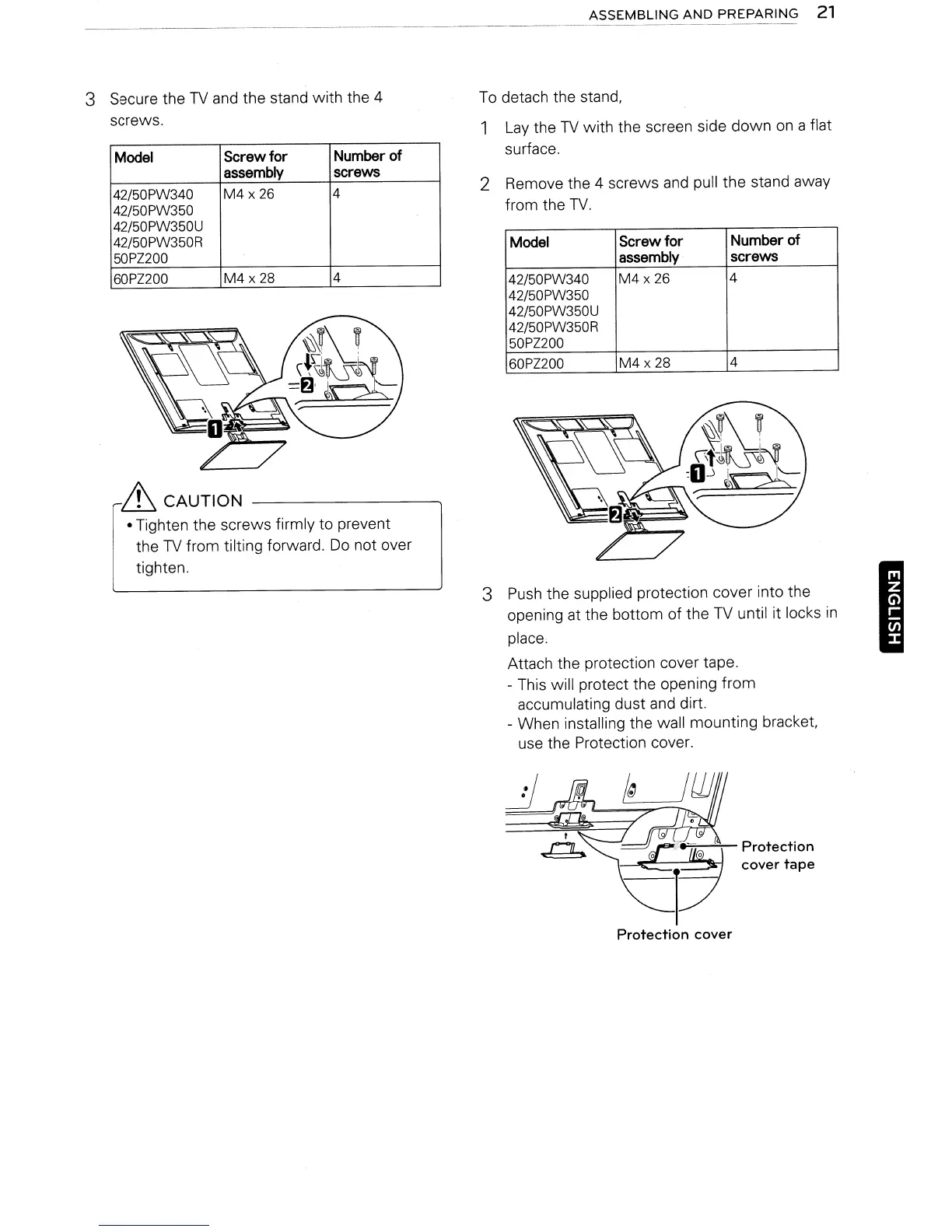

ASSEMBLING AND PREPARING 21
---------------
3 Secure the TV and the stand with the 4
screws.
Model Screw for Number of
assembly screws
42/50PW340 M4 x 26 4
42/50PW350
42/50PW350U
42/50PW350R
50PZ200
60PZ200
M4x28 4
& CAUTION
• Tighten the screws firmly to prevent
the
TV from tilting forward. Do not over
tighten.
To detach the stand,
1 Lay the TV with the screen side down on a flat
surface.
2 Remove the 4 screws and pull the stand away
from the
TV.
Model Screw for
Number of
assembly screws
42/50PW340
M4 x 26 4
42/50PW350
42/50PW350U
42/50PW350R
50PZ200
60PZ200
M4 x 28
4
3 Push the supplied protection cover into the
opening at the bottom of the
TV until it locks in
place.
Attach the protection cover tape.
- This will protect the opening from
accumulating dust and dirt.
- When installing the wall mounting bracket,
use the Protection cover.
I
Protection
cover tape
Protection cover

LG 32LK330 Specifications

General

Product color	Black
Power requirements	100 - 240 V, 50/60 Hz
Annual energy consumption	132 kWh
Response time	5.2 ms
Display diagonal	32 \
Display resolution	1366 x 768 pixels
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	60 Hz
Contrast ratio (dynamic)	30000:1
Display diagonal (metric)	80 cm
Screen format adjustments	4:3
Audio formats supported	MP3
Video formats supported	DivX
AV input	2
HDMI ports quantity	3
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	1
Sustainability certificates	ENERGY STAR
Power consumption (standby)	0.3 W
Power consumption (typical)	91 W
RMS rated power	20 W
Handheld remote control	No

Weight and Dimensions

Depth (with stand)	207 mm
Width (with stand)	800 mm
Height (with stand)	565 mm
Weight (with stand)	9200 g
Depth (without stand)	74 mm
Height (without stand)	509 mm
Weight (without stand)	8200 g
