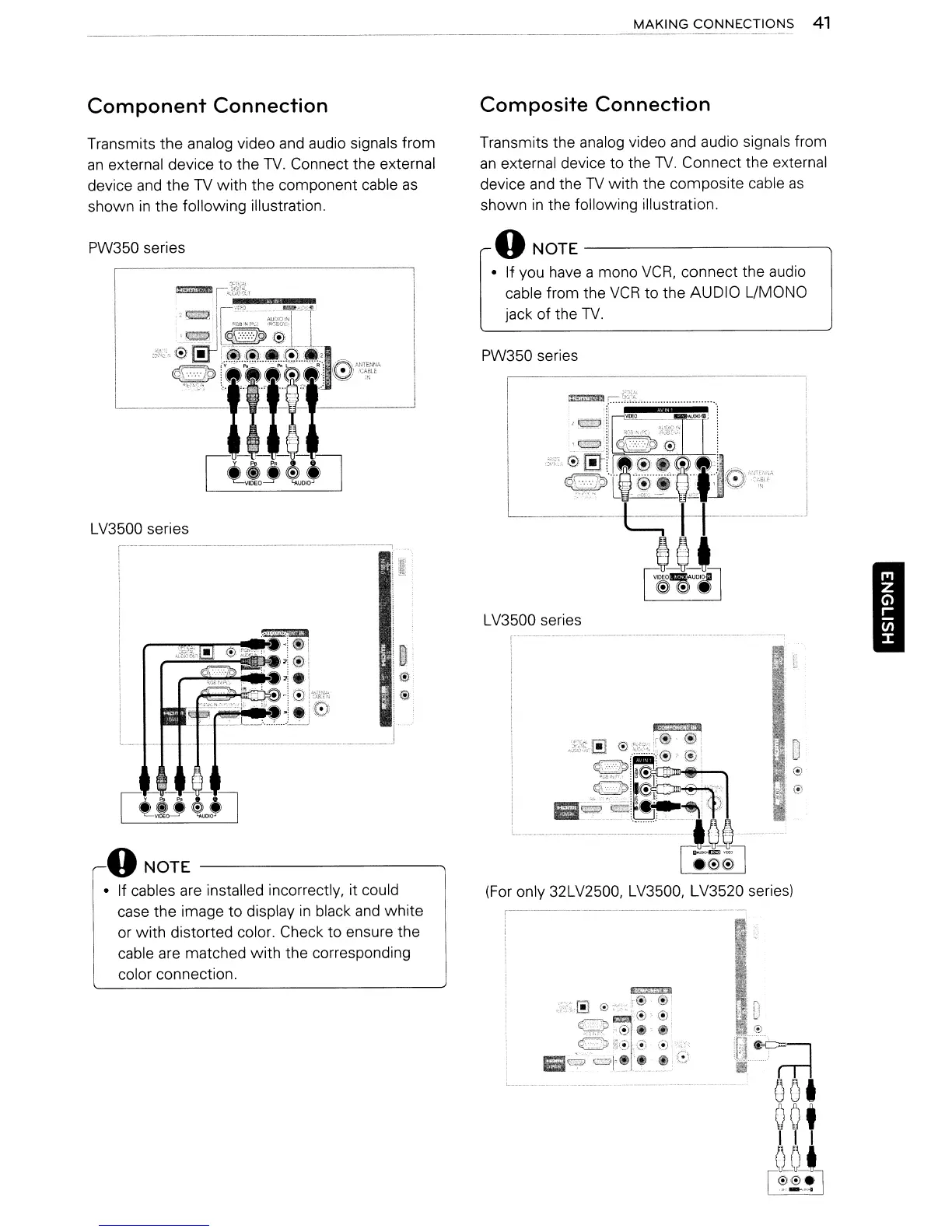

MAKING
CONNECTIONS
41
Component
Connection
Composite
Connection
, 0
PW350 series
I
L...-..
I--_-+--I-
~~
oNOTE
-----------..
If you have a mono
VCR,
connect the audio
cable from the
VCR
to the AUDIO L/MONO
jack of the
TV.
(For only 32LV2500, LV3500, LV3520 series)
LV3500 series
Transmits the analog video and audio signals from
an
external device to the
TV.
Connect the external
device and the
TV
with the composite cable
as
shown
in
the following illustration.
oNOTE
----------~
If cables are installed incorrectly, it could
case the image to display
in
black
and
white
or with distorted color. Check to ensure the
cable are matched
with
the corresponding
color connection.
LV3500 series
PW350 series
Transmits the analog video and audio signals from
an
external device to the
TV.
Connect the external
device
and
the
TV
with
the component cable
as
shown
in
the following illustration.
