MAKING CONNECTIONS
MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers,
DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external
devices. For more information on external device’s connection, refer to the manual provided with
each device.

If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal
input cable to the TV through a DVD recorder or VCR. For more information of recording, refer
to the manual provided with the connected device.

The external device connections shown may differ slightly from illustrations in this manual.

Connect external devices to the TV regardless of the order of the TV port.

If you connect a gaming device to the TV, use the cable supplied with the gaming device.

Refer to the external equipment’s manual for operating instructions.
NOTE

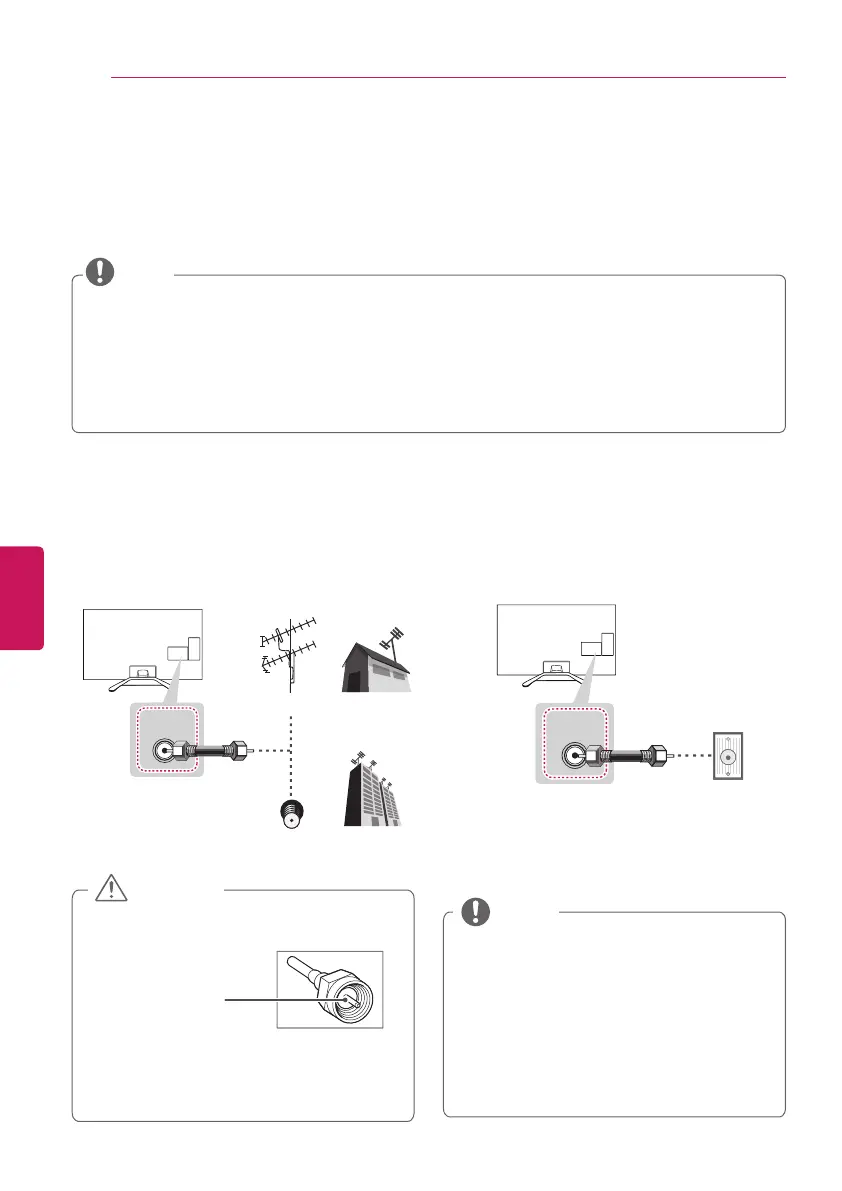

Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV while referring to the following. The illustrations
may differ from the actual items and a RF cable is optional.
Connecting to a HD receiver, DVD Player, or VCR
Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.
Transmits the digital video and audio signals from an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown in the following illustration.
2 1
(ARC)
3
(MHL)
HDMI
/DVI IN
Choose any HDMI input port to connect.
It does not matter which port you use.
or
ANTENNA
IN
CABLE
IN
VHF Antenna
UHF Antenna
Antenna
Coaxial (75Ω)
Terminal
(*Not Provided)
ANTENNA
IN
CABLE
IN
Coaxial (75Ω)
Wall Jack
(*Not Provided)

Make sure not to bend the copper wire
of the RF cable.

Complete all connections between
devices, and then connect the power
cord to the power outlet to prevent
damage to your TV.
CAUTION
Copper wire

To improve the picture quality in a poor
signal area, please purchase a signal
amplifier and install properly.

Use a signal splitter to use more than 2
TVs.

If the antenna is not installed properly,
contact your dealer for assistance.

DTV Audio Supported Codec: MPEG,
Dolby digital, AAC, HE-AAC
NOTE

LG 42LA6600 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	42 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Edge-LED
Supported video modes	1080i, 1080p, 720p
Screen format adjustments	4:3, 14:9, 16:9, Zoom
Motion interpolation technology	MCI (Motion Clarity Index) 400
3D	Yes
Supported 3D technologies	FPR 3D
Analog signal format system	NTSC M, PAL BG, PAL DK, PAL I, SECAM B/G, SECAM D/K
Digital signal format system	-
Smart modes	Cinema, Game, Standard, Vivid
Sound modes	Dynamic, Movie, Music, Standard
Audio system	Virtual Surround Plus
Audio decoders	Dolby Digital, DTS
DVI port	No
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Consumer Electronics Control (CEC)	SimpLink
Audio formats supported	AAC, MP3
Video formats supported	DIVX HD
Product color	Black
Power consumption (standby)	- W
