LG 42LB1DR User Manual

Cable CARD
AVN2
L MONO
R
AV OUT
Connect a second TV or monitor.
AV
(Audio/Video)
IN 1
Connect
audio/video
output
from an external
device to these
jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
COMPONENT IN
Connect a
component
video/audio
device to
these
jacks.
HDMI IN
Connect a HDMI
signal
to
1(DVI)
or 2.
Or
DVI(VIDEO)signal
to the
1(DVI)
port
with a DVI to HDMI cable.
DIGITAL AUDIO OUT
Connect
digital
audio from various
types
of
equipment.
Note: In
standby
mode,
these
ports
do not work.
RS-232C IN
(CONTROL
&
SERVICE)
PORT
Connect to the RS-232C
port
on a PC.
ANTENNA IN
Connect over-the air
signals
to this
jack.
CABLE IN
Connect cable
signals
to this
jack.
RGB/AUDIO
IN
Connect the monitor
output
from a PC to the
appropriate input port.
Remote Control Port
Connect
your
wired remote control.
Power Cord Socket
For
operation
with AC
power.
Caution :
Never
attempt
to
operate
the TV on DC
power.
Back Connection Panel
This is the back
panel
of models
50PC1DR,
50PC1DRA series TVs.

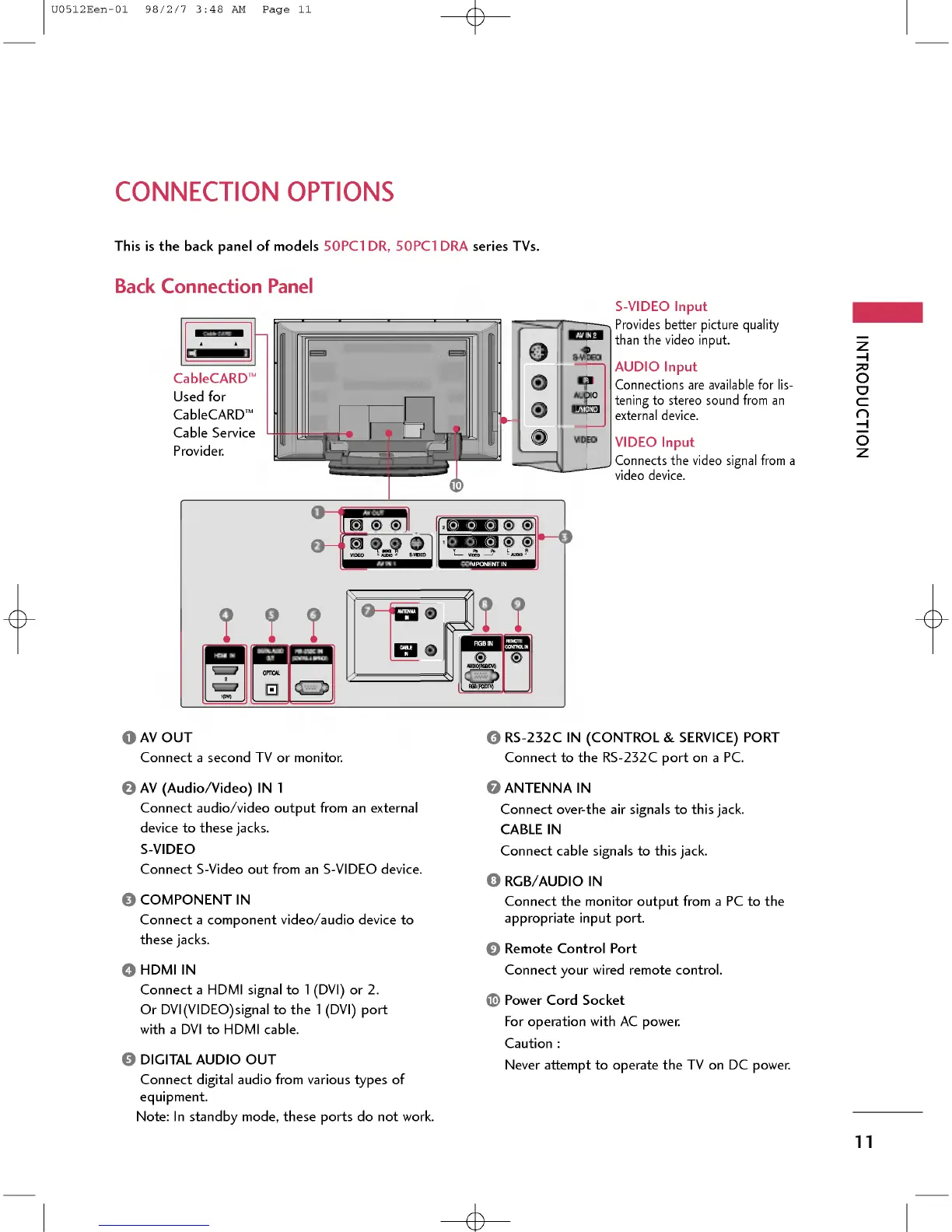

INTRODUCTION
11
CONNECTION OPTIONS
S-VIDEO
Input
Provides better
picture quality
than the video
input.
AUDIO
Input
Connections are available for lis-
tening
to stereo sound from an
external device.
VIDEO
Input
Connects the video
signal
from a
video device.
CableCARD
TM
Used for
CableCARD
TM
Cable Service
Provider.
U0512Een-01
98/2/7
3:48 AM
Page
11
