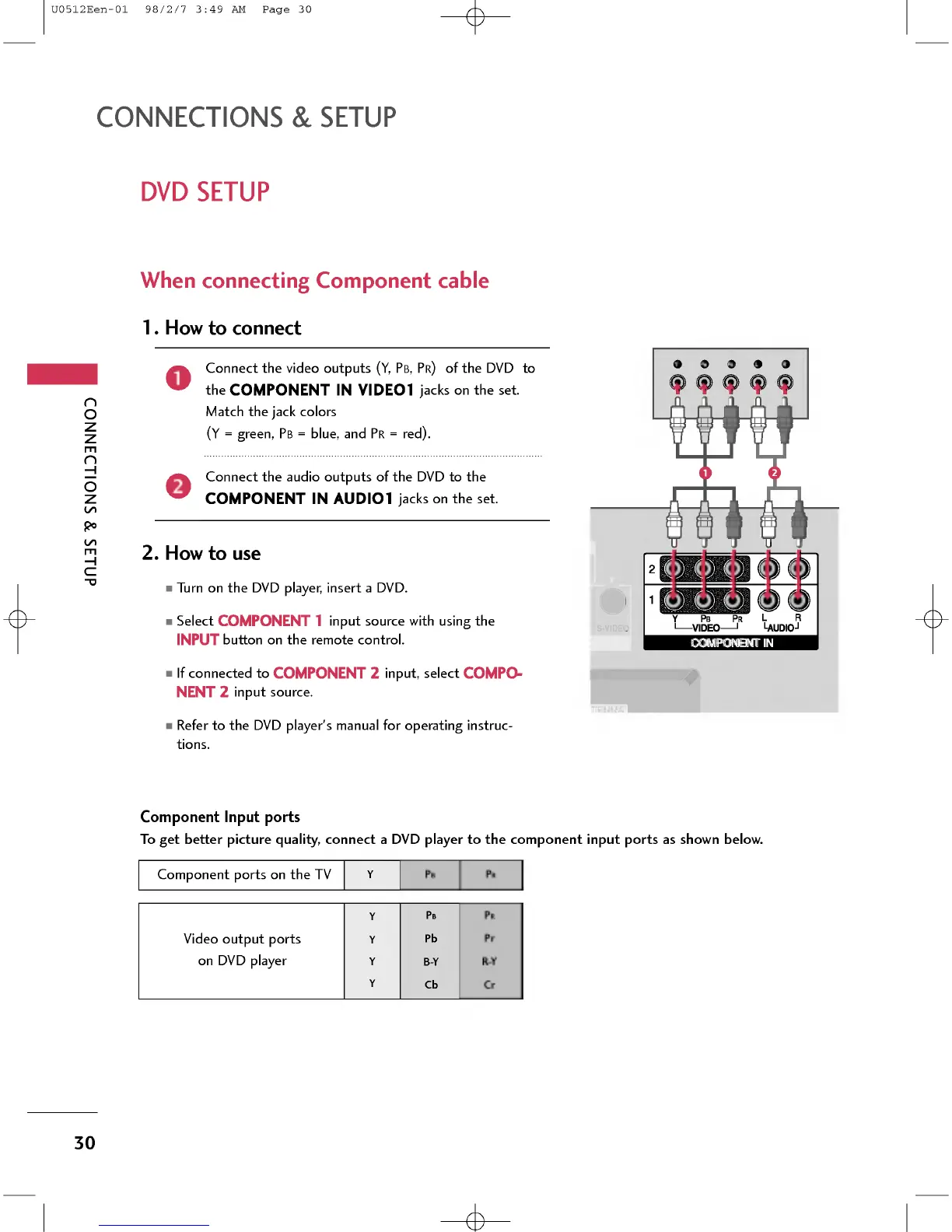

CONNECTIONS & SETUP
30
DVD
SETUP
CONNECTIONS & SETUP
Component Input ports
To
get
better
picture quality,
connect a DVD
player
to the
component input ports
as shown below.
Component ports
on the TV
YP B PR
Video
output ports
on DVD
player
Y
Y
Y
Y
PB
Pb
B-Y
Cb
PR
Pr
R-Y
Cr
Y L R PB PR
S-VIDEO
NTENNA
VIDEO
COMPONENT
When
connecting
Component
cable
Connect the video
outputs
(
Y, PB,
PR
)
of the DVD to
theCOMPO
D
O
jacks
on the set.
Match the
jack
colors
(
Y=green,PB=blue,andPR=red
)
.
Connect the audio
outputs
of the DVD to the
COMPO
UD
O
jacksontheset.
1.
How to connect
2.
How to use
Turn on the DVD
player,
insert a DVD.
Select
COMPO
input
source with
using
the
P
U
button on the remote control.
If connected to
COMPO
input,
select
COMPO
input
source.
Refer to the DVD
player's
manual for
operating
instruc-
tions.
2
1
U0512Een-01
98/2/7
3:49 AM
Page
30
