LG 42LK530 User Manual

IR CODES
'HSHQGLQJRQPRGHO
How to Connect
&RQQHFW\RXUZLUHGUHPRWHFRQWUROWRWKH5HPRWH&RQWUROSRUWRQWKH79

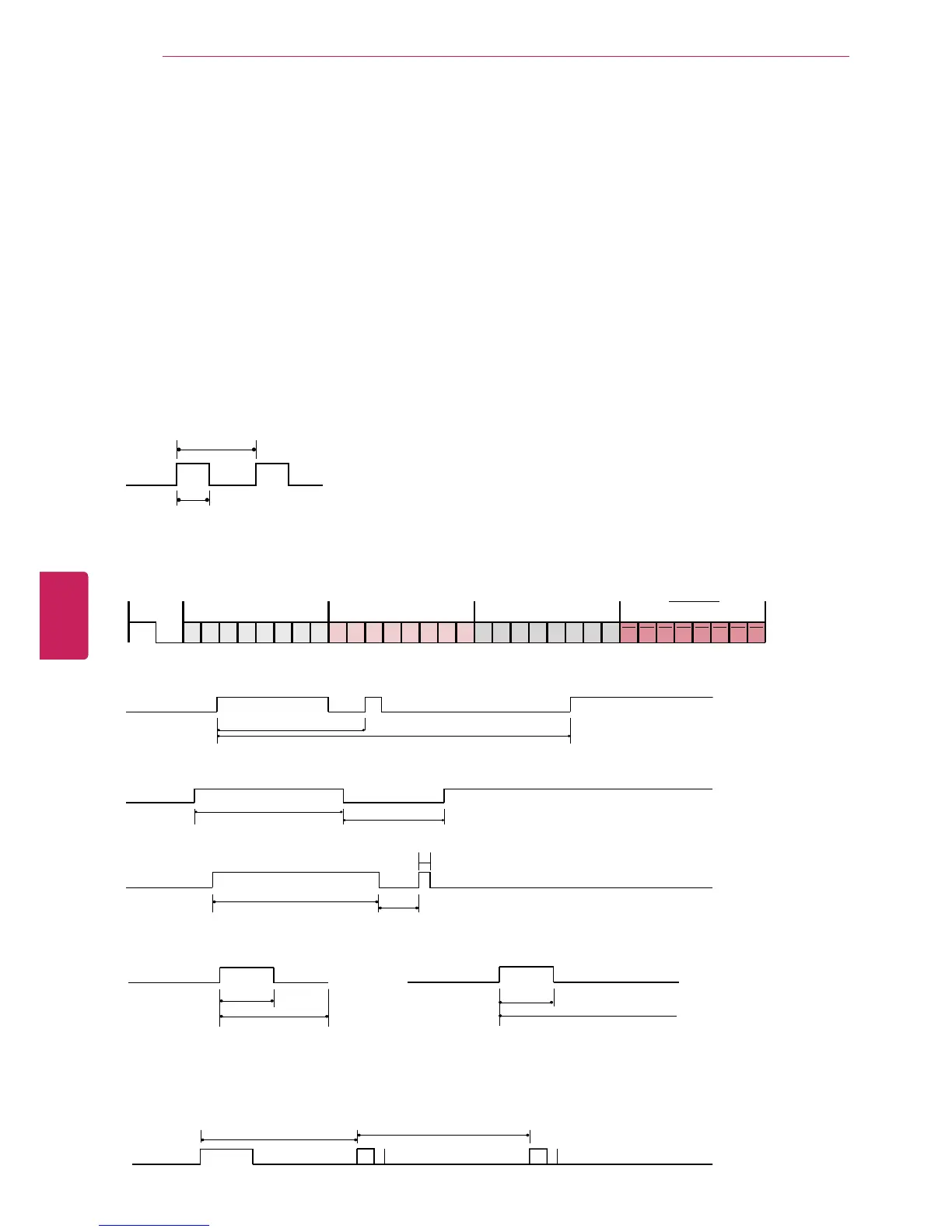

Remote Control IR Codes
Output waveform
6LQJOHSXOVHPRGXODWHGZLWKN+]VLJQDODWN+]
T1
Tc
Frame configuration
VWIUDPH
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
5HSHDWIUDPH
Repeat code
Tf
Lead code
4.5 ms
9 ms
Repeat code
2.25 ms
9 ms
0.55 ms
Bit description
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Bit “0” Bit “1”
Frame interval: Tf
7KHZDYHIRUPLVWUDQVPLWWHGDVORQJDVDNH\LVGHSUHVVHG
Tf Tf
Tf=108ms @455KHz
124
ENG
ENGLISH
IR CODES

LG 42LK530 Specifications

General

Audio system	Dolby Digital
RMS rated power	20 W
Number of speakers	2
Game mode	Yes
Number of OSD languages	31
Response time	2.4 ms
Display diagonal	32 \
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Supported video modes	1080i, 1080p
Display diagonal (metric)	107 cm
Supported graphics resolutions	1920 x 1080 (HD 1080)
RS-232 ports	1
Composite video out	0
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Annual energy consumption	197 kWh
Product color	Black
Power consumption (standby)	0.28 W
Power consumption (typical)	135 W
Wi-Fi	No
