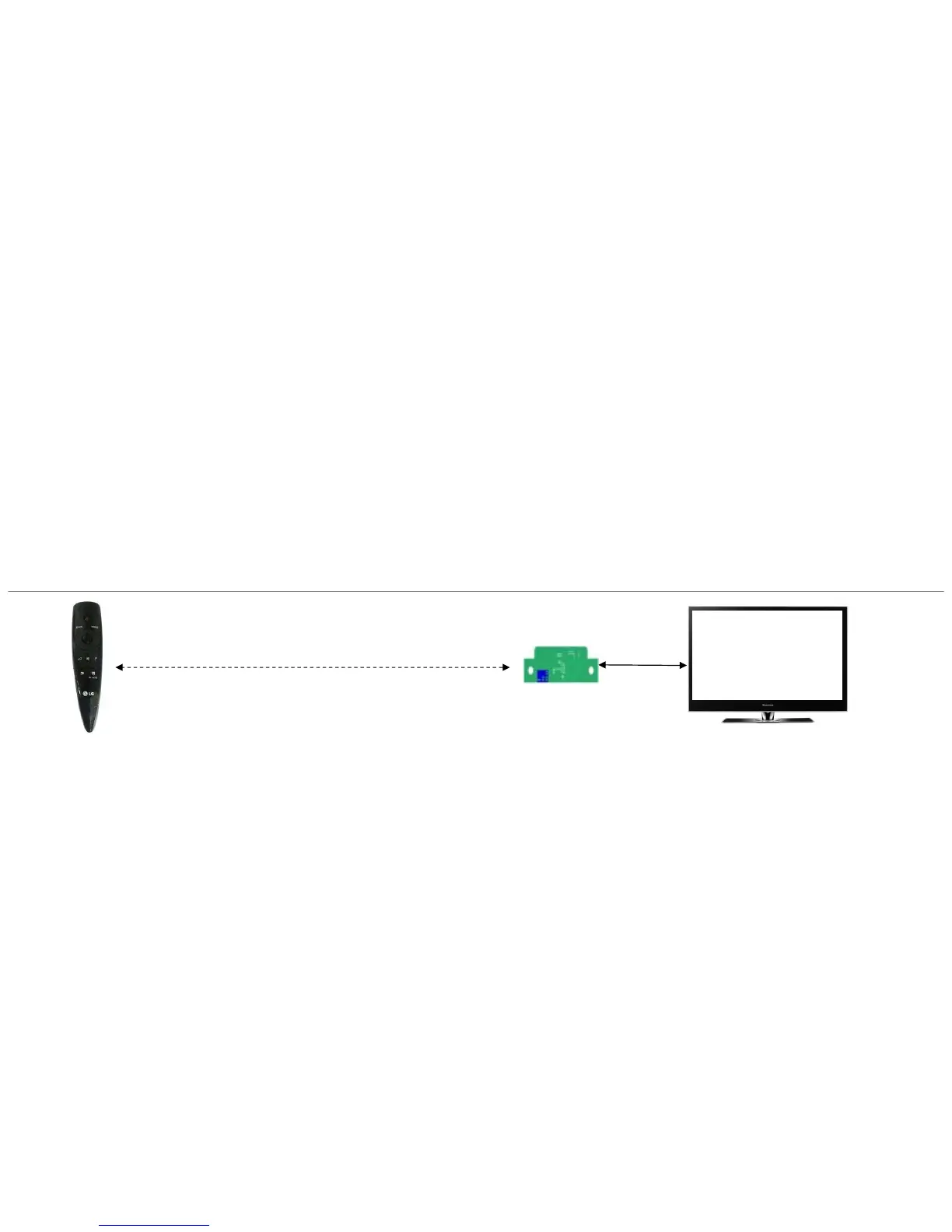

1. System
Remote
RF Receiver
TV
UART
or USB
RF
Pairing Information Transmission (Send to TV after Paired)
• Static Calibration Data (Bypass only)
• Remote FW ver. (Save also in Receiver)
• BD_ADDR (Save also in Receiver)
• Pairing Information Transmission Sequence
• When it is paired, the remote sends packets(pairing success, F/W version, BD_ADDR) to the receiver.
• The receiver sends the pairing success packet to TV directly.
• F/W version and BD_ADDR packets are just saved on the receiver.
• The receiver sends F/W version or BD_ADDR packet to TV when it is required.
Motion Data Transmission
• Period : 7.5msec
• Motion Data : gyro, accelerometer
Voice Data Transmission
• Period : 10msec
• Voice sampling : 16khz 16bit
Æ See “6-2. Packets” on page 8.
