- 6 -
ADJUSTMENT INSTRUCTION
1. Application Object
These instructions are applied all of the 42” PLASMA TV,
PP78A Chassis.
2. Note
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
(2) Adjustment must be done in the correct order.
(3) The adjustment must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver must keep 100-220V~,
50/60Hz.
(5) Before adjustment, execute Heat Run for 30 minutes.
3. Adjustment items
3.1. PCB assembly adjustment items
(1) Download the VCTP main software (IC500,VCT_Pro)
(2) Channel memory (IC501,EEPROM)
(3) Color carrier Adjustment
3.2. SET assembly adjustment items
(1) DDC Data input.
(2) Adjustment of White Balance.
(3) Factoring Option Data input.
4. PCB assembly adjustment method
(Using VCTP Download program)

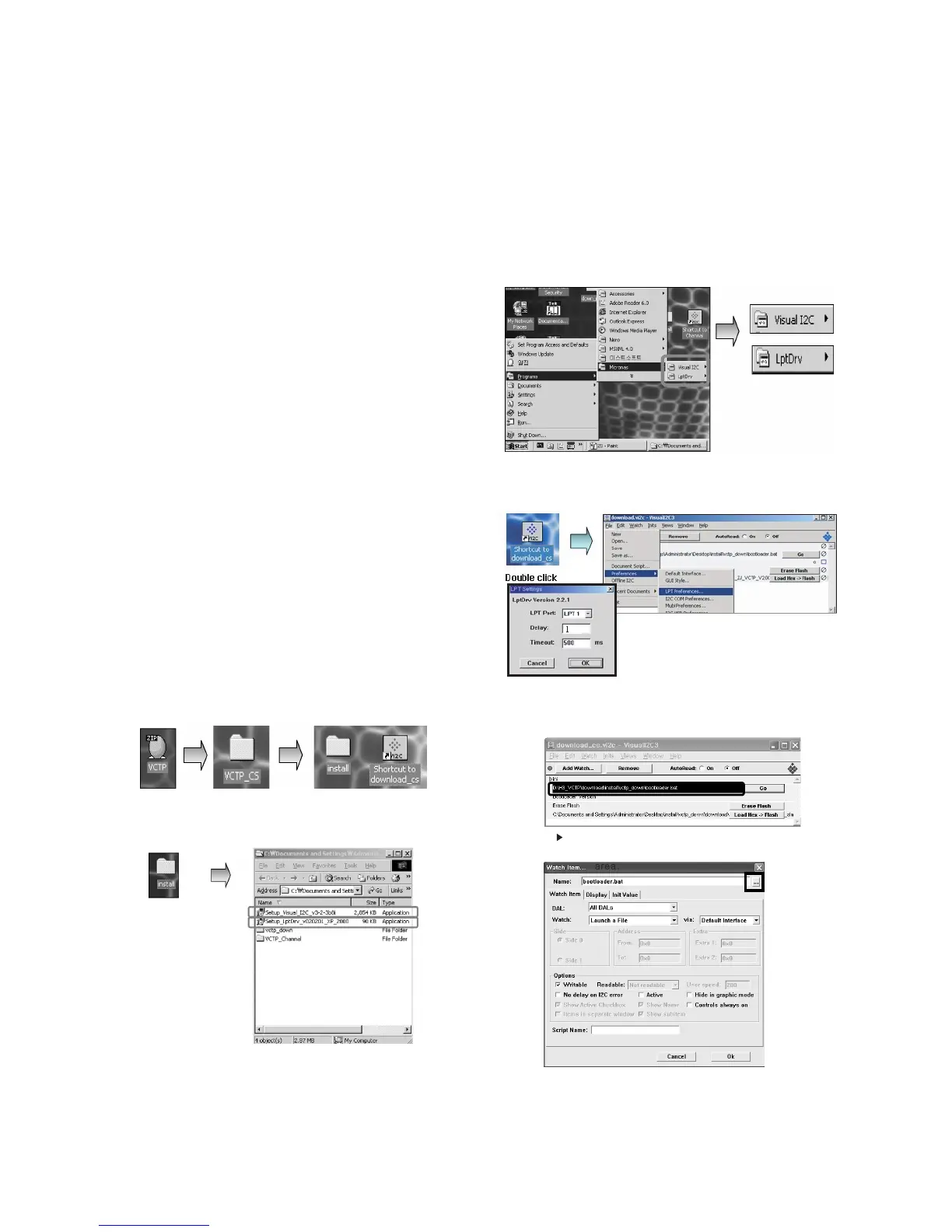

4-1. Download program installation
(1) Extract a Zip file.
(2) Visual I2C & LPT Driver Installation.
LPT Port Driver (LptDrv) Setups : Program Files > Micronas >
Visual I2C > Port_Driver
*Use for Windows 95/98 : Setup_LptDrv_v0104_9x.exe
*Use for Windows 2000/XP : Setup_LptDrv_v0202_XP_2000.exe
*
Use for Windows NT : Setup_LptDrv_v0104_NT.exe
(3) Verification.(Start > Programs > Micronas > Visual I2C or
LptDrv)
(4) LPT delay setting.(File > Preference > LPT preferences)
(5) Exchange the “bootloader.bat” file.
To Next Page
