ENGLISH
16
Connecting the Speak
er
s
-
F
or certain models only
.
-
The image may be different ac
cor
ding to the model.
32SM5D
1
Connect an input signal cable befor
e installing the speakers.
2

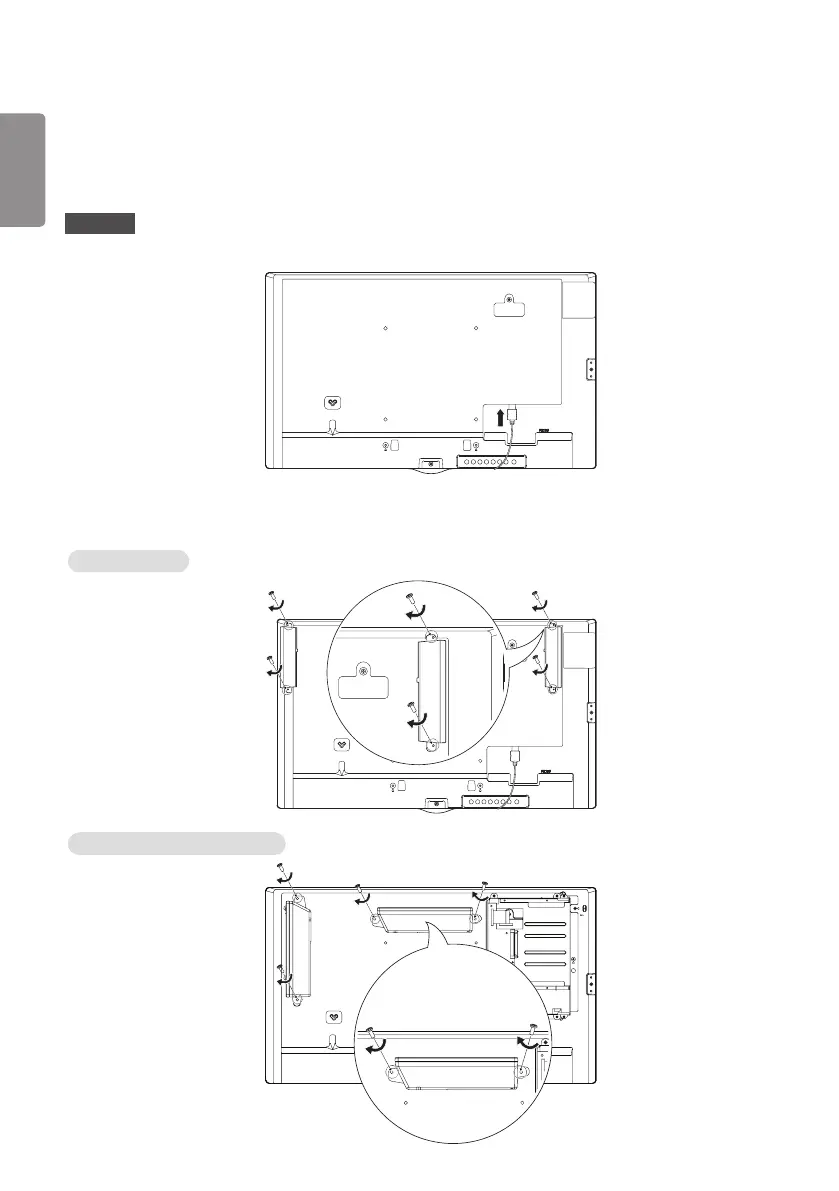

Mount the speaker
s by using screws as shown below
. Make sur
e the power cable is disc
onnected before making a
connection.
Basic installation
Installation with OPS connected
15
17
Table of Contents
Table of Contents
2
Important Precautions
3
Electrical Power Related Precautions
3
Precautions for Installing the Product
5
Precautions for Moving the Product
6
Precautions for Using/Cleaning the Product
7
Product Disposal (Only, Hg Lamp Used LCD Monitor)
7
Licenses
8
Assembly and Preparation
9
Optional Accessories
10
Parts and Buttons
12
Assembling the Memory Cover
13
Connecting the Stand
14
Connecting the Speakers
16
Connecting the IR Sensor
19
Portrait Layout
20
Attaching and Removing the LG Logo Bracket
21
Installing on a Wall
23
Remote Control
25
Making Connections
27
Connecting to a PC
27
External Device Connection
27
Using the Input List
29
Troubleshooting
30
Product Specifications
33
User Guide Lg Digital Signage
44
Home
46
Settings
46
[Content Manager]
46
[Global Buttons]
46
Ez Setting
47
[On/Off Scheduler]
47
[SI Server Setting]
47
[Video Wall]
47
[Fail Over]
48
[Server Setting]
48
[Status Mailing]
48
[Play Via URL]
50
[Setting Data Cloning]
50
[Sync Mode]
50
[Signage 365 Care]
51
[Multi Screen]
52
General
53
[Set ID]
53
[System Information]
53
[Time & Date]
53
Display
67
[Picture Mode]
67
[Aspect Ratio]
70
[Expert Controls]
71
Sound
73
[Sound Mode]
73
[Sound Out]
74
[Audio Out]
75
[AV Sync. Adjust]
75
[Digital Audio Input]
75
[Volume Increase Amount]
75
Admin
76
[Lock Mode]
76
[Change PIN Code]
77
[Enterprise Settings]
77
[Factory Reset]
77
[Reset to Initial Settings]
77
Content Manager
78
Web Login
78
Group Manager 2.0
85
Screenshare
88
Control Manager
89
Management Tools
89
Picture ID
90
Touch
91
Touch Assistive Menu
91
IDB (Interactive Digital Board)
92
Ir Code
93
Connecting Cables
95
Controlling Multiple Products
95
Communication Parameter
96
Command Reference List
97
[Power on Status]
99
Transmission/Reception Protocol
101
Power on Status]
113
Wired [Wake on LAN] F W
113
Content Rotation] S N
114
Content Sync]
114
Intelligent Auto]
114
LAN Daisy Chain] S N
114
OSD Rotation]
114
Time Sync] S N
114
Brightness Scheduling
115
Brightness Scheduling] Mode S M
115
Scan Inversion] S N
115
Aspect Ratio] (Multi Screen) X D
116
Multi Screen] Mode & Input X C
116
Screen off Always] S N, 0D
116
Screen Video Freeze
116
HDMI IT Contents] S N
117
OSD Lock
117
Wireless [Wake on LAN] S N
117
[On/Off Time Scheduling] N, 9A
117
Holiday Setting]
118
Upnp] Mode S N, 9C
118
Backup Via Storage] S N, A1
119
Home Dashboard Lock] S N, 9D
119
Screen Share Lock] S N, A0
119
USB Lock] S N, 9E
119
Wi-Fi Lock]
119
Booting Logo Image] S N, A3
120
Change PIN Code] S N, A7
120
Clear Panel Noise] S N, A6
120
Natural Size] S N, A5
120
Softap] Mode S N, A4
120
[Digital Audio Input] N, A2
120
Audio Out]
121
DPM Wake up Control] S N, 0B
121
Fan Failure Check
121
Play Internal Storage Media S N, A8
121
[No Signal Image] N, A9
121
Apply to All Inputs] S N
122
Frame Control]
122
Multichannel
122
Other manuals for LG 49SM5KD
Service Manual
46 pages
Manual
8 pages
Easy Setup Guide
52 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the LG 49SM5KD and is the answer not in the manual?
Ask a question
LG 49SM5KD Specifications
General
Brand
LG
Model
49SM5KD
Category
Digital Signage
Language
English
Related product manuals
LG 49SM5KE
135 pages
LG 49SM5KB
129 pages
LG 49SM5D
123 pages
LG 49SM5B
129 pages
LG 49SM5C
45 pages
LG 49SM5E
135 pages
LG 49SE3D
135 pages
LG 49SH7PE
111 pages
LG 49SE3KD
135 pages
LG 49SE3KB
85 pages
LG 49SH7DB
84 pages
LG 49SH7DB-M.AHK
84 pages
