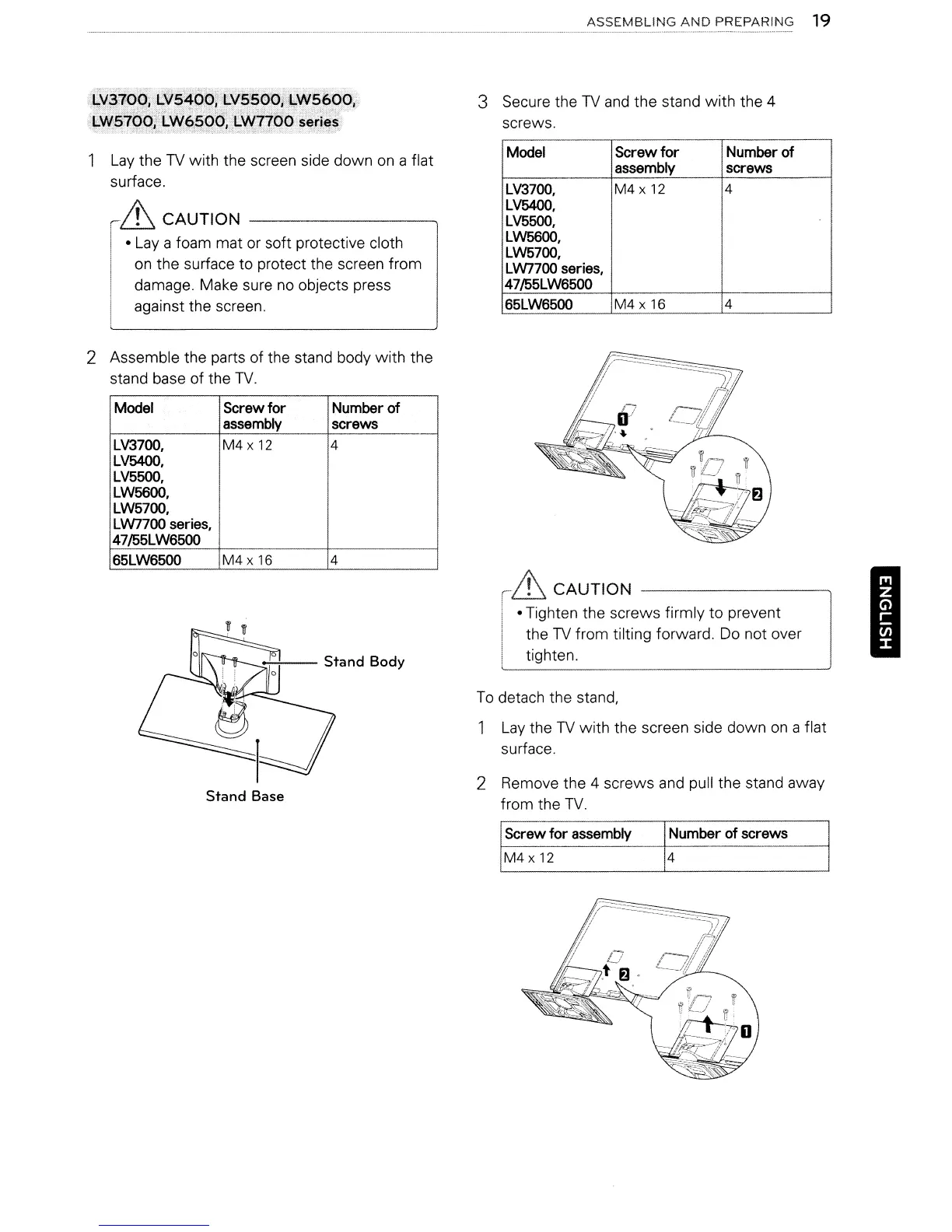

"'-1
··4V~"
,t;Wf"{
1
Lay
the
TV
with the screen side down
on
a flat
surface.
1&
CAUTION
I •
Lay
a foam mat or soft protective cloth
I
;
on
the surface to protect the screen from
damage. Make sure
no
objects press
against the screen.
2 Assemble the parts of the stand body with the
stand base of the
TV.
Model
Screw
for
Number
of
assembly
screws
LV3700,
M4
x
12
4
LV5400,
LV5500,
LW5600,
LW5700,
LW7700
series,
47/55LW6500
65LW6500
M4
x
16
4
V---..!'i-+--
Stand Body
Stand Base
ASSEMBLING
AND
PREPARING 19
3 Secure the
TV
and
the stand with the 4
screws.
Model
Screw
for
Number
of
assembly
screws
LV3700.
M4x
12
4
LV5400.
LV5500,
LW5600.
LW5700,
LW7700
series.
47/55LW6500
65LW6500
M4x
16
4
r&
CAUTION
• Tighten the screws firmly to prevent
the
TV
from tilting forward.
Do
not over
tighten.
To
detach the stand,
1
Lay
the
TV
with the screen side down
on
a flat
surface.
2 Remove the 4 screws and pull the stand away
from the
TV.
I
Screw
for
assembly
M4x
12
Number
of
screws
4
