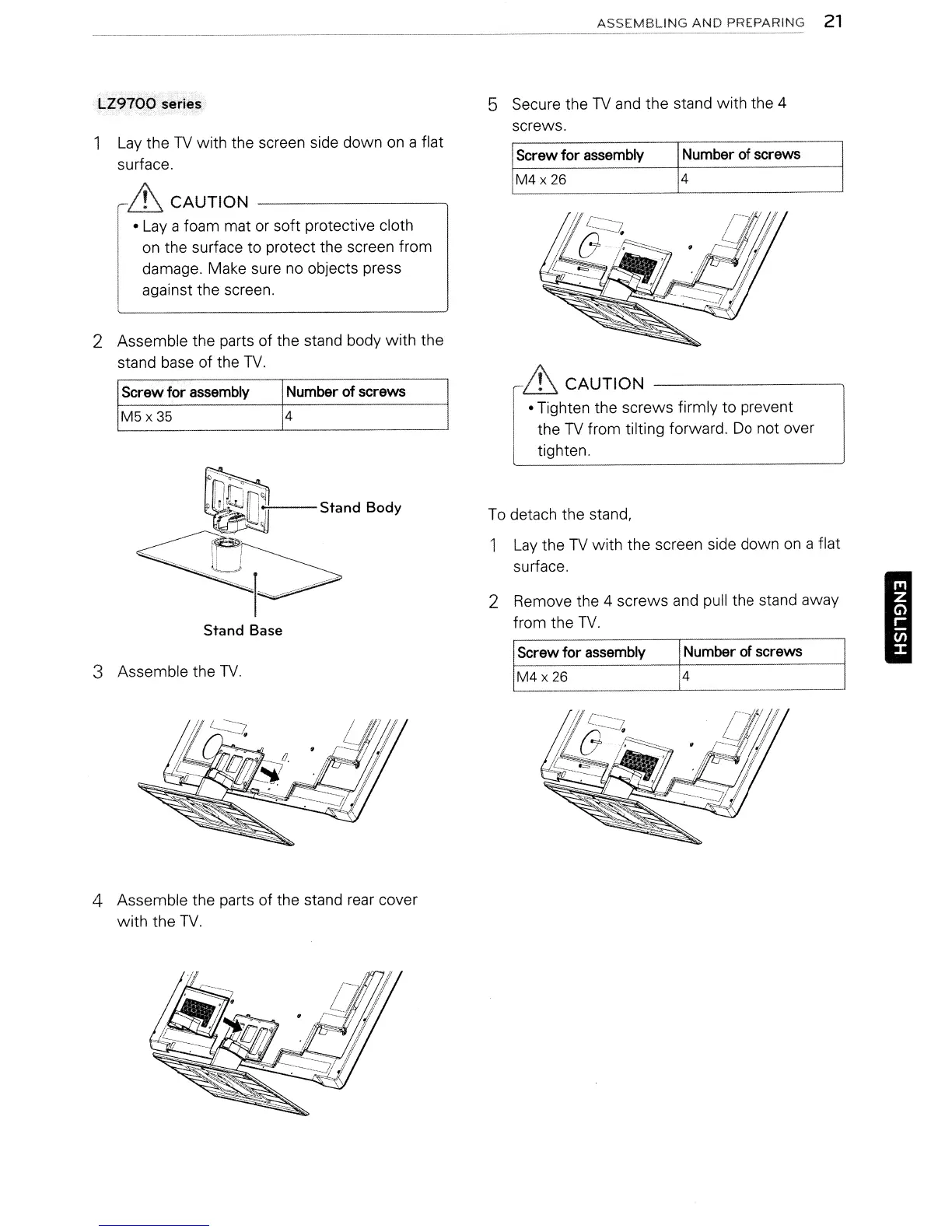

ASSEMBLING
AND
PREPARING
21
----
LZ9700
series
2 Assemble the parts of the stand body with the
stand base of the
TV.
1
Lay
the
TV
with the screen side down
on
a flat
surface.
& CAUTION
-------........,
•
Lay
a foam mat or soft protective cloth
on the surface to protect the screen from
damage. Make sure no objects press
against the screen.
Number
of
screws
4
~CAUTION
• Tighten the screws firmly to prevent
the
TV
from tilting forward.
Do
not over
tighten.
Screw
for
assembly
M4x26
5 Secure the
TV
and the stand with the 4
screws.
Number
of
screws
4
Screw
for
assembly
M5
x 35
2 Remove the 4 screws and pull the stand away
from the
TV.
To
detach the stand,
Lay
the
TV
with the screen side down
on
a flat
surface.
';;---Stand
Body
Stand Base
3 Assemble the
TV.
Screw
for
assembly
M4x
26
Number
of
screws
4
I
4 Assemble the parts of the stand rear cover
with the
TV.
To Next Page
