20

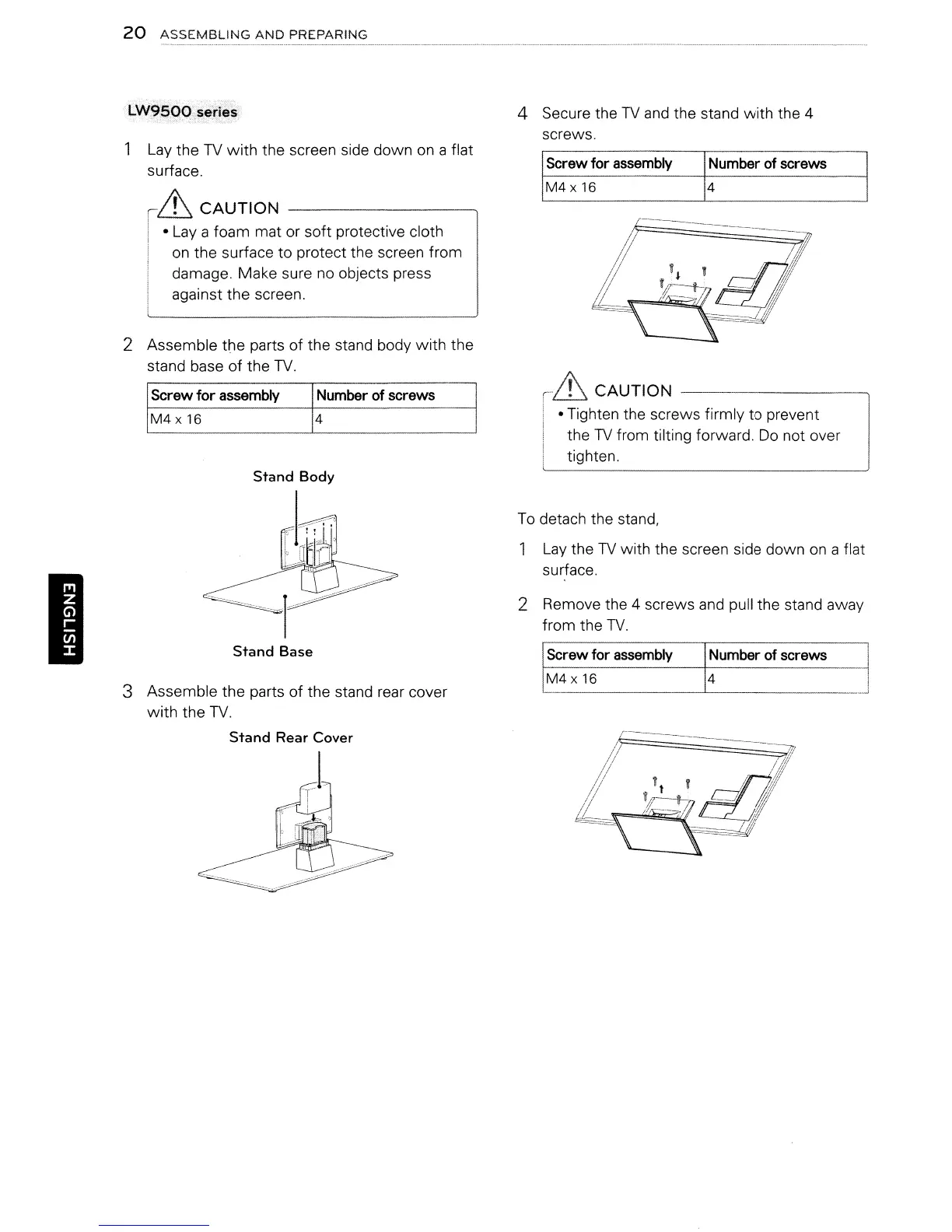

ASSEMBLING
AND
PREPARING
2 Assemble the parts of the stand body with the
stand base of the
TV.
1
Lay
the
TV
with
the screen side down
on
a flat
surface.
1&
CAUTION
! •
•
Lay
a foam mat or soft protective cloth
on
the surface to protect the screen from
damage. Make sure no objects press
against the screen.
Number
of
screws
4
Screw
for
assembly
M4
x 16
1&
CAUTION
-----------,
j • Tighten the screws firmly to prevent
the
TV
from tilting forward.
Do
not over
tighten.
4 Secure the
TV
and
the stand with the 4
screws.
Number
of
screws
4
Screw for
assembly
M4
x 16
2 Remove the 4 screws
and
pull the stand away
from the
TV.
To
detach the stand,
Lay
the
TV
with the screen side down
on
a flat
surface.
I
Stand Base
Screw
for
assembly
Number
of
screws
3 Assemble the parts of the stand rear cover
with the
TV.
Stand Rear Cover
M4x
16
4
To Next Page
