MAKING CONNECTIONS

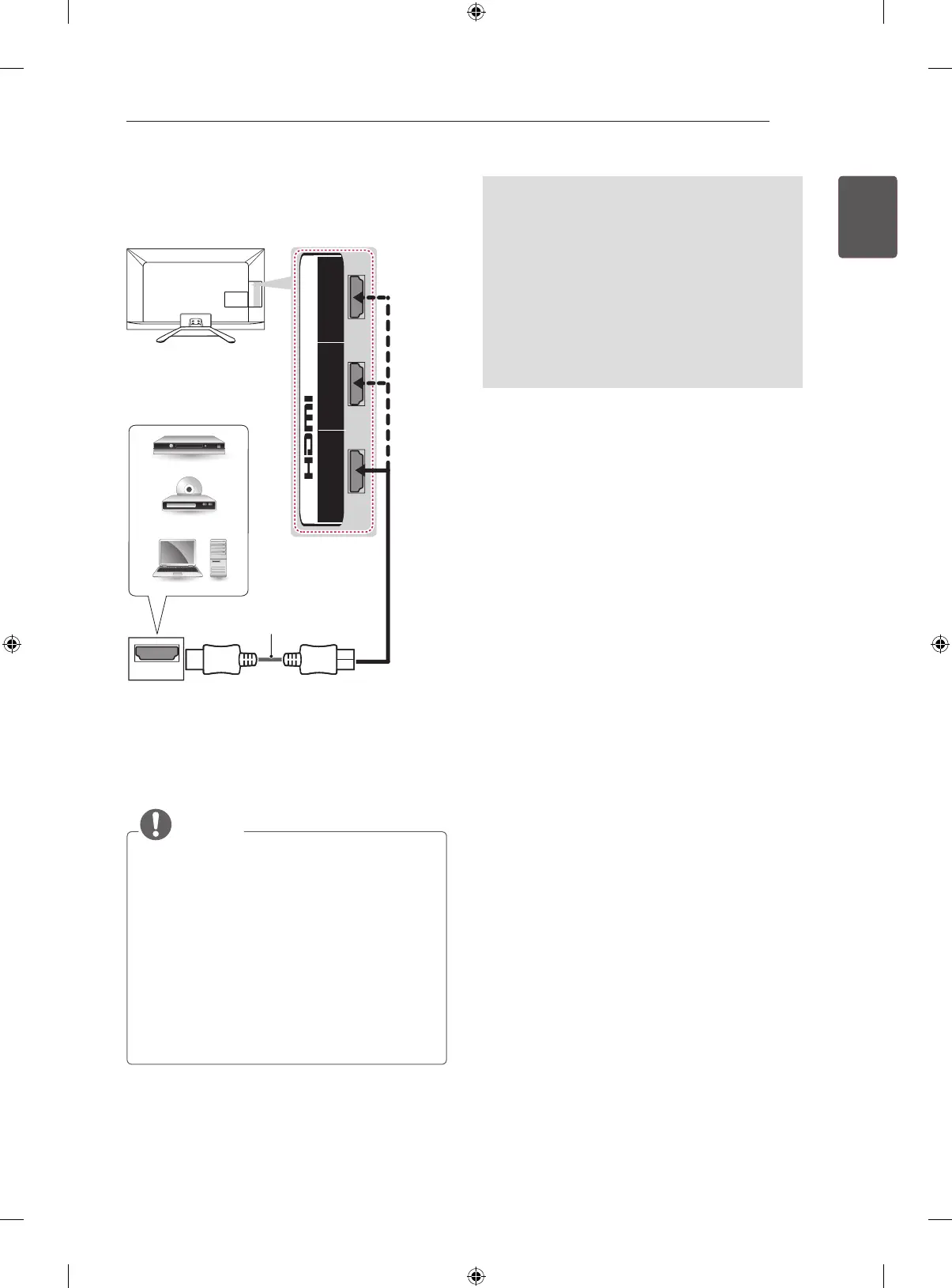

HDMI connection
HDMI
1
(ARC)
3
(MHL)
2
/DVI IN
Transmits the digital video and audio signals from
an external device to the TV. Connect the external
device and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
y
It is recommended to use the TV with the
HDMI connection for the best image quality.
y
Use the latest High Speed HDMI™ Cable
with CEC (Customer Electronics Control)
function.
y
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
y
Supported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192 KHz, 32KHz/4
4.1KHz/48KHz/88KHz/96KHz/176KHz/192K
Hz)
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
ARC (Audio Return Channel)
y
An external audio device that supports
SIMPLINK and ARC must be connected
using HDMI/DVI IN 1 (ARC) port.
y
When connected with a high-speed
HDMI cable, the external audio device
that supports ARC outputs optical SPDIF
without additional optical audio cable and
supports the SIMPLINK function.
