LG 60LA Series User Manual

28
ENG
ENGLISH
MAKING CONNECTIONS

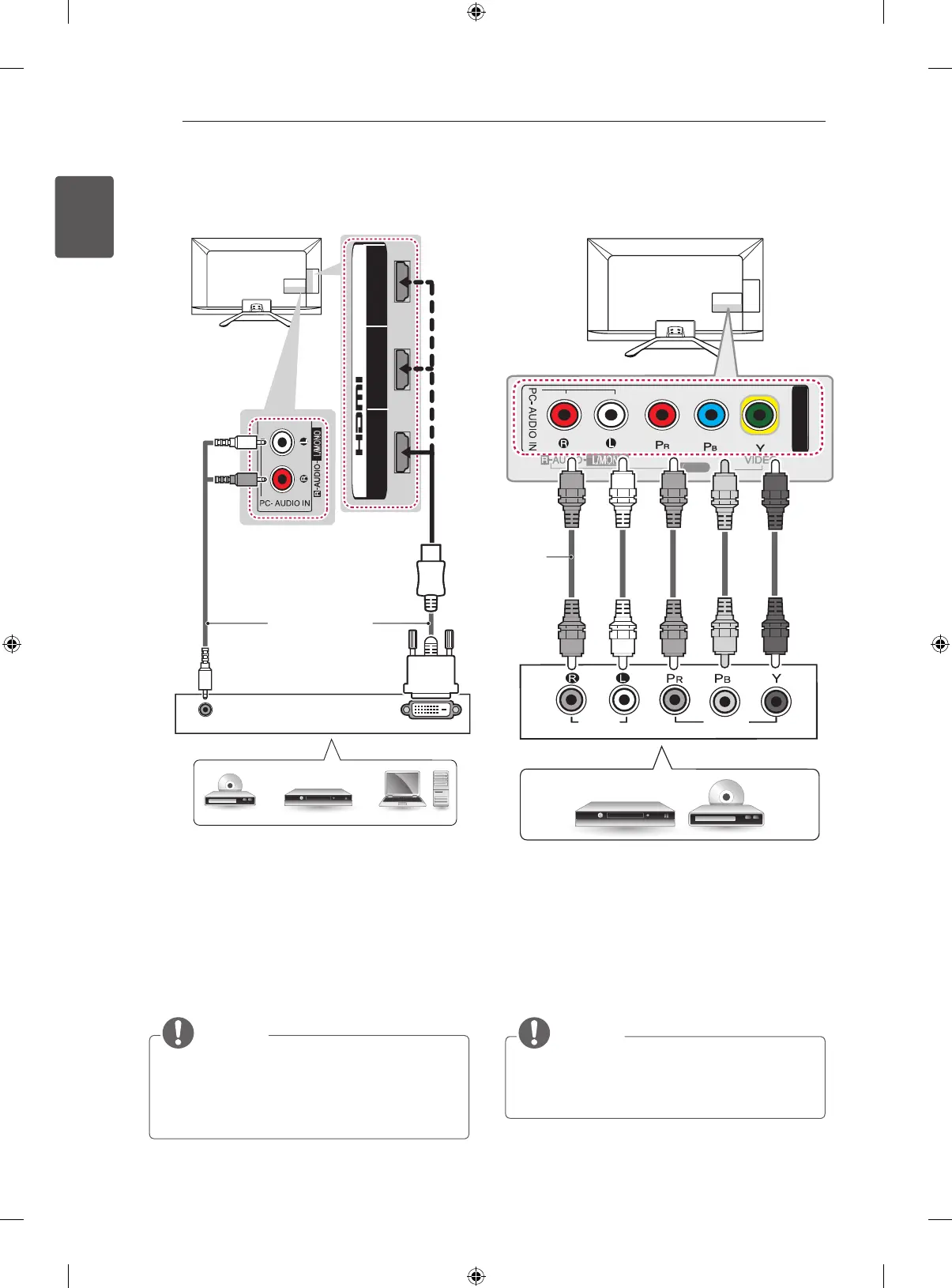

DVI to HDMI connection
DVI OUT
AUDIO OUT
1
(ARC)
3
(MHL)
2
/DVI IN
L
L/MONO
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / PC
RED
WHITE
Transmits the digital video signal from an external
device to the TV. Connect the external device and
the TV with the DVI-HDMI cable as shown. To
transmit an audio signal, connect an audio cable.
Choose any HDMI input port to connect. It does
not matter which port you use.
NOTE
y
Depending on the graphics card, DOS mode
may not work if a HDMI to DVI Cable is in use.
y
When using the HDMI/DVI cable, only Single
link is supported.
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external
device and the TV with a component cable as
shown.
NOTE
y
If cables are not installed correctly, it could
cause this image to display in black and
white or with distorted colours.
VIDEO
AUDIO
VIDEO
AUDIO
COMPONENT IN
L
O
O
ON
O
O
O
/M
/
L/
L/
/
/
N
N
M
M
L
L
O
O
O
O
M
M
N
N
O
O
AV
2
IN
RED
WHITE
RED
GREEN
BLUE
DVD / Blu-Ray / HD Cable Box
(*Not
Provided)

LG 60LA Series Specifications

General

Brand	LG
Model	60LA Series
Category	LED TV
Language	English
