ENGLISH
19
MAKING CONNECTIONS
Connecting to a HD receiver, DVD Player or VCR
Connect a HD receiver, DVD Player, or VCR to the TV and select an appropriate input mode.
HDMI Connection
HDMI is the best way to connect a device.

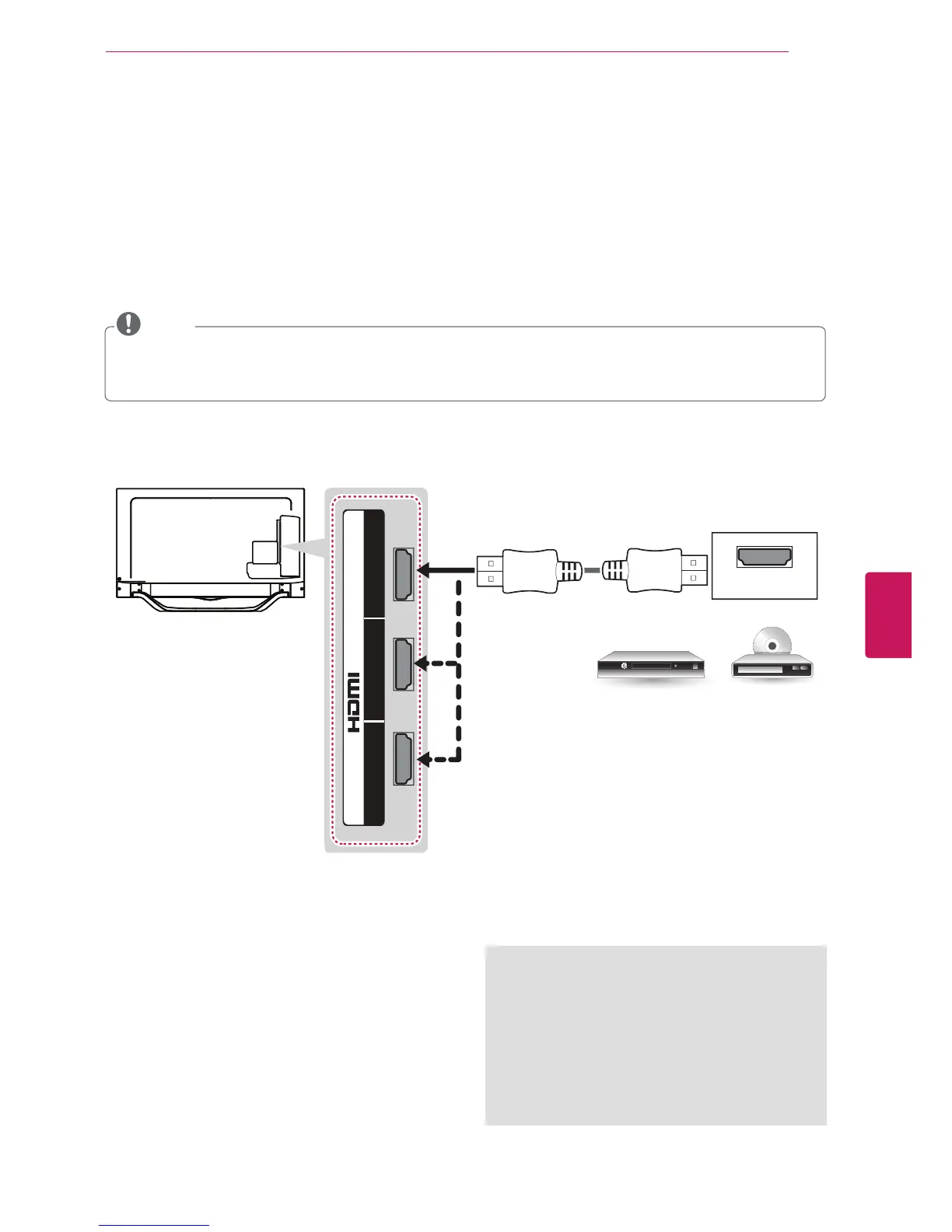

Transmits digital video and audio signals from an external device to the TV. Connect the external device and the TV with
the HDMI cable as shown in the following illustration.
Choose any HDMI input port to connect.
It does not matter which port you use.
ARC (Audio Return Channel)
y
When connected with a high-speed HDMI
cable, digital audio can be sent to a compactible
device without an additional optical audio cable.
y
ARC is only supported on the HDMI input
1 (ARC) port. An external audio device that
supports ARC should be connected to HDMI 1
if you wish to use ARC.
y
Use the latest High Speed HDMI™ Cable that supports CEC (Customer Electronics Control) function.
y
High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
y
HDMI Audio Supported Format: Dolby Digital, DTS, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k).
NOTE
(*Not Provided)
DVD / Blu-Ray / HD Cable Box / HD STB
HDMI
IN
2 1
(ARC)
3
(MHL)
/DVI
To Next Page
