DVI to HDMI Connection

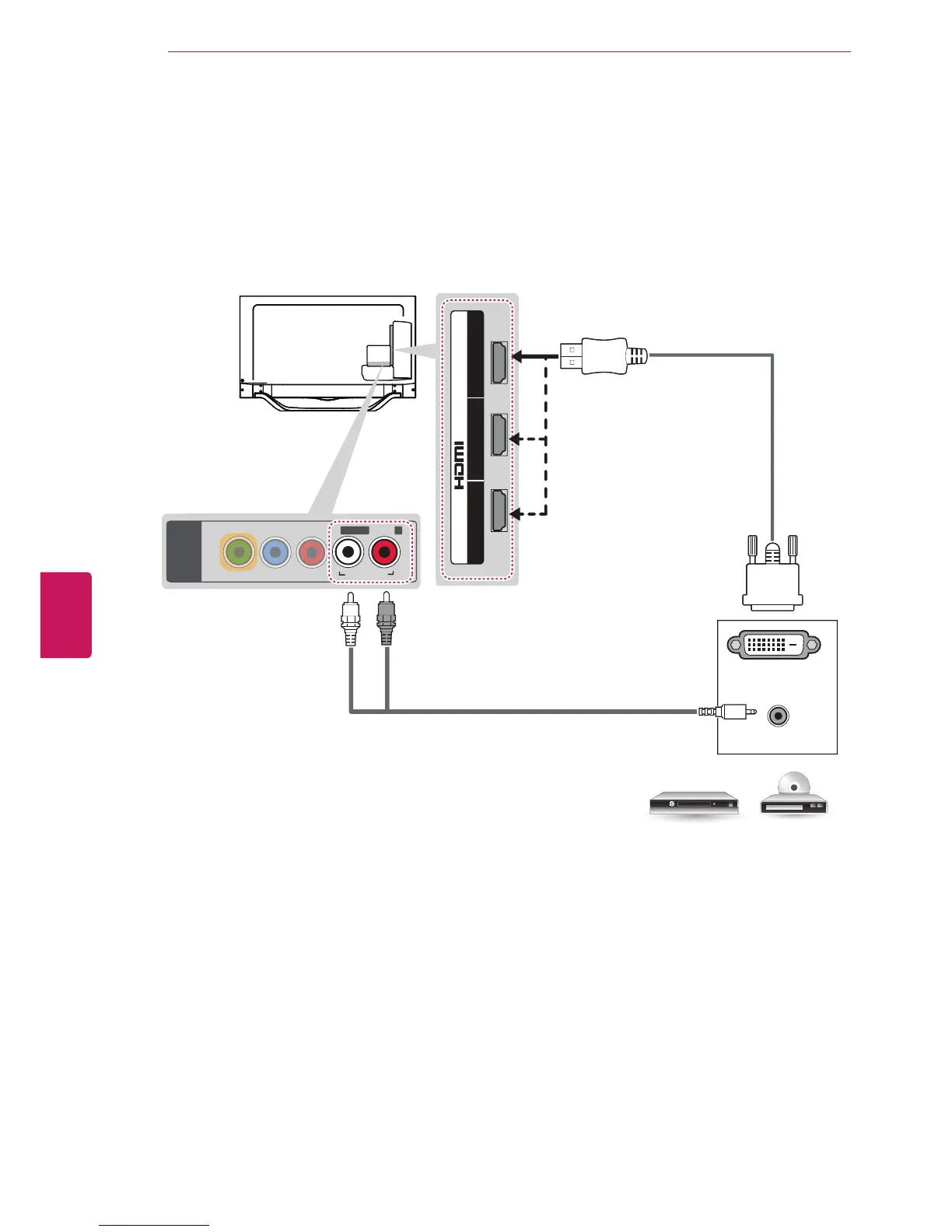

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the
DVI-HDMI cable as shown in the following illustration. To transmit an audio signal, connect an audio cable.
IN
2 1
(ARC)
3
(MHL)
AUDIO OUT
DVI OUT
VIDE
PC-AUDIO IN
L/MONO AUDIO R
COMPONENT IN
/AV IN
/DVI
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
WHITE
RED
Choose any HDMI/DVI input port to connect.
It does not matter which port you use.
