MAKING CONNECTIONS
SIMPLINK Connection
Use the TV remote control to play and control the
AV device connected with the HDMI cable through
HDMI-CEC. Your TV only works with the devices
that support HDMI-CEC. But only devices with the
logo are fully supported.
Connect one end of the HDMI cable to the HDMI/
DVI IN or HDMI IN terminal on the rear of the TV
and the other end to the SIMPLINK device.
NOTE

If the connected device does not support
HDMI-CEC, the SIMPLINK feature is
unavailable.

To operate SIMPLINK, you should use
an High Speed HDMI cable with the CEC
(Consumer Electronics Control) function.

SIMPLINK may not work properly with
third-party devices.

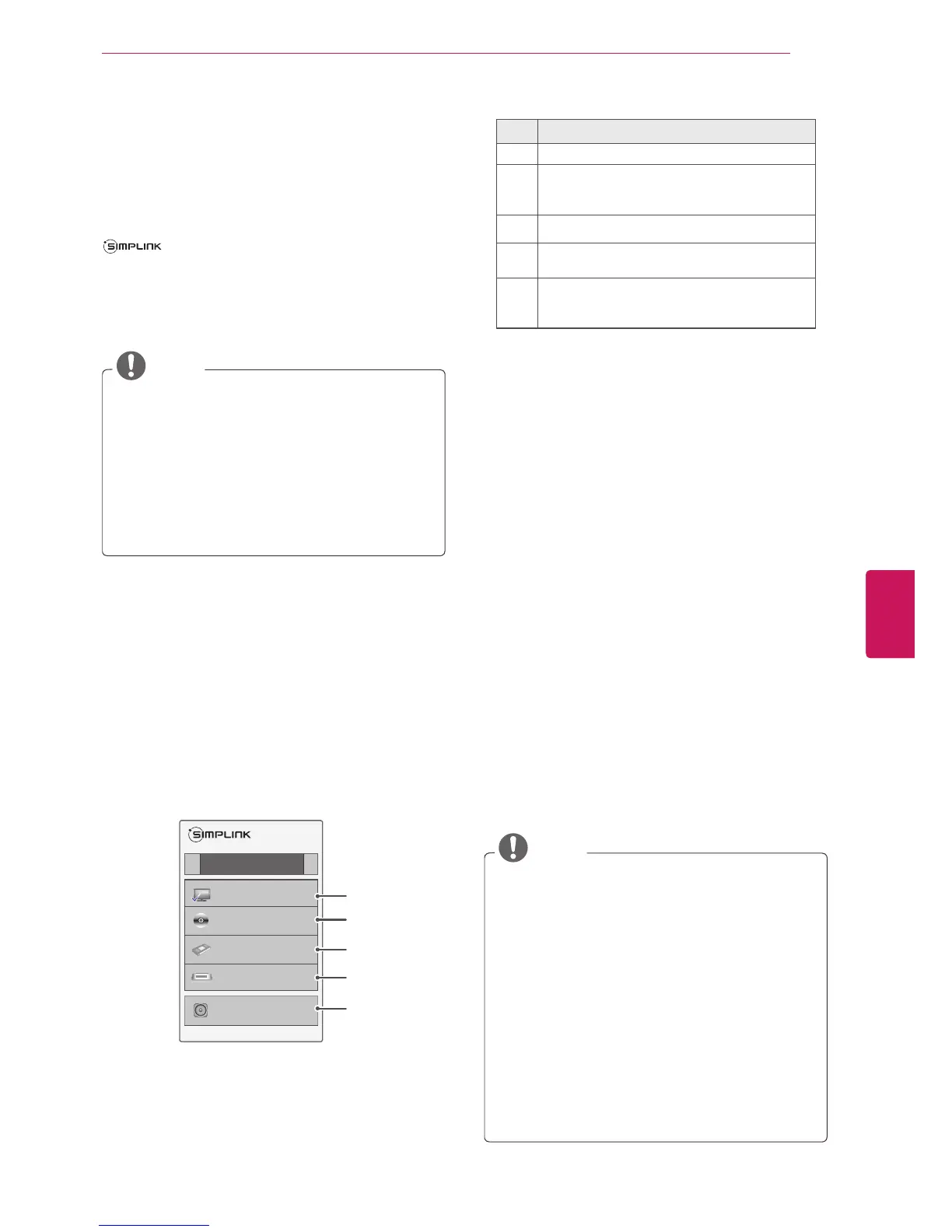

Activating and Using the
SIMPLINK menus
1
Press
SIMPLINK
to access the SIMPLINK
menus.
2
Press the Navigation buttons to select to
On
.
3
Press the Navigation buttons to scroll to one of
the devices and press
OK
.
󰭺󰯠





1
2
3
4
5



No. Description
1
Displays the previously viewed TV channel.
2
Plays discs. When multiple discs are
available, the title of the disc appears at the
bottom of the screen.
3
Controls the connected VCR.
4
HDD recordings playback: Controls the
recording stored in HDD.
5
Audio out to home theater speaker or Audio
out to TV: Changes the audio output between
Home theater speaker and TV speaker.
- A check mark appears in front of the selected
device.
- Available devices display in a bright color.
- Unavailable devices display in grey.
4
Control the selected AV device.
- Direct Play: After connecting AV devices to
the TV, you can directly control the devices
and play media without additional settings.
- Select AV device: Enables you to select one
of the AV devices connected to the TV.
- Disc playback: Control connected AV devices
by pressing the Navigation buttons,
OK
,
󰯇
,
󰯈
,
󰯉
,
󰯋
and
󰯊
.
- Power off all devices: When you power off
the TV, all connected devices are turned off.
- Switch audio-out: Offers an easy way to
switch audio-out.
- Sync Power on: When the equipment with
SIMPLINK function connected HDMI terminal
starts to play, The TV will automatically turn
on.
NOTE

If you change the input source by pressing
INPUT
, the progressing function of the
SIMPLINK device will stop.

If you select a device that has the
home theater feature, the sound output
automatically switches to the home theater
speaker and the TV speaker turns off.

If a connected SIMPLINK home theater
system does not play the audio from the TV,
connect the DIGITAL AUDIO OUT terminal
on the rear of the TV to the DIGITAL AUDIO
IN terminal on the back of the SIMPLINK
device with an optical cable.

LG 60PA6500 Specifications

General

Depth	53 mm
Width	1386.8 mm
Height	818.2 mm
Weight	36400 g
Tuner type	Analog & digital
24p support	Yes
Pixel pitch	- mm
Smart modes	Cinema, Game, Sports, Standard, Vivid
Aspect ratio	16:9
HDMI version	1.3
Package depth	285 mm
Package width	1545 mm
Product color	Black
Package height	950 mm
Package weight	48100 g
Cables included	AC
RMS rated power	20 W
AC input voltage	100 - 240 V
Display diagonal	59.8 \
AC input frequency	50 - 60 Hz
Built-in subwoofer	No
Depth (with stand)	354.7 mm
Display brightness	- cd/m²
Display technology	Plasma
Number of speakers	2
Height (with stand)	883.2 mm
Placement supported	Horizontal
Weight (with stand)	40600 g
Supported video modes	1080i, 1080p, 720p
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Number of OSD languages	4
S-Video inputs quantity	0
Video formats supported	DIVX, H.264
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	-
Panel mounting interface	600 x 400 mm
Annual energy consumption	267 kWh
Display diagonal (metric)	152 cm
Screen format adjustments	4:3, 16:9, Zoom
Analog signal format system	NTSC, PAL BG
Power consumption (standby)	0.2 W
Digital signal format system	ATSC, DVB-T
Supported graphics resolutions	1920 x 1080 (HD 1080)
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Consumer Electronics Control (CEC)	Anynet+
