EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP

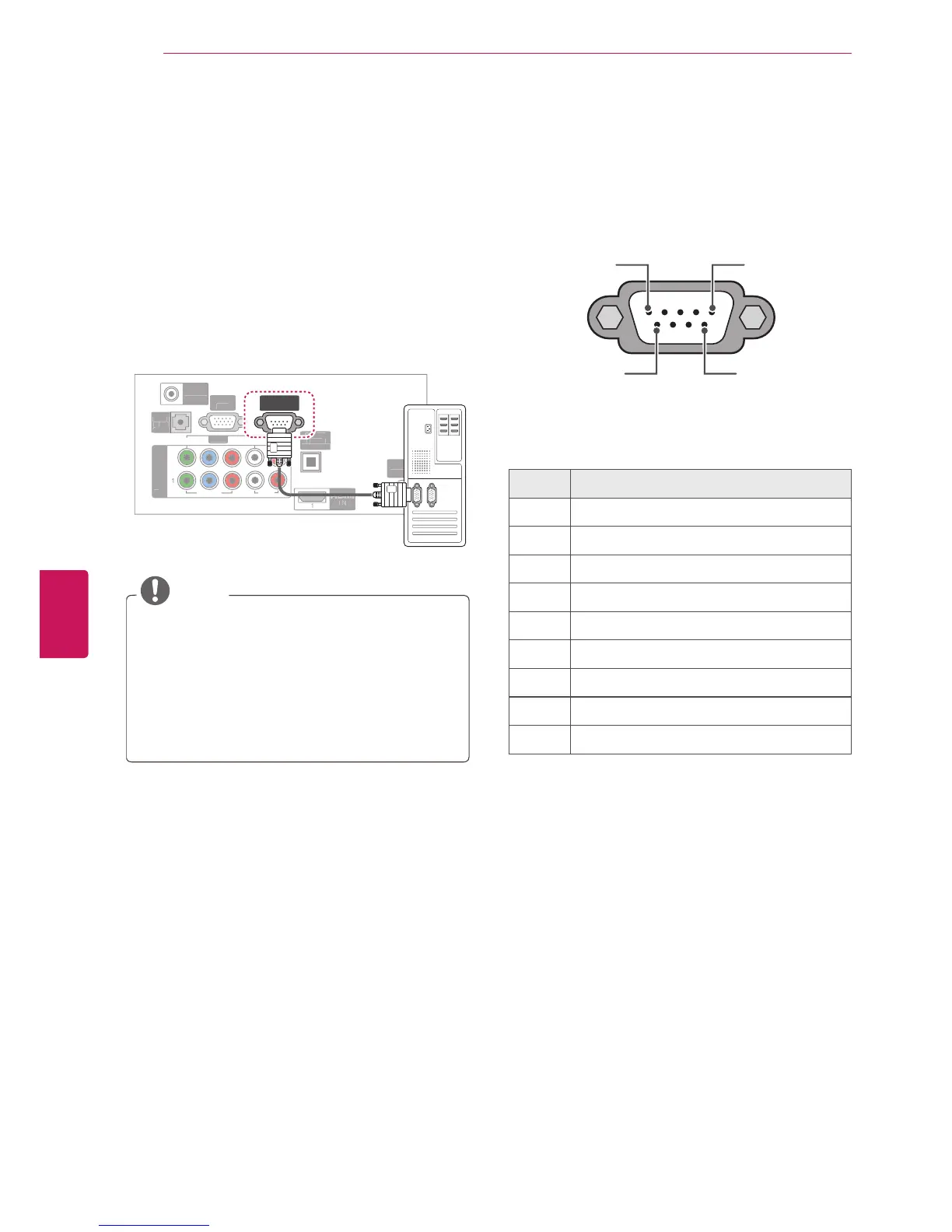

RS-232C Setup
Connect the RS-232C (serial port) input jack to
an external control device (such as a computer or
an A/V control system) to control the product’s
functions externally.
Connect the serial port of the control device to the
RS-232C jack on the product back panel.
I
N
1
CO
MP
O
NEN
T
IN
V
IDE
O
AU
DI
O
L
P
B
P
R
R
1
2
Y
V
IDE
O
AU
DI
O
R
L
/
M
O
N
O
AV
IN
R
EM
O
T
E
CO
NTR
O
L
IN
R
G
B IN
(
P
C
)
RS-232C IN
(CONTROL & SERVICE)
O
P
TI
C
AL
D
I
G
IT
A
L
AUDI
O
O
UT
ANTENNA
/
C
ABLE IN
AUDI
O
I
N
(
R
G
B/
DV
I
)
NOTE

RS-232C on this unit is intended to be used
with third party RS-232C control hardware
and software. The instructions below
are provided to help with programming
software or to test functionality using telenet
software. RS-232C connection cables are not
supplied with the product.
Type of connector;
D-Sub 9-Pin Male
1 5
6 9
RS-232C IN
(CONTROL & SERVICE)
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection

LG 60PA6500 Specifications

General

Depth	53 mm
Width	1386.8 mm
Height	818.2 mm
Weight	36400 g
Tuner type	Analog & digital
24p support	Yes
Pixel pitch	- mm
Smart modes	Cinema, Game, Sports, Standard, Vivid
Aspect ratio	16:9
HDMI version	1.3
Package depth	285 mm
Package width	1545 mm
Product color	Black
Package height	950 mm
Package weight	48100 g
Cables included	AC
RMS rated power	20 W
AC input voltage	100 - 240 V
Display diagonal	59.8 \
AC input frequency	50 - 60 Hz
Built-in subwoofer	No
Depth (with stand)	354.7 mm
Display brightness	- cd/m²
Display technology	Plasma
Number of speakers	2
Height (with stand)	883.2 mm
Placement supported	Horizontal
Weight (with stand)	40600 g
Supported video modes	1080i, 1080p, 720p
USB 2.0 ports quantity	1
Audio formats supported	MP3
Image formats supported	JPG
Number of OSD languages	4
S-Video inputs quantity	0
Video formats supported	DIVX, H.264
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	-
Panel mounting interface	600 x 400 mm
Annual energy consumption	267 kWh
Display diagonal (metric)	152 cm
Screen format adjustments	4:3, 16:9, Zoom
Analog signal format system	NTSC, PAL BG
Power consumption (standby)	0.2 W
Digital signal format system	ATSC, DVB-T
Supported graphics resolutions	1920 x 1080 (HD 1080)
On Screen Display (OSD) languages	ENG, ESP, FRE, KOR
Consumer Electronics Control (CEC)	Anynet+
