a AC IN connector

Connect the supplied power cord.

b COMPONENT VIDEO OUT (Y P

B PR)

Connect to a TV with Y Pb Pr inputs.

c DIGITAL AUDIO OUT (COAXIAL)

Connect to digital (coaxial) audio equipment.

d HDMI OUT (Type A)

Connect to TV with HDMI inputs. (Interface for digital audio and video)

e LAN port

Connect a network with an always-on

broadband connection.

f VIDEO OUT

Connect to a TV with video inputs.

g 2CH AUDIO OUT (Left/Right)

Connect to a TV with 2 channel audio inputs.

h DIGITAL AUDIO OUT (OPTICAL)

Connect to digital (optical) audio equipment.

i 7.1CH ANALOG AUDIO OUT

Connect to 7.1CH analogue input on an audio equipment.

(SW – Subwoofer, C – Centre, FL – Front Left, FR – Front Right

SL – Surround Left, SR – Surround Right, SBL – Surround Back Left,

SBR – Surround Back Right)

abcde

fg h i

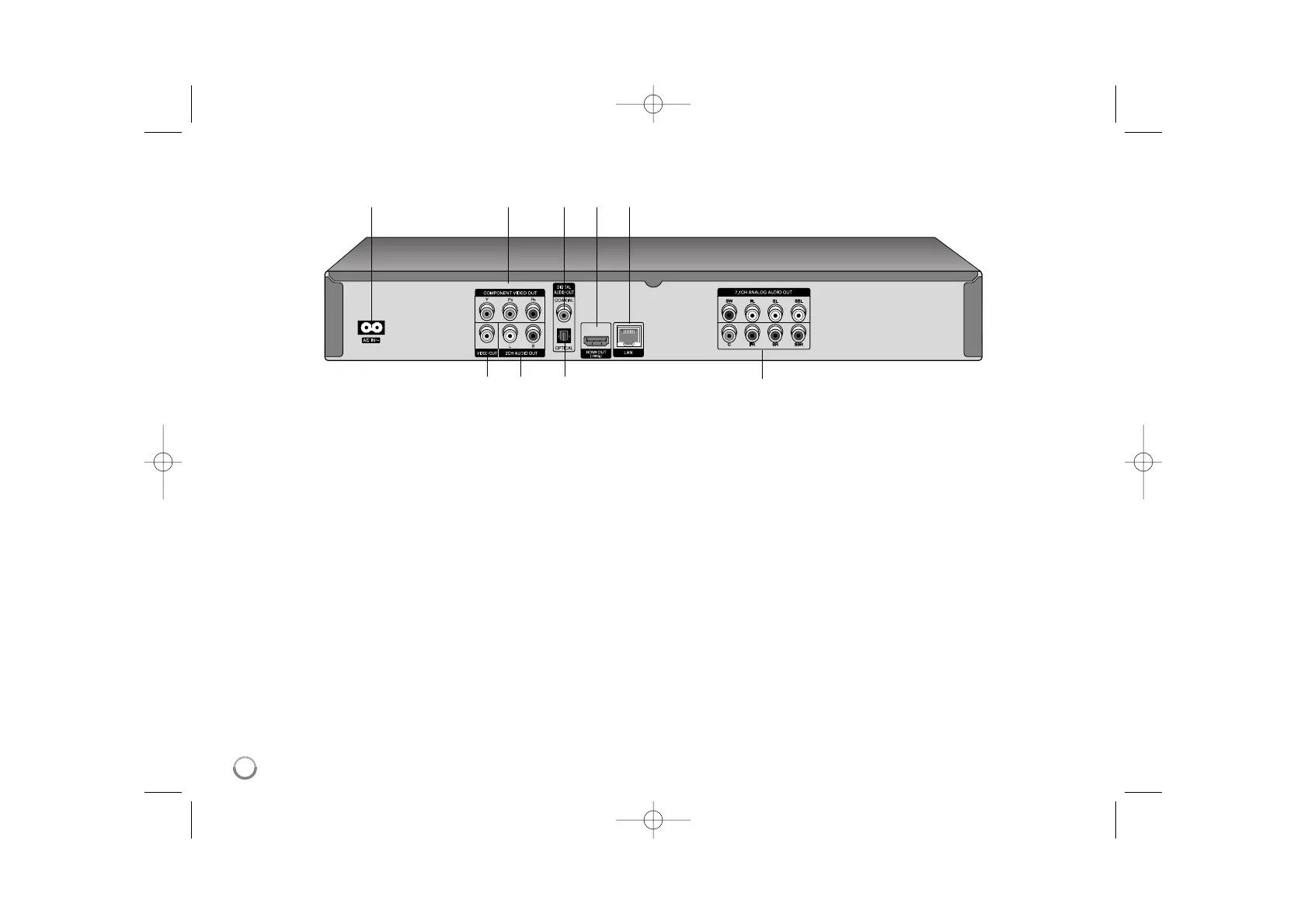

Rear panel
