Installation
Focus Ring
Adjusting the Projector’s Focus
To focus the image, rotate the focus ring until the image is clear.
The projector will focus at distances from 1.3 to 32.8 feet (0.4 to
10.0 meters) with mechanical travel.

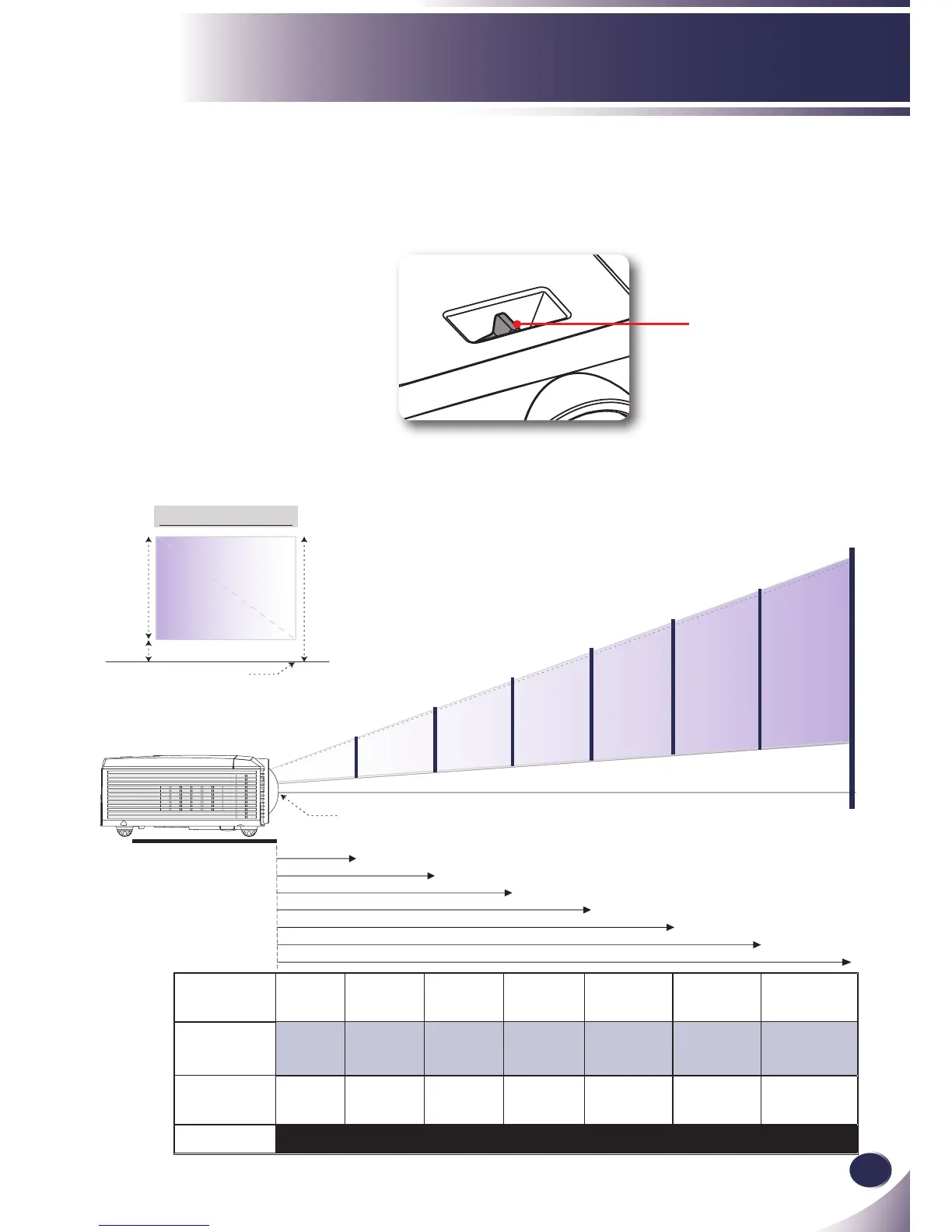

Adjusting Projection Image Size
1.3'
(0.4m)
26.2'(8.0m)
19.7'(6.0m)
14.8'(4.5m)
9.8'(3.0m)
4.9'(1.5m)
32.8'(10.0m)
35.6"
(90.5cm)
133.7"
(339.5cm)
267.3"
(679.0cm)
401.0"
(1,018.5cm)
534.7"
(1,358.1cm)
712.9"
(1,810.7cm)
891.1"
(2,263.4cm)
Lens Center
H
A
Lens Center
H : A = 8.065
B ÷ H x 100% = 112.4%(Offset)
B
Screen
(Diagonal)
35.6”
(90.5cm)
133.7”
(339.5cm)
267.3”
(679.0cm)
401.0”
(1,018.5cm)
534.7”
(1,358.1cm)
712.9”
(1,810.7cm)
891.1”
(2,263.4cm)
Screen Size
Max.(WxH)
30.2”x18.9”
76.7x48.0cm
113.4”x70.9”
287.9x179.9cm
226.7”x141.7”
575.8x359.9cm
340.0”x212.5”
863.7x539.8cm
453.4”x283.4”
1,151.7x719.8cm
604.5”x377.8”
1,535.5x959.7cm
755.7”x472.3”
1,919.4x1,199.6cm
Hd
2.34”
(6.00cm)
8.79”
(22.30cm)
17.57”
(44.60cm)
26.35”
(66.90cm)
35.14”
(89.30cm)
46.85”
(119.00cm)
58.56”
(148.8cm)
Distance
1.3’ (0.4m) 4.9’ (1.5m) 9.8’ (3.0m) 14.8’ (4.5m) 19.7’ (6.0m) 26.2’ (8.0m) 32.8’ (10.0m)
This graph is for user’s reference only.
WXGA model
