ONE POINT REPAIR GUIDE
2. NO BOOTING WHEN POWER ON THE SET
The set doesn’t work when press the power button on the front board or the remote
control.
2-1. FLASH MEMORY
2-1-1. Solution
Please check and replace IC503 on MAIN board.
2-1-2. How to troubleshoot (Countermeasure)
1) Check 5.6 V to CN501 in standby mode.
 If there is no 5.6 V, check the SMPS.
2) Check 12 V, F+, F- and PVDD when power on the set.
- If the set doesn’t work regardless of what the KEY1 changes high to low while pressing the power button .
X500 and X501 work normally but, if you can not power on the set, replace IC501 with a new one on
the MAIN board.

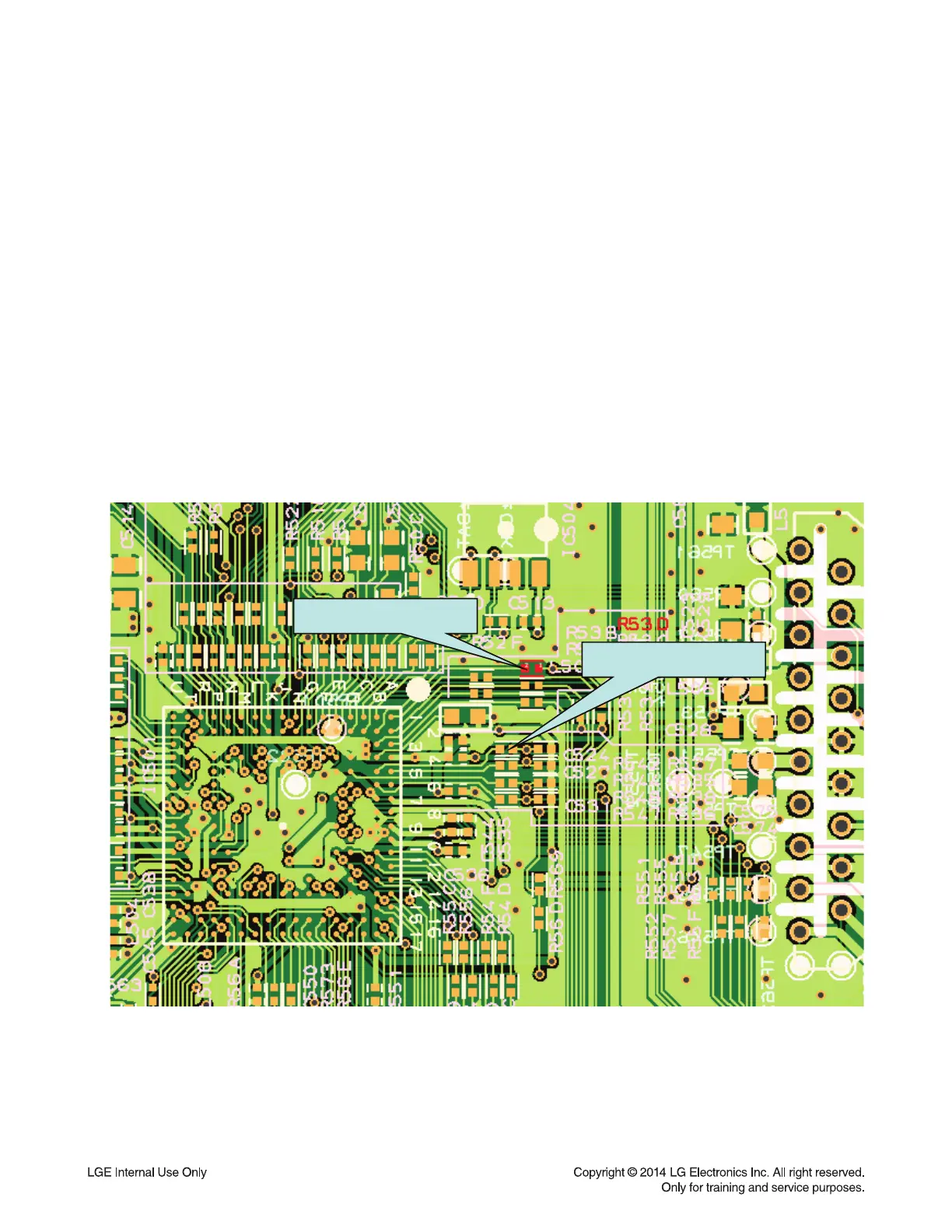

2-1-3. Service hint (Any picture / Remark)
KEY1(R542)
IC501
PWR_CTRL(R53D)
< Signal check point >
