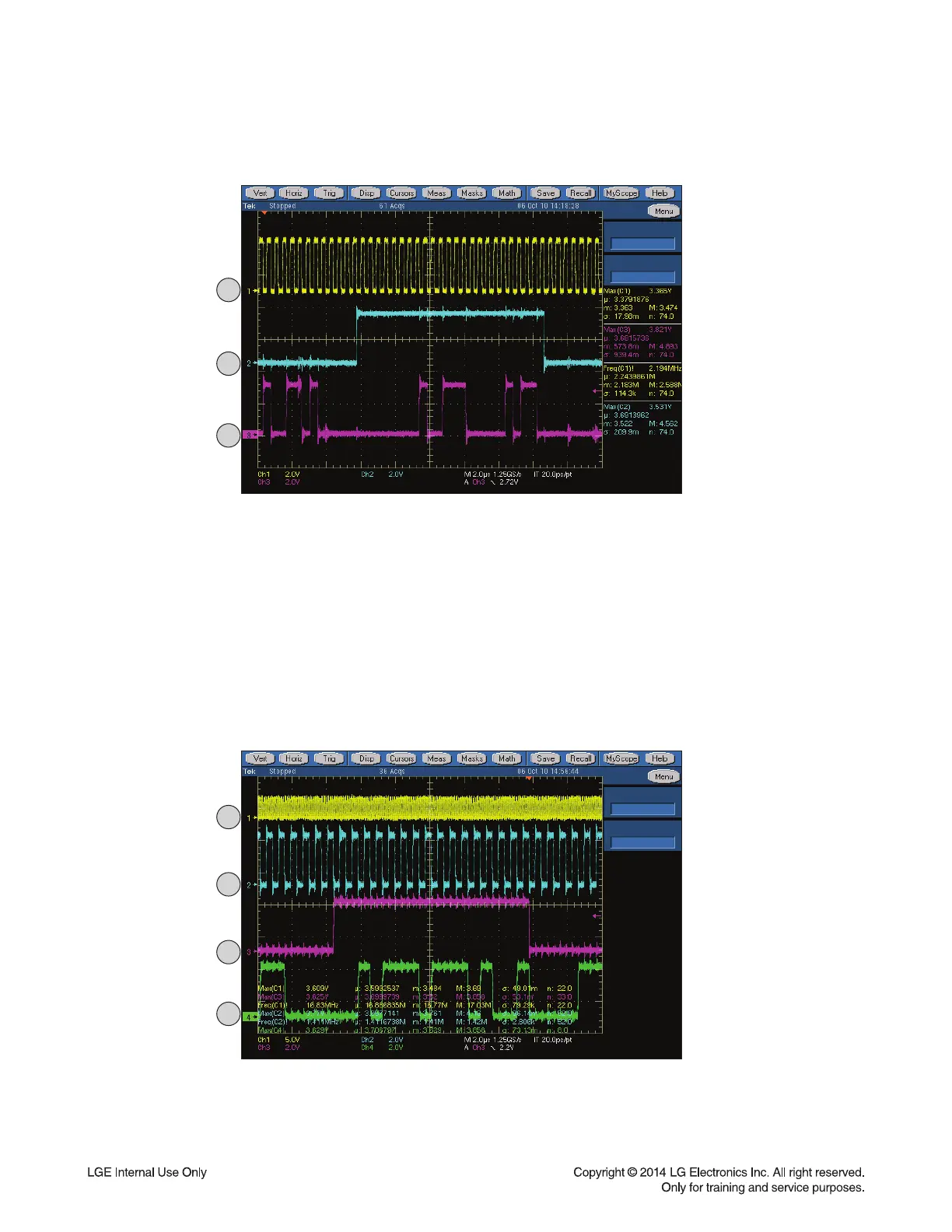

3. AUDIO PATH
6
7
8
CD_BCK
CD_LRCK
CD_DATA
3-30
IC501 PIN N4
IC501 PIN N1
IC501 PIN N2
9
10
12
11
DAC_MCLK
DAC_BCK
DAC_LRCK
DAC_DATA
IC501 PIN D2
IC501 PIN E1
IC501 PIN D1
IC501 PIN E2
