Connecting to speakers
Before connecting
You have to position the unit and the speakers
before connecting the speakers. Note that the
illustrations below are dier from the actual unit.
The following illustration shows an example of the
positioning which is the left side of the main unit.

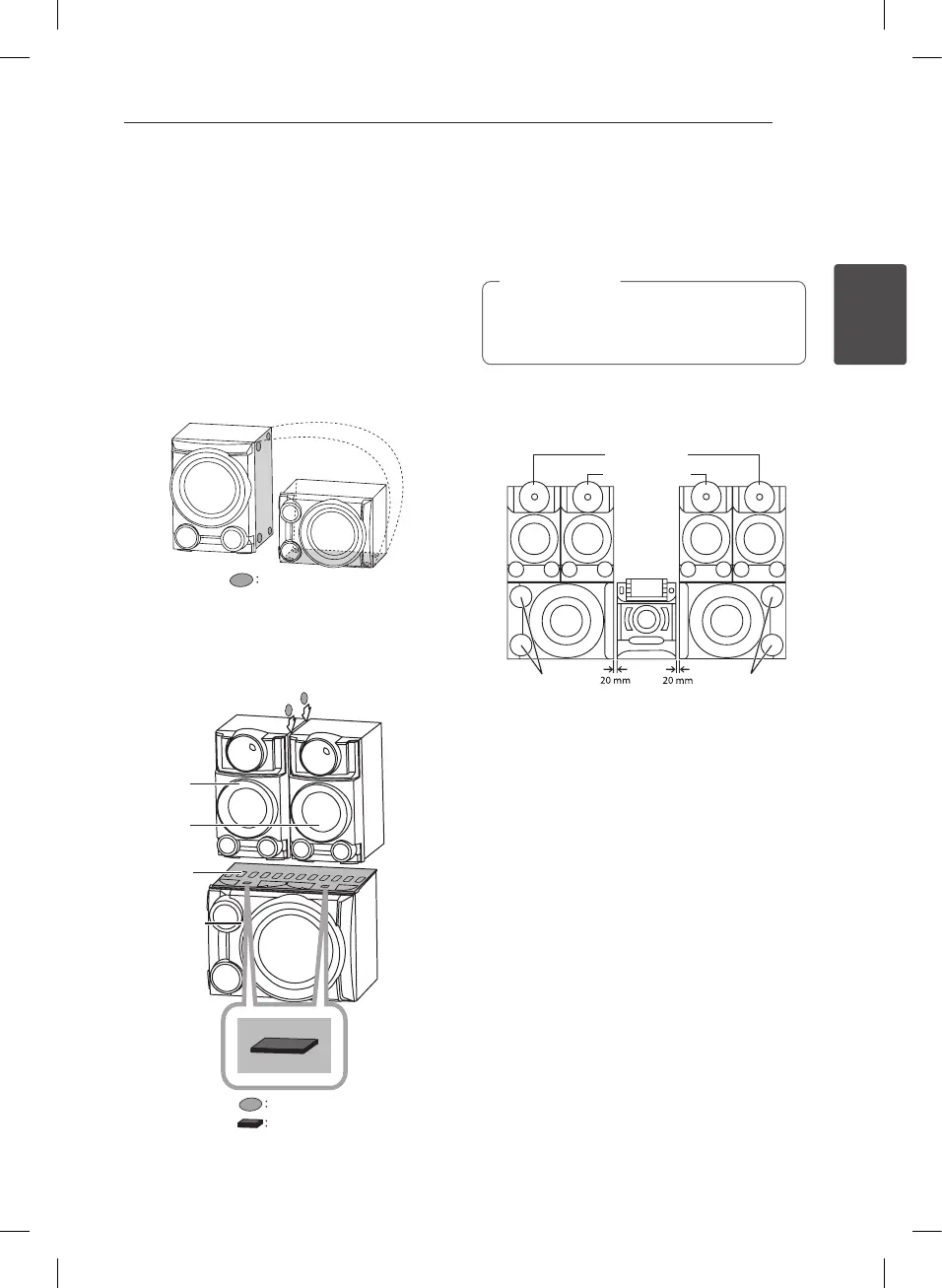

Positioning the speakers
Non-skid pad
1. Attach the non-skid pads to the right side of
subwoofer.
2. Lay the subwoofer down as the illustration
above.
Non-skid pad
Rear
speaker
Front
speaker
Stacking
board
Subwoofer
3. Put the stacking board on the subwoofer.
4. Place the front and the rear speakers on the
stacking board firmly.
5. Attach the non-skid pads between the front
and the rear speakers for preventing scratchs.
Do not take the cushions o the stacking
board. Because the cushion is for preventing
vibration from subwoofer.
>
Caution
Positioning the main unit and the
speakers
Rear speaker
Front speaker
Speaker ductSpeaker duct
y
The speaker ducts of subwoofer have to be faced
opposite the main unit. Otherwise it may result
in a malfunction of the main unit.
y
The subwoofer have to be placed at a distance
of about 20 mm from the main unit.
Cushion
