Connecting12
Connecting
2

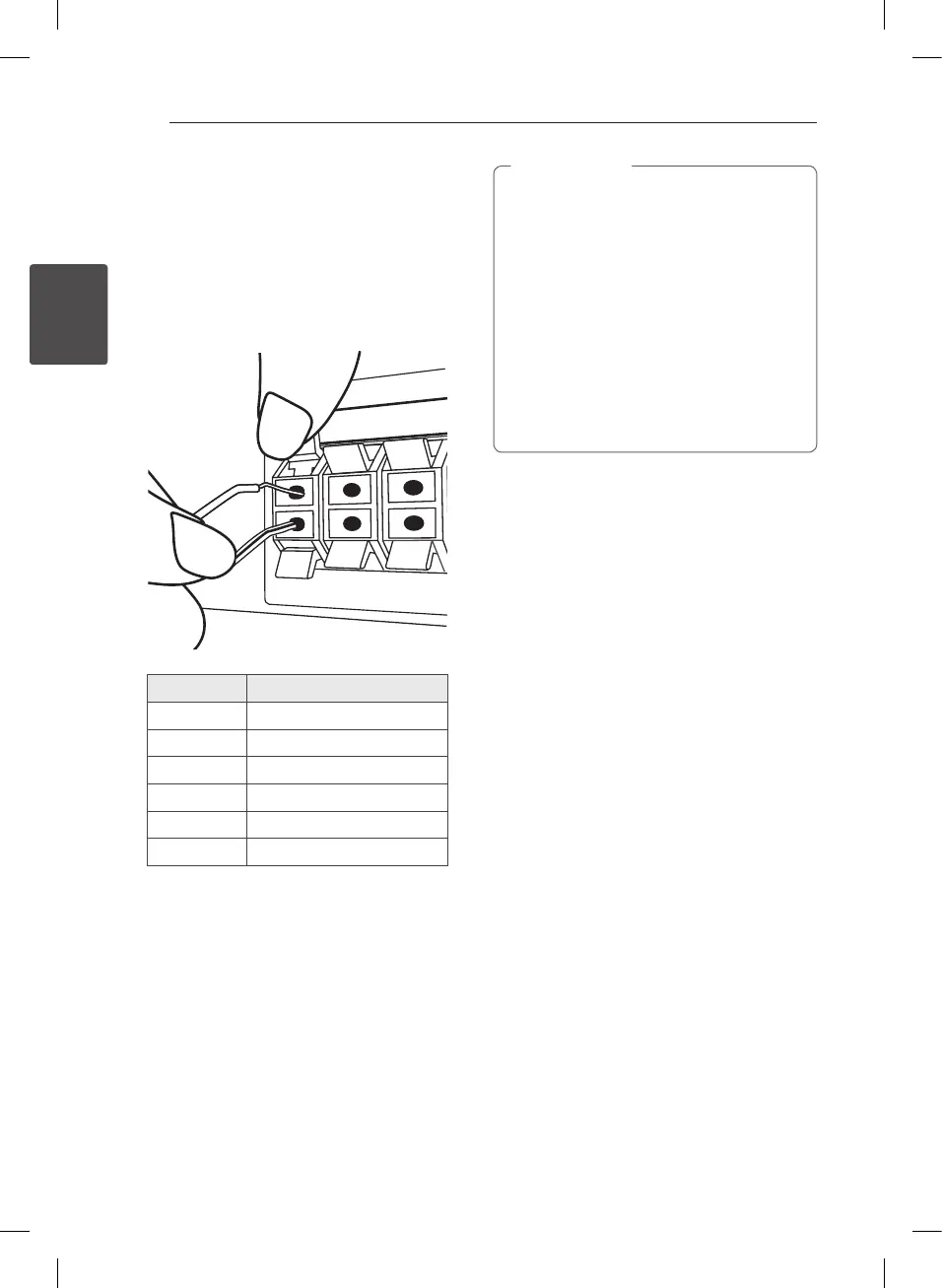

Attaching the speakers to the
unit
To connect the cable to the unit, press each plastic
nger pad to open the connection terminals on the
unit. Insert the wire and release the nger pad.
Connect the black stripe of each wire to the
terminals marked - (minus) and the other end to
the terminals marked + (plus).
Color Speaker
Grey Rear R
Blue Rear L
Orange Sub woofer 1
Orange Sub woofer 2
Red Front R
White Front L
y
Be careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).
y
The speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
y
Make sure to install the speaker with other
people in order to prevent it from falling
and causing injuries to the installer.
>
Caution
To Next Page
