44

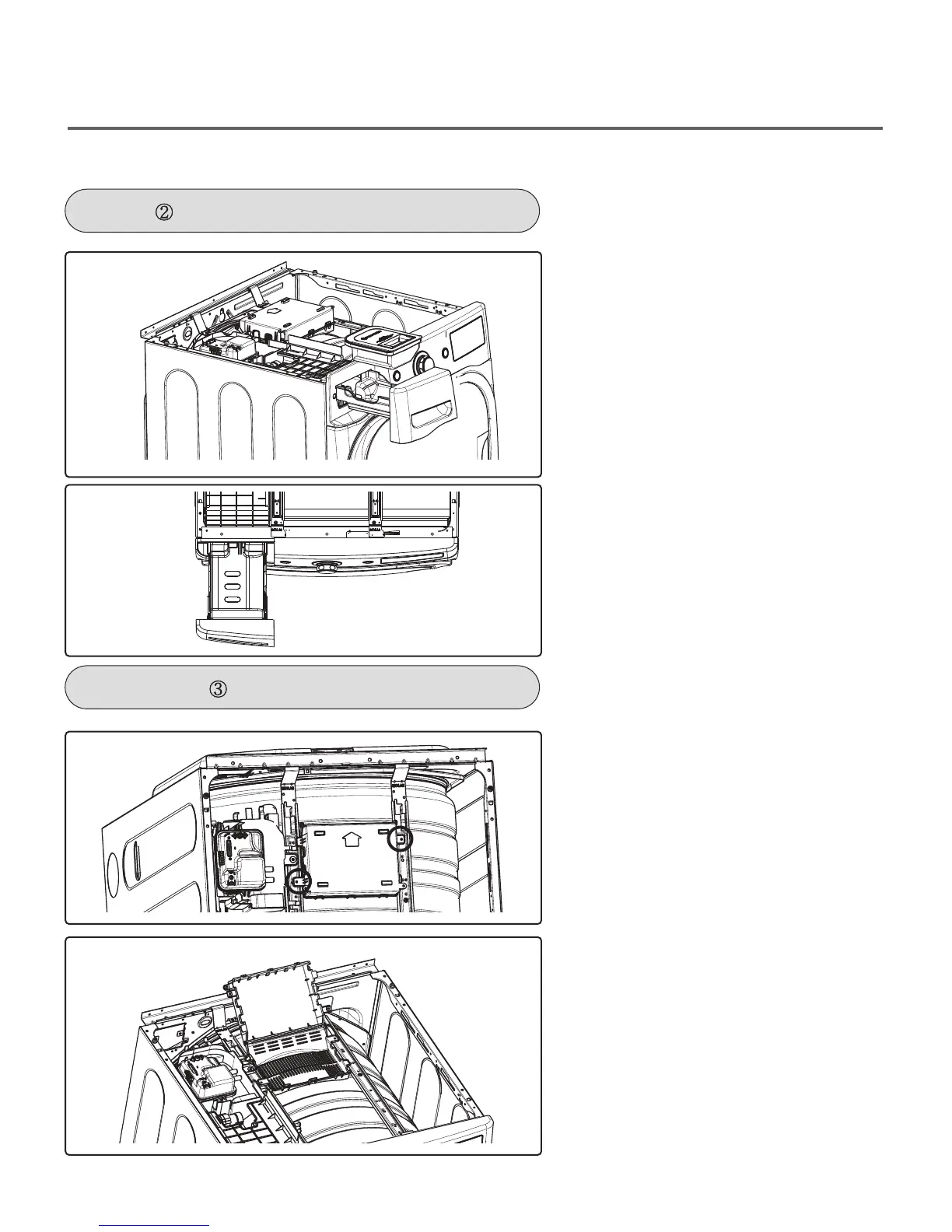

PANEL DRAWER ASSEMBLY
PCB ASSEMBLY
1.
Pull the drawer.
2.
Lift out the steam feeder.
1.
Remove 2 screws on the frame body.
2.
Open the cover guide and disconnect the
connectors.
3.
Lift the hook and pull out the drawer.
