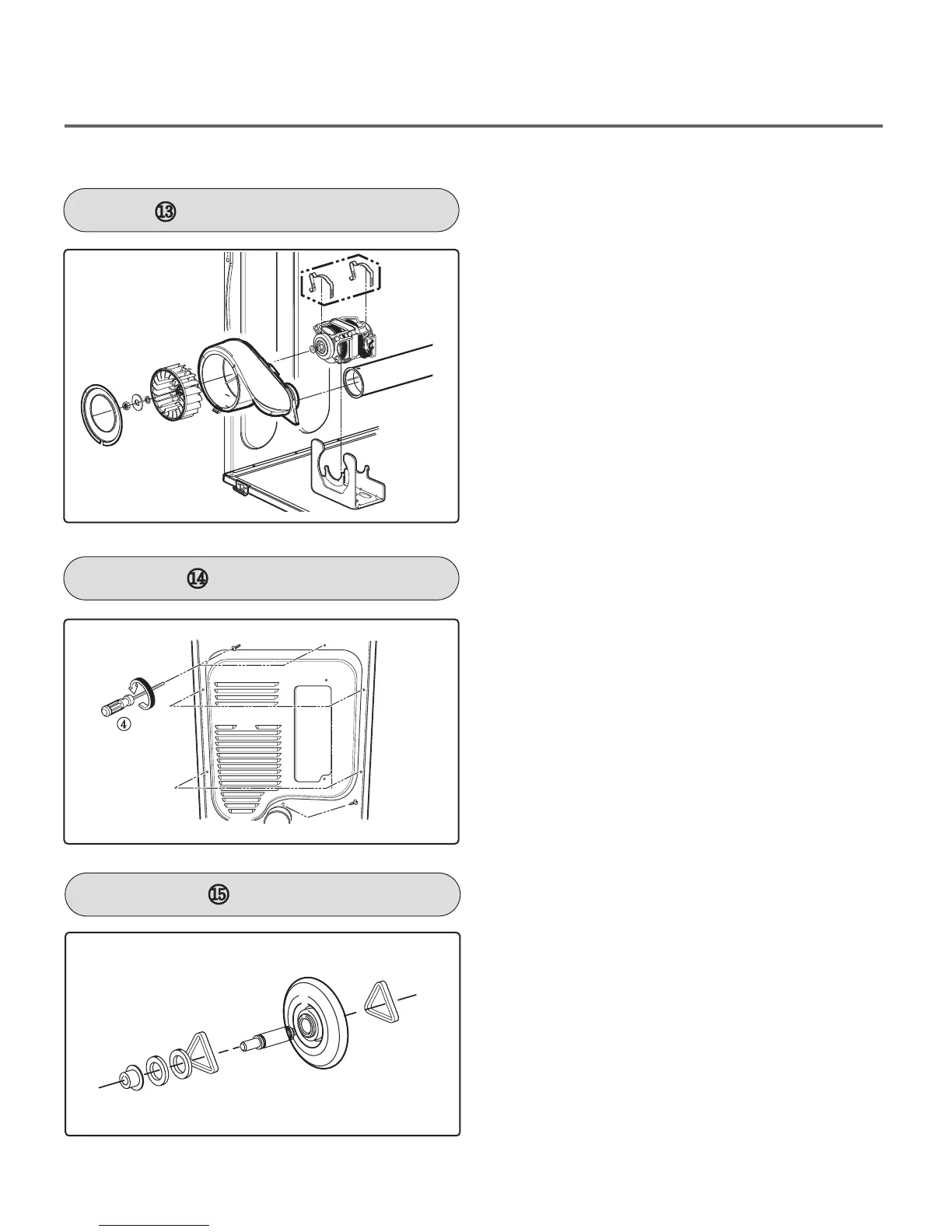

LG DLEX8000 - BLOWER HOUSING; BACK COVER; ROLLERS

52
BLOWER HOUSING
BACK COVER
1.
Remove the top plate.
2.
Remove the cabinet cover and front bulkhead.
3.
Remove the drum assembly.
4.
Remove 2 screws and cover (Air guide).
5.
Remove the bolt and washer.
1.
Open the top plate.
2.
Remove the cover cabinet and front bulkhead.
3.
Remove the drum assembly.
4.
Remove 7 screws.
5.
Pull the rear bulkhead towards the front.
6.
Remove the blower wheel. (Left-hand thread!).
7.
Disconnect the motor clamp and motor.
ROLLERS
1.
Disassemble the top plate.
2.
Remove the cover cabinet and front bulkhead.
3.
Remove the drum assembly and front bulkhead.
4.
Disconnect the air duct from the front bulkhead.
5.
Remove the rollers from the front bulkhead.
and rear bulkhead.
⑬
⑭
⑮
