LG DLEX8100V User Manual

17
When checking components, turn the power off and discharge voltage.

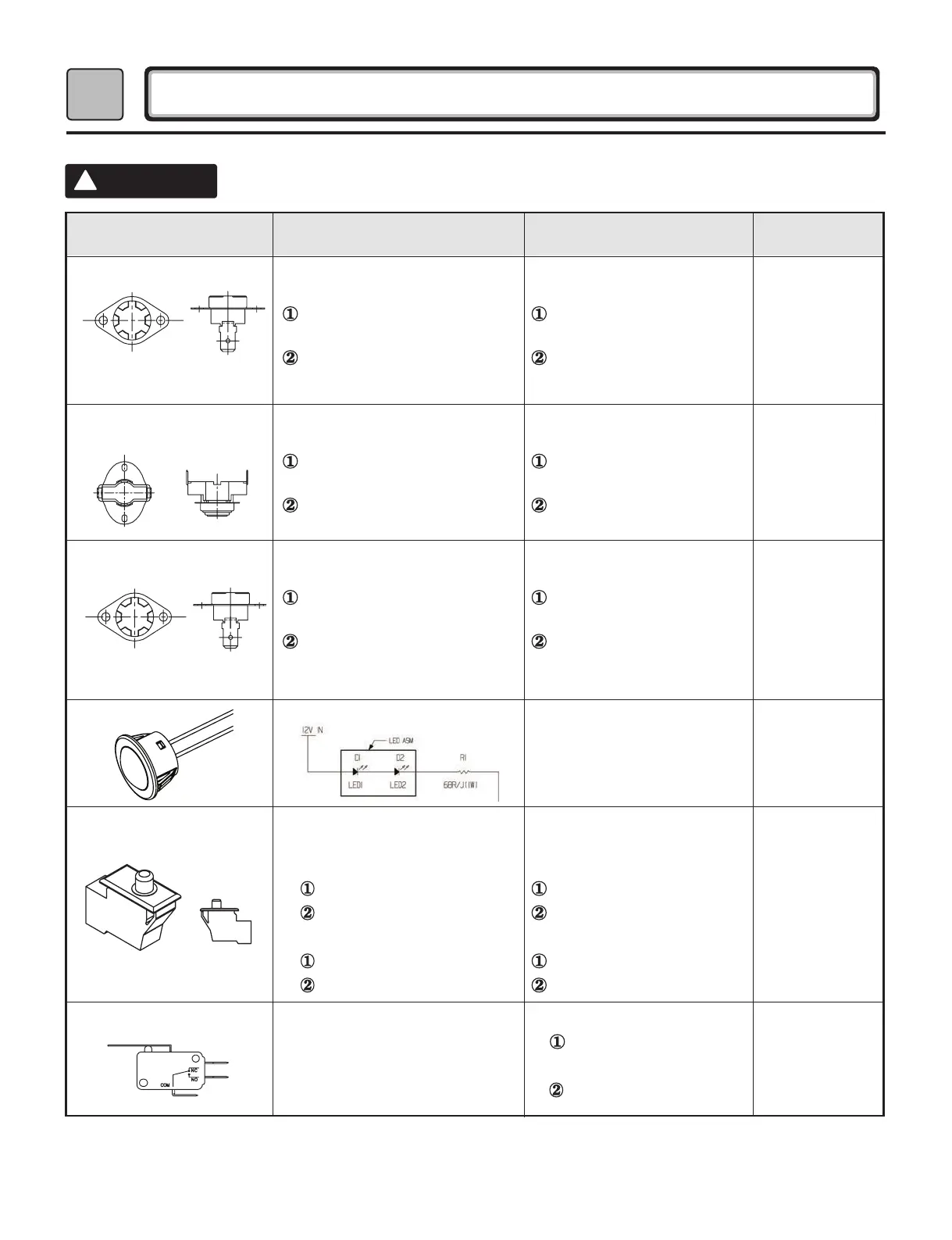

COMPONENT TESTING INFORMATION
5
!
CAUTION
Component Test Procedure Check result Remark
1. Thermal cut off
• Check Top Marking:
N140
Measure resistance of terminal
to terminal
Open at 284
±
41°F
(140
±
5°C)
Auto reset -31°F (-35°C)
Same shape as outlet thermostat.
If thermal fuse is open must
be replaced
Resistance value
୒
∞
Continuity (250°F
˨
) <1Ω
• Heater case-
Safety
• Electric type
2. Hi limit Thermostat
(Auto reset)
Measure resistance of terminal
to terminal
Open at 257
±
9°F
(125
±
5°C)
Close at 221
±
9°F
(94
±
7°C)
Resistance value
୒
∞
Resistance value <5Ω
• Heater case -
Hi limit
• Electric type
3. Outlet Thermostat
( Auto reset)
• Check Top Marking:
N85
Measure resistance of terminal
to terminal
Open at 185
±
41°F
(85
±
5°C)
Close at 167
±
41°F
(75
±
5°C)
Same shape as thermal cut off.
Resistance value
୒
∞
Resistance value <5Ω
• Blow housing -
Safety
• Electric type
4. LED Lamp Schematic: If the lamp is turned on
by connecting is normal.
It is not
measured by
multimeter
because V is
3.2V
th
6. Idler switch Measure resistance of the
following terminal:
COM - NC
1. Lever open
Resistance value <1Ω
2. Lever push (close)
Resistance value
୒
∞
5. Door switch Measure resistance of the
following terminal
1) Door open
Terminal: COM - NC (1-3)
Terminal: COM - NO (1-2)
2) Door closed
Terminal: COM - NC (1-3)
Terminal: COM - NO (1-2)
Resistance value <1Ω
Resistance value
୒
∞
Resistance value
୒
∞
Resistance value <1Ω
19
5
COMPONENT TESTING INFORMATION

LG DLEX8100V Specifications

General

Type	Electric
Capacity	9.0 cu. ft.
Color	Graphite Steel
Drum Material	Stainless Steel
Energy Star Certified	Yes
Number of Drying Programs	14
Steam Technology	Yes
Smart Technology	LG ThinQ®
