LG DLEX8100V User Manual

58 pages

To Next Page

To Previous Page

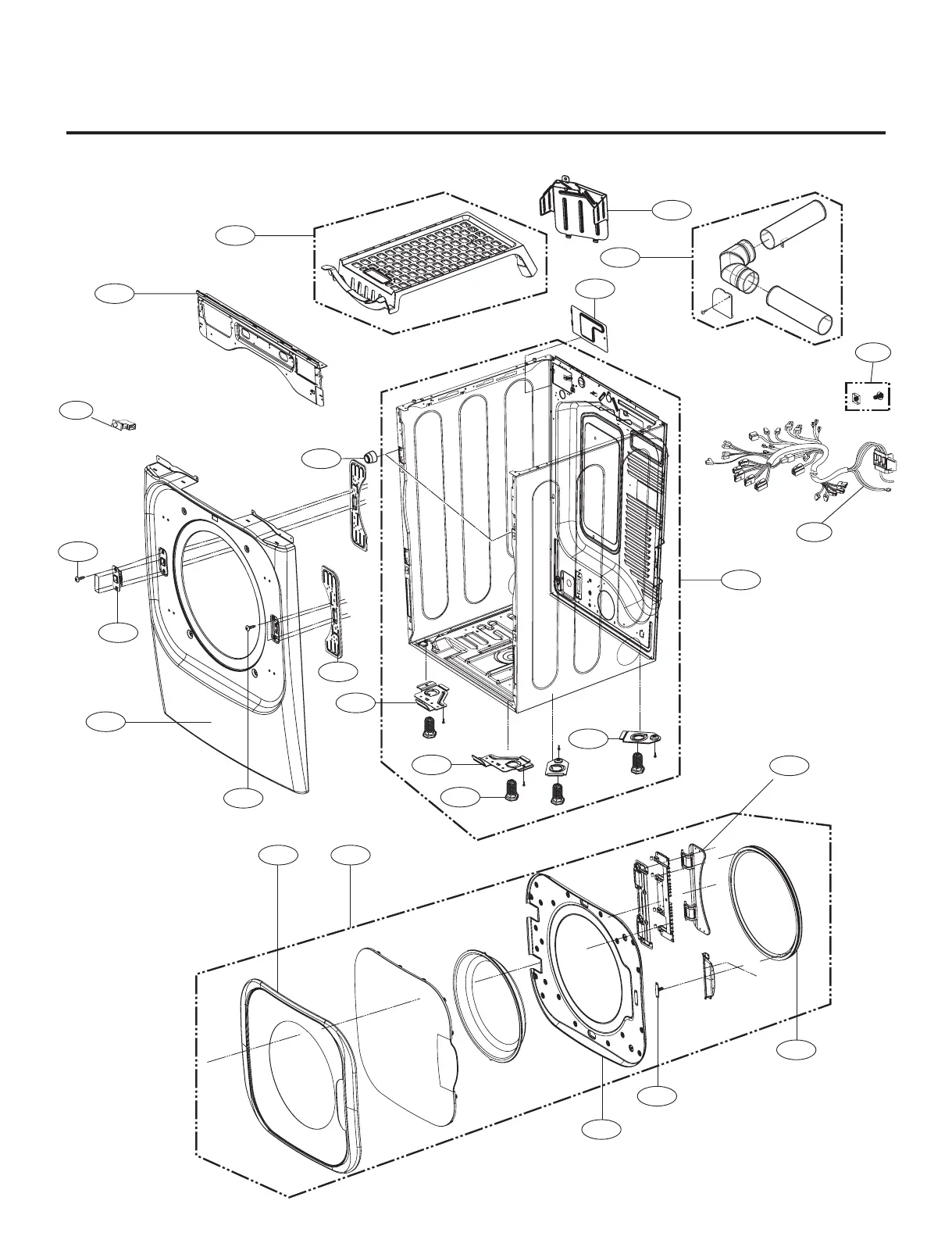

13-3-1. Cabinet and Door Assembly: Electric Type

A570

A530

A525

A540

A520

A500

A800

A400A420

A430

A390

A310

A410

A450

A460

A590

A131

A700

A320

A325

A300

A308

A610

A600

A330

Table of Contents3
Specifications4
Features and Benefits6
Installation Instructions6
Dryer Cycle Process16
Component Testing Information17
Motor Diagram and Schematic20
Wiring Diagram21
Steam Function22
Steam Cycle Guide22
Troubleshooting23
Display Fault/Error Codes24
Flow Sensor Function25
Flow Sensor25
Installation Test (Exhaust Check)26
Diagnostic Test28
TEST 1 120V AC Electrical Supply32
TEST 2 Thermistor Test - Measure with Power off33
TEST 3 Motor Test34
TEST 4 Moisture Sensor35
TEST 5 Door Switch Test36
TEST 6 Heater Switch Test - Electric Type37
TEST 7 Gas Valve Test - Gas Type38
TEST 8 Motor Assembly, DC, Pump39
TEST 9 Generator Assembly39
Change Gas Setting (Natural Gas, Propane Gas)40
Disassembly Instructions42
Exploded View52
Control Panel and Plate Assembly52
PANEL DRAWER ASSEMBLY and GUIDE ASSEMBLY53
CABINET and DOOR ASSEMBLY: ELECTRIC TYPE54
CABINET and DOOR ASSEMBLY: GAS TYPE55
DRUM and MOTOR ASSEMBLY: ELECTRIC TYPE56
DRUM and MOTOR ASSEMBLY: GAS TYPE57
