Installing the Side Vent Kit
w
WARNING
Failure to follow all of the safety warnings in this
manual could result in property damage, injury to
persons, or death.
Your new dryer is shipped to vent to the rear. It can also
be configured to vent to the bottom or side (right-side
venting is not available on gas models).
An adapter kit, part number 383EEL9001B, may be
purchased from your LG retailer. This kit contains the
necessary duct components to change the dryer vent
location.

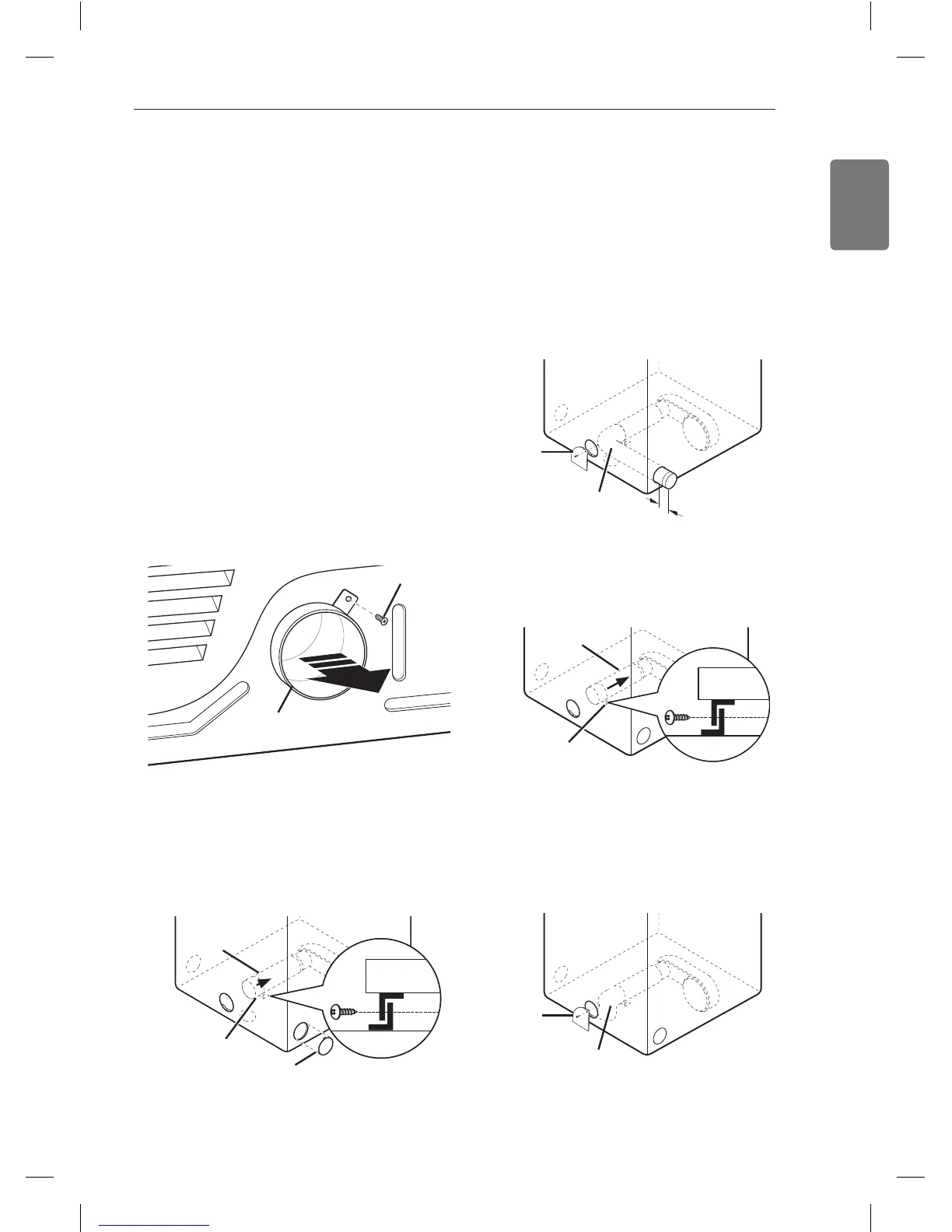

1. Remove the rear exhaust duct retaining screw. Pull
out the exhaust duct.
2. Press the tabs on the knockout and carefully remove
the knockout for the desired vent opening (right-
side venting is not available on gas models). Press the
adapter duct onto the blower housing and secure to
the base of the dryer as shown.
Rear
Exhaust Duct
Retaining
Screw
Knockout
Bracket
Adapter
Duct
3. Preassemble a 4 inches (10.2 cm) elbow to the next
4-inches (10.2 cm) duct section, and secure all joints
with duct tape. Be sure that the male end of the
elbow faces AWAY from the dryer. Insert the elbow/
duct assembly through the side opening and press it
onto the adapter duct. Secure in place with duct tape.
Be sure that the male end of the duct protrudes 1
2/4
inches (3.8 cm) to connect the remaining ductwork.
Attach cover plate to the back of the dryer with
included screw.
2. Press the adapter duct onto the blower housing and
secure to the base of the dryer as shown.
3. Insert the 4 inches (10.2 cm) elbow through the rear
opening and press it onto the adapter duct. Be sure
that the male end of the elbow faces down through
hole in the bottom of the dryer. Secure in place with
duct tape. Attach the cover plate to the back of the
dryer with included screw.
Elbow
Cover
Plate
Bracket
Adapter
Duct
Elbow
Cover
Plate
1
2/4
”
(3.8 cm)
INSTALLATION INSTRUCTIONS
