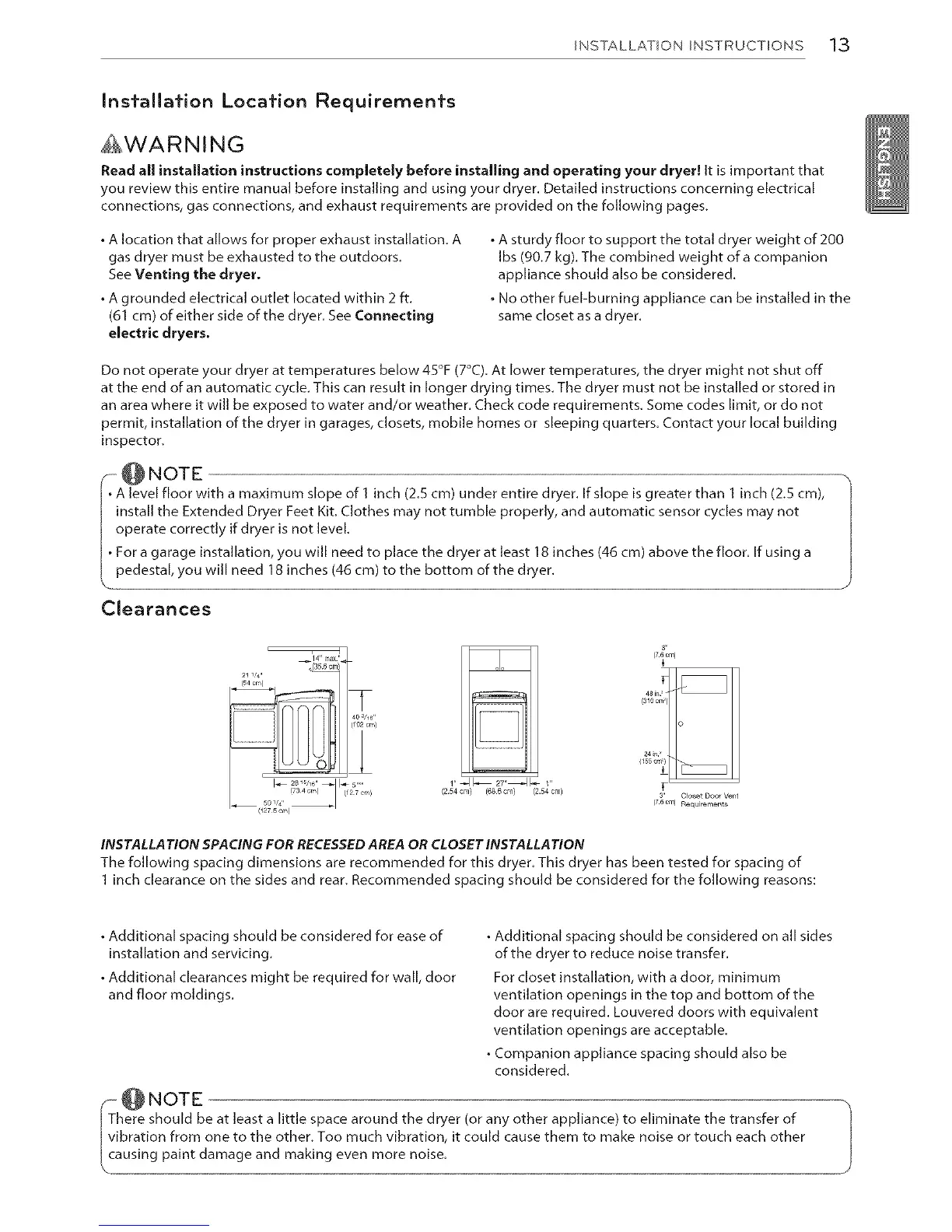

INSTALLATION INSTRUCTIONS 13
Insfallafion Locafion Requiremenfs
_WARNING
Read all installation instructions completely before installing and operating your dryer! It is important that
you review this entire manual before installing and using your dryer. Detailed instructions concerning electrical
connections, gas connections, and exhaust requirements are provided on the following pages.
• A location that allows for proper exhaust installation. A
gas dryer must be exhausted to the outdoors.
See Venting the dryer,
• A grounded electrical outlet located within 2 ft.
(61 cm) of either side of the dryer. See Connecting
electric dryers,
. A sturdy floor to support the total dryer weight of 200
Ibs (90.7 kg). The combined weight of a companion
appliance should also be considered.
. No other fuel-burning appliance can be installed in the
same closet as a dryer.
Do not operate your dryer at temperatures below 45°F (7°C). At lower temperatures, the dryer might not shut off
at the end of an automatic cycle. This can result in longer drying times. The dryer must not be installed or stored in
an area where it will be exposed to water and/or weather. Check code requirements. Some codes limit, or do not
permit, installation of the dryer in garages, closets, mobile homes or sleeping quarters. Contact your local building
inspector.
'10 NOTE
level floor with a maximum slope of 1 inch (2.5 cm) under entire dryer. If slope is greater than 1 inch (2.5 cm),
install the Extended Dryer Feet Kit, Clothes may not tumble properly, and automatic sensor cycles may not
perate correctly if dryer is not level.
or a garage installation, you will need to place the dryer at least 18 inches (46 cm) above the flooL If using a
pedestal, you will need 18 inches (46 cm) to the bottom of the dryer.
Clearances
_,,
(2.54 Crfl) (686 on1) (2.54 ore)
(760m)
Closet Door Vent
(7 6 era) Requirement5
INSTALLATION SPACING FOR RECESSEDAREA OR CLOSET INSTALLATION
The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of
1 inch clearance on the sides and rear. Recommended spacing should be considered for the following reasons:
• Additional spacing should be considered for ease of
installation and servicing,
• Additional clearances might be required for wall, door
and floor moldings.
• Additional spacing should be considered on all sides
of the dryer to reduce noise transfer.
For closet installation, with a door, minimum
ventilation openings in the top and bottom of the
door are required. Louvered doors with equivalent
ventilation openings are acceptable.
• Companion appliance spacing should also be
considered.
O NOTE
here should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of
ibration from one to the other. Too much vibration, it could cause them to make noise or touch each other
using paint damage and making even more noise.
