INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS
Installation location requirements
w
WARNING
It is important that you review this entire
manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust
requirements are provided on the following pages.
Do not operate your dryer at temperatures below 45°F (7°C). At lower temperatures, the dryer might not shut off at the end of an automatic
cycle. This can result in longer drying times. The dryer must not be installed or stored in an area where it will be exposed to water and/or
weather. Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes or
sleeping quarters. Contact your local building inspector.
• A level floor with a maximum slope of 1 inch (2.5 cm) under entire dryer. Clothes may not tumble properly, and automatic sensor cycles
may not operate correctly if dryer is not level.
• For a garage installation, you will need to place the dryer at least 18 inches (46 cm) above the floor. If using a pedestal, you will need 18
inches (46 cm) to the bottom of the dryer.
Clearances

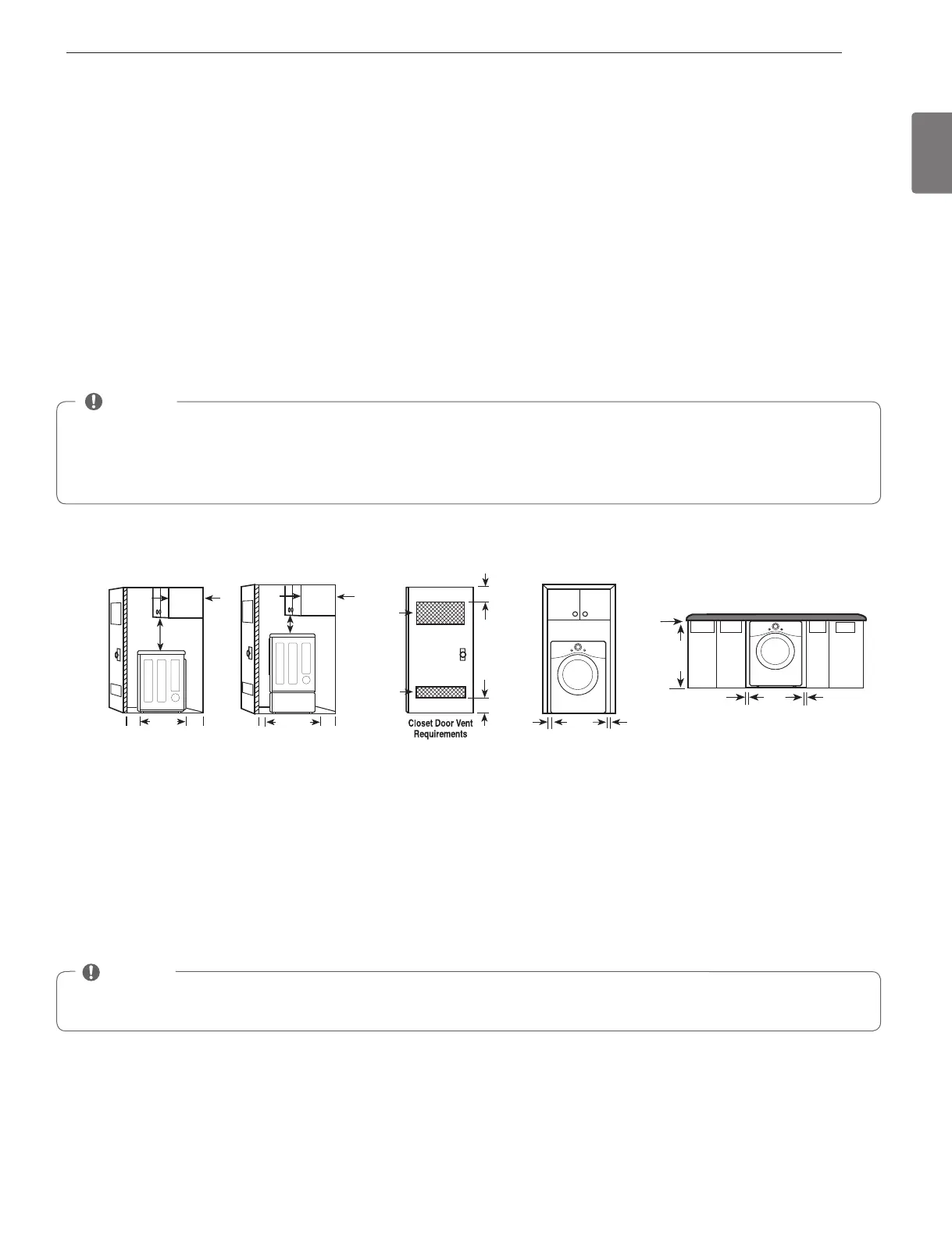

INSTALLATION SPACING FOR RECESSED AREA OR CLOSET INSTALLATION
The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of 0 inches (0 cm) clearance on
the sides and rear. Recommended spacing should be considered for the following reasons:
There should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of vibration from one to the
other. Too much vibration, it could cause them to make noise or touch each other causing paint damage and making even more noise.
• A location that allows for proper exhaust installation. A gas dryer
must be exhausted to the outdoors. See .
• A grounded electrical outlet located within 2 ft. (61 cm) of either
side of the dryer. See .
• A sturdy floor to support the total dryer weight of 200 lbs (90.7
kg). The combined weight of a companion appliance should also
be considered.
• No other fuel-burning appliance can be installed in the same area
as a dryer.
• Additional spacing should be considered for ease of installation
and servicing.
• Additional clearances might be required for wall, door and floor
moldings.
• Additional spacing should be considered on all sides of the dryer
to reduce noise transfer.
For closet installation with a door, minimum ventilation openings
in the top and bottom of the door are required. Louvered doors
with equivalent ventilation openings are acceptable.
• Companion appliance spacing should also be considered.
24 in.
2*
(155 cm
2
)
18" min.*
(45.7 cm)
1"*
(2.5 cm)
30"
(76.1 cm)
30"
(76.1 cm)
5"**
(12.7 cm)
48 in.
2*
(310 cm
2
)
14" max.*
(35.6 cm)
3"
*
(7.6 cm)
3"
*
(7.6 cm)
1"
(2.5 cm)
27"
(68.6 cm)
1"
(2.5 cm)
1"*
(2.5 cm)
5"**
(12.7 cm)
14" max.*
(35.6 cm)
18" min.*
(45.7 cm)
0"
(0 cm)
39"
(99.1 cm)
1"
(2.5 cm)
27"
(68.6 cm)
1"
(2.5 cm)
30"
(76.1 cm)
5"**
(12.7 cm)
1"**
(2.5 cm)
1"
(2.5 cm)
1"
(2.5 cm)
27"
(68.6 cm)
9"**
(22.9 cm)
7"* (17.8 cm)
7"* (17.8 cm)
1"* (2.5 cm)
5
"**
(14 cm)
1/2
77
1/2
"
(196.8 cm)
Requisitos
deventilación de
lapuerta del armario
24 in.
2*
(155 cm
2
)
48 in.
2*
(310 cm
2
)
1"*
(2,5 cm)
5"**
(12,7 cm)
14" max.*
(35,6 cm)
3"
*
(7,6 cm)
3"
*
(7,6 cm)
1"
(2,5 cm)
27"
(68,6 cm)
1"
(2,5 cm)
1"*
(2,5 cm)
5"**
(12,7 cm)
14" max.*
(35,6 cm)
18" min.*
(45,7 cm)
0"
(0 cm)
39" min.
(99,1 cm)
1"
(2,5 cm)
27"
(68,6 cm)
1"
(2,5 cm)
18" min.*
(45,7 cm)
30"
(76,1 cm)
30"
(76,1 cm)
30"
(76,1 cm)
5"**
(12,7 cm)
1"**
(2,5 cm)
1"
(2,5 cm)
1"
(2,5 cm)
27"
(68,6 cm)
9"**
(22,9 cm)
7"* (17,8 cm)
7"* (17,8 cm)
1"* (2,5 cm)
5
"**
(14 cm)
1/2
77
1/2
"
(196,8 cm)
3"* (7,6 cm)
6"*(15,2 cm)
3"* (7,6 cm)
27"
(68,6 cm)
1"
(2,5 cm)
1"
(2,5 cm)
24 in.
2*
(155 cm
2
)
48 in.
2*
(310 cm
2
)
24 in.
2*
(155 cm
2
)
18" min.*
(45,7 cm)
1"*
(2,5 cm)
30"
(76,1 cm)
30"
(76,1 cm)
5"**
(12,7 cm)
48 in.
2*
(310 cm
2
)
14" max.*
(35,6 cm)
3"
*
(7,6 cm)
3"
*
(7,6 cm)
1"
(2,5 cm)
27"
(68,6 cm)
1"
(2,5 cm)
1"*
(2,5 cm)
5"**
(12,7 cm)
14" max.*
(35,6 cm)
18" min.*
(45,7 cm)
0"
(0 cm)
39"
(99,1 cm)
1"
(2,5 cm)
27"
(68,6 cm)
1"
(2,5 cm)
30"
(76,1 cm)
5"**
(12,7 cm)
1"**
(2,5 cm)
1"
(2,5 cm)
1"
(2,5 cm)
27"
(68,6 cm)
9"**
(22,9 cm)
7"* (17,8 cm)
7"* (17,8 cm)
1"* (2,5 cm)
5
"**
(14 cm)
1/2
77
1/2
"
(196,8 cm)
3"* (7,6 cm)
6"*(15,2 cm)
3"* (7,6 cm)
27"
(68,6 cm)
1"
(2,5 cm)
1"
(2,5 cm)
24 in.
2*
(155 cm
2
)
48 in.
2*
(310 cm
2
)
