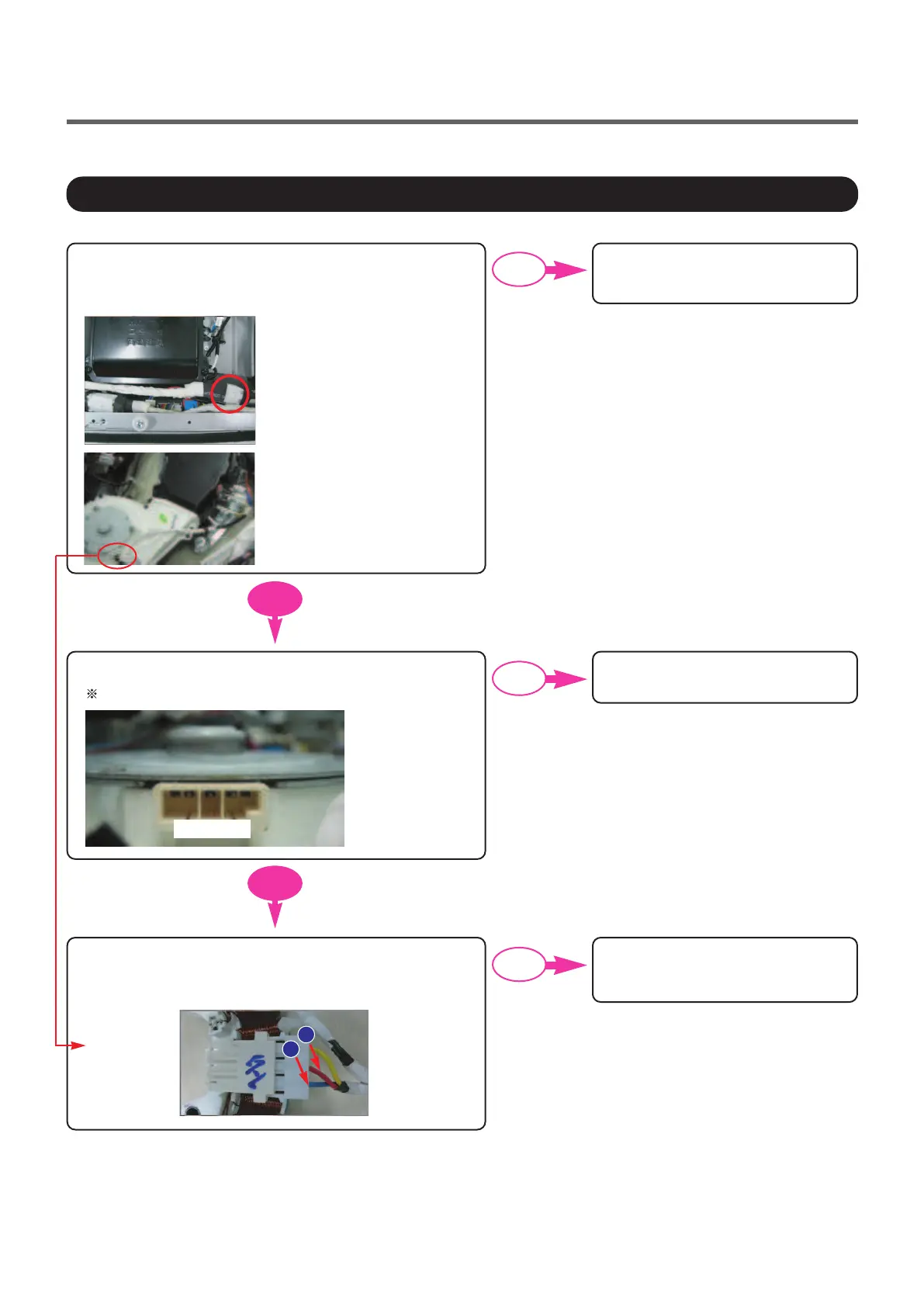

Are the resistance s ame between
terminal points?
V~U / U~W / W ~V : 2~5
Is the C onnec tor connected correctly to
the
Main P C B and the Dry Heater or F an Motor?
Or is the
Harnes s alright?
R econnect or repair the C onnec tor.
Or replace the
Harnes s.
R eplace the Dry F an Motor
.
When checking voltage between connec tors (1,2)
on drying, is the voltage DC 20~30V as the figure ?
Dry Fan Motor Trouble
Y E S
Y E S
NO
NO
R eplace the PW B as s embly
(main)
.
NO
V U W
1
2
To Next Page
