LG FLATRON E2040S User Manual


Copyright © 2010 LG Electronics. Inc. All right reserved. - 7 - LGE Internal Use Only
Only for training and service purposes

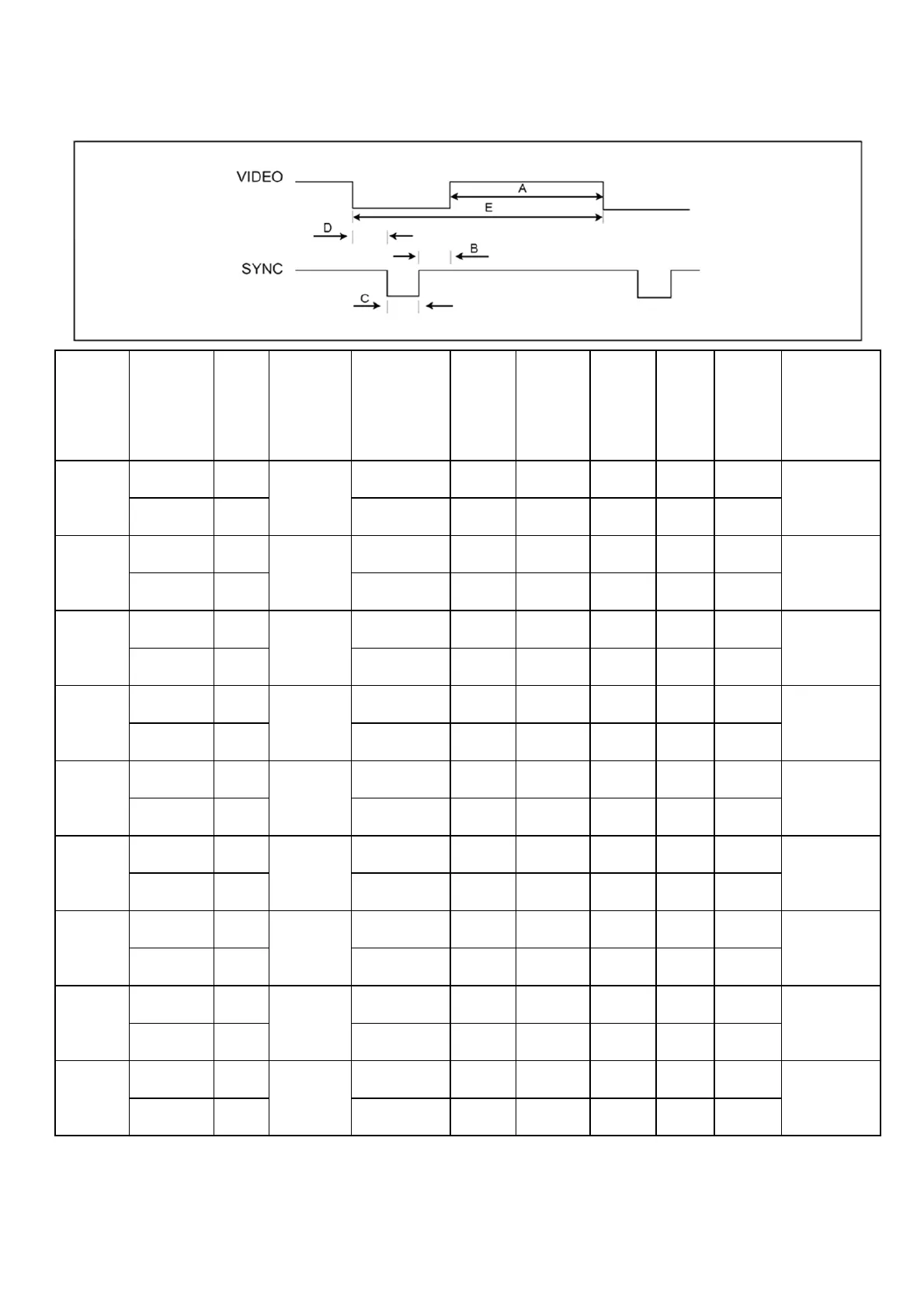

TIMING CHART
MODE
CLASSIFI
CATION
Polar
ity
DOT
CLOCK
[MHz]
Frequency
[kHz]/[Hz]
Total
Period
(E)
Display
(A)
Front
Porch
(D)
Sync.
(C)
Back
Porch
(B)
Resolution
1
H(Pixels) -
28.321
31.468 900 720 18 108 54
720 X 400
V(Lines) + 70.08 449 400 12 2 35
2
H(Pixels) -
25.175
31.469 800 640 16 96 48
640 x 480
V(Lines) - 59.94 525 480 10 2 33
3
H(Pixels) -
31.5
37.5 840 640 16 64 120
640 x 480
V(Lines) - 75 500 480 1 3 16
4
H(Pixels) +
40.0
37.879 1056 800 40 128 88
800 x 600
V(Lines) + 60.317 628 600 1 4 23
5
H(Pixels) +
49.5
46.875 1056 800 16 80 160
800 x 600
V(Lines) + 75.0 625 600 1 3 21
6
H(Pixels) -
65.0
48.363 1344 1024 24 136 160
1024 x 768
V(Lines) - 60.0 806 768 3 6 29
7
H(Pixels) -
78.75
60.123 1312 1024 16 96 176
1024 x 768
V(Lines) - 75.029 800 768 1 3 28
8
H(Pixels) +/-
108.0
67.500 1600 1152 64 128 256
1152 x 864
V(Lines) +/- 75.000 900 864 1 3 32
9
H(Pixels) +
108
60 1800 1600 24 80 96
1600 x 900
V(Lines) + 60 1000 900 1 3 96
