MAKING CONNECTIONS

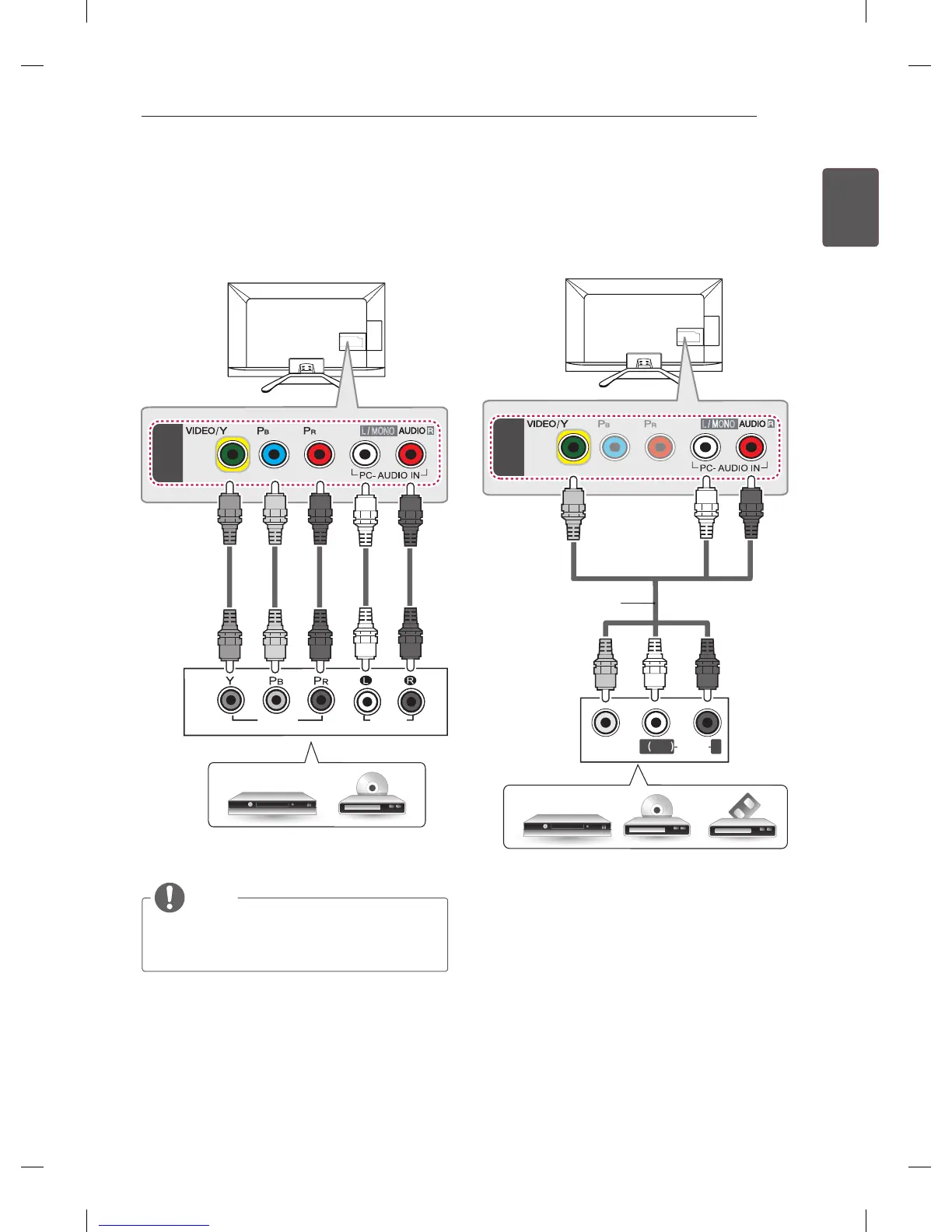

Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite cable as shown.
VIDEO
MONO
( )
AUDIOL R
/ AV IN
L / MONO
COMPONENT IN
YELLOW
WHITE
RED
RED
WHITE
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / VCR
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable as shown.
NOTE
y
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
VIDEO
AUDIO
/ AV IN
L / MONO
VIDEO
AUDIO
COMPONENT IN
DVD/ Blu-Ray / HD Cable Box
GREEN
BLUE
RED
RED
WHITE
(*Not Provided)
YELLOW
