LG LDF5545BD/00 User Manual

12 INSTALLATION
Installation Overview
Preparing Cabinet Opening
Preparing Electrical Wiring
Preparing Water Supply Connection
Preparing the Dishwasher
Removing Lower Cover
Sliding the Dishwasher into Cabinet
Leveling the Dishwasher
Securing the Dishwasher to Countertop
Connecting the Drain Hose
Connecting Water Supply
Connecting Power
Final Check

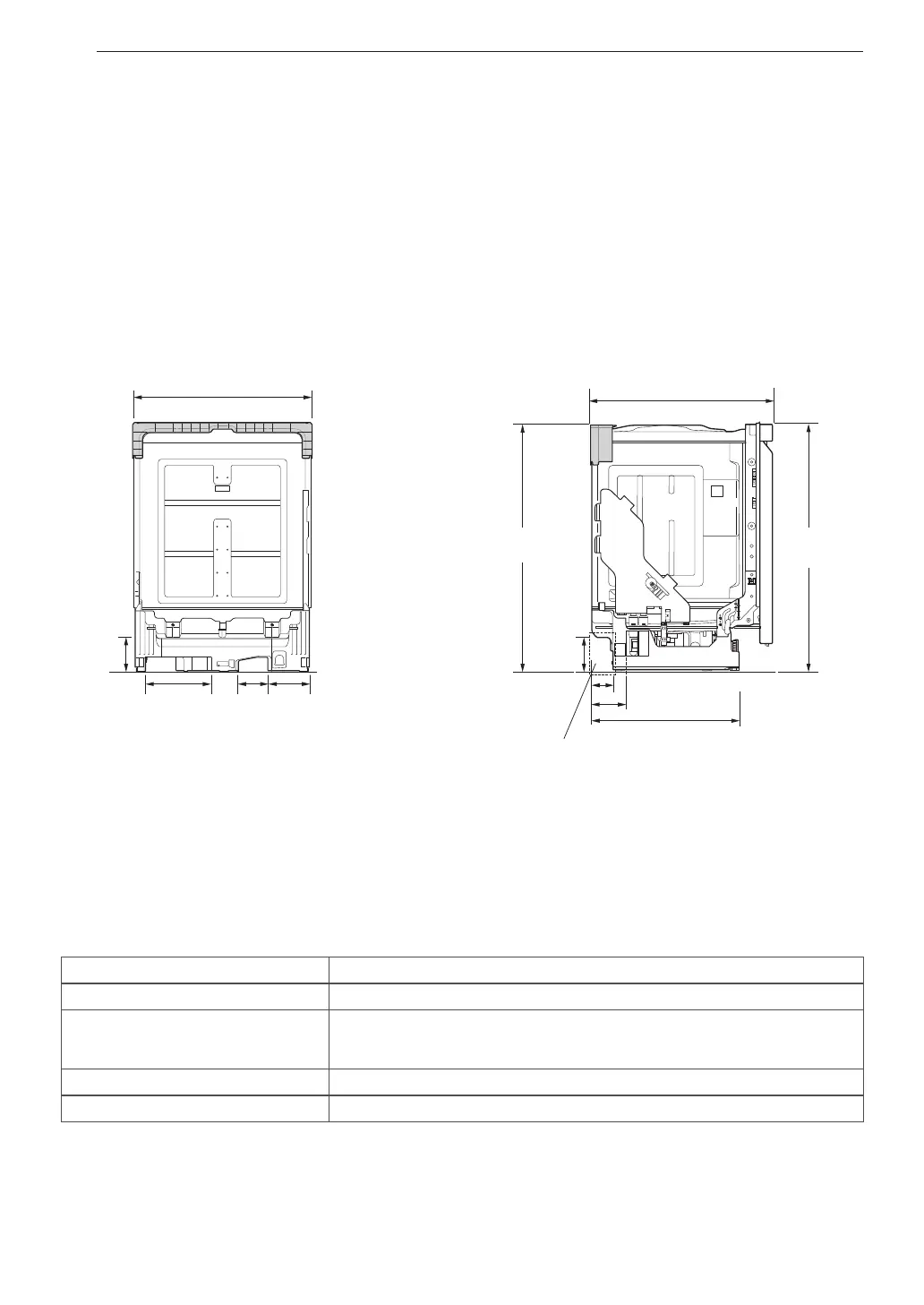

Product Dimensions
Back view Side view
33 /16"
(846 mm)
5
23 /4" (603 mm)
3
4 /2"
(115 mm)
1
33 /8"
(854 mm)
5
2 /16" (75 mm)
15
20 /16" (512 mm)
3
24 /8" (625 mm)
5
4 /4" (120 mm)
3
9 /8"
(238 mm)
3
4 /16"
(119 mm)
5
/4"
(134 mm)
11
1
4 /2"
(115 mm)
1
Water supply hose, drain hose and electric cable should be passed
through this area.
NOTE
• For easiest installation, see marked areas above for water and electrical clearances in base of dishwasher.
Product Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Electrical requirement 120 V, 60 Hz AC only, minimum 15 A circuit breaker
Water pressure 20 - 80 psi (140 - 550 kPa)
Dimensions
23
3
/4"(W) X 24
5
/8"(D) X 33
5
/8"(H)
603 mm(W) X 625 mm(D) X 854 mm(H)
Inlet water temperature 120 °F (49 °C) minimum, 149 °F (65 °C) maximum
Net weight 75 - 89 lbs. (34 - 40 kg)

LG LDF5545BD/00 Specifications

General

Style	built-in dishwashers
Color	black stainless steel
Load Capacity	15
Number of Cycles	9
Cycle Selections	auto, heavy, delicate, normal, turbo, download cycle, machine clean, rinse, express
Options/Settings	dual zone, half load, energy saver, high temp, extra dry, delay start, control lock, night dry
Drying Type	condenser drying
Noise level	48 decibels adjusted
Control Type	touchpad
Delay Start	yes
Load Sensor	yes
Number of Racks	2
Cycle Signal	yes
Water Filter	no
Water Softener	no
Food Disposer	no
Sanitize Settings	yes
Smart Home	no
Annual Energy Consumption	258 kilowatt hours
Water Consumption Per Cycle	2.8 gallons
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24 5/8 inches
Height	33 5/8 inches
Width	23 3/4 inches
Net Weight	75 pounds
