LG LDT7797ST User Manual

11INSTALLATION
ENGLISH
INSTALLATION

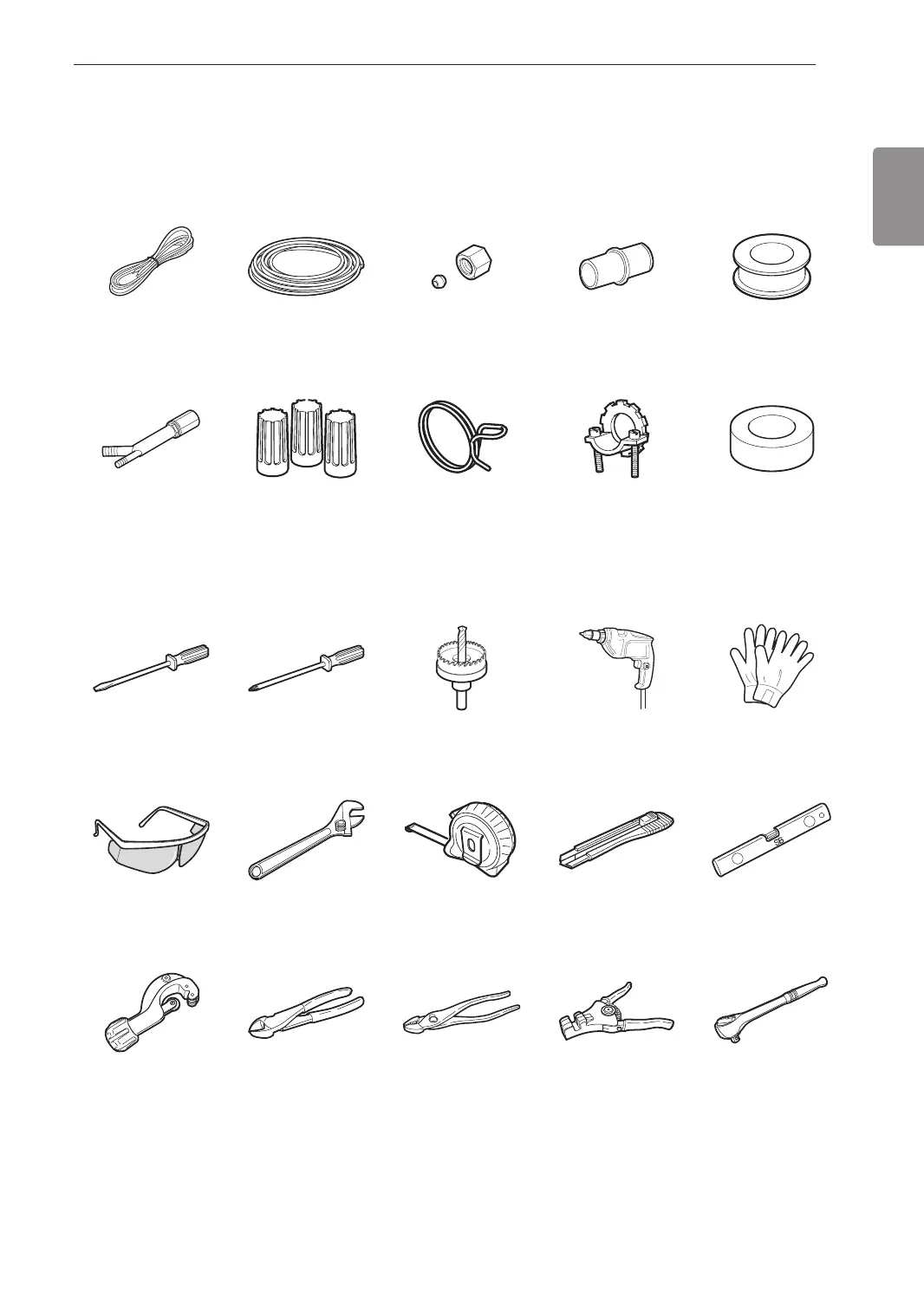

Installation Parts and Tools
Parts not Provided
Electrical cable Water supply tube Fittings for tube Coupler Teon™ tape
Air gap Wire nuts for
16-gauge wiring
Hose clamp ⅞" UL approved
strain relief
Electrical tape
Tools Needed
Flat-blade
screwdriver
Phillips
screwdriver
Hole saw
min. 2½" bit
Electrical drill Gloves
Safety glasses Adjustable wrench Tape measure Utility knife Level
Tubing cutter Nipper Pliers Wire stripper ¼" Square
drive wrench

LG LDT7797ST Specifications

General

Style	built-in dishwashers
Color	stainless steel
Load Capacity	15
Number of Cycles	9
Cycle Selections	auto, heavy, delicate, normal, turbo, download cycle, machine clean, rinse, express
Options/Settings	energy save, half load, delicate wash, normal, auto, rinse, heavy wash, high temperature wash, express cycle, turbo, extra dry, machine cleaning
Drying Type	condenser drying
Noise level	44 decibels adjusted
Delay Start	yes
Child Lock	yes
Load Sensor	yes
Number of Racks	3
Cycle Signal	yes
Food Disposer	no
Sanitize Settings	no
Wi-Fi	wi-fi
Smart Home	true, amazon alexa, google assistant
Annual Energy Consumption	258 kilowatt hours
Water Consumption Per Cycle	2.8 gallons
Voltage	120 volts
Current	15 amperes

Weight and Dimensions

Depth	24 5/8 inches
Height	33 5/8 inches
Width	23 3/4 inches
Net Weight	81.6 pounds
