14 INSTALLATION
Preparing Electrical Wiring
1
Operate this appliance with the correct voltage
as shown in this manual and on the rating plate.
Connect it to a dedicated, properly grounded
branch circuit which is protected by a time delay
fuse. Connect the appliance using 3-wires,
including a ground wire.
2
If an outlet and other power connector are used,
it should be in an accessible location adjacent
to and not behind the dishwasher and within 4 ft
(1.2 m) of the dishwasher's side.
3
The wiring must be grounded properly. If in
doubt, have it checked by a qualied electrician.
Do not connect any other appliance to the same
outlet.
4

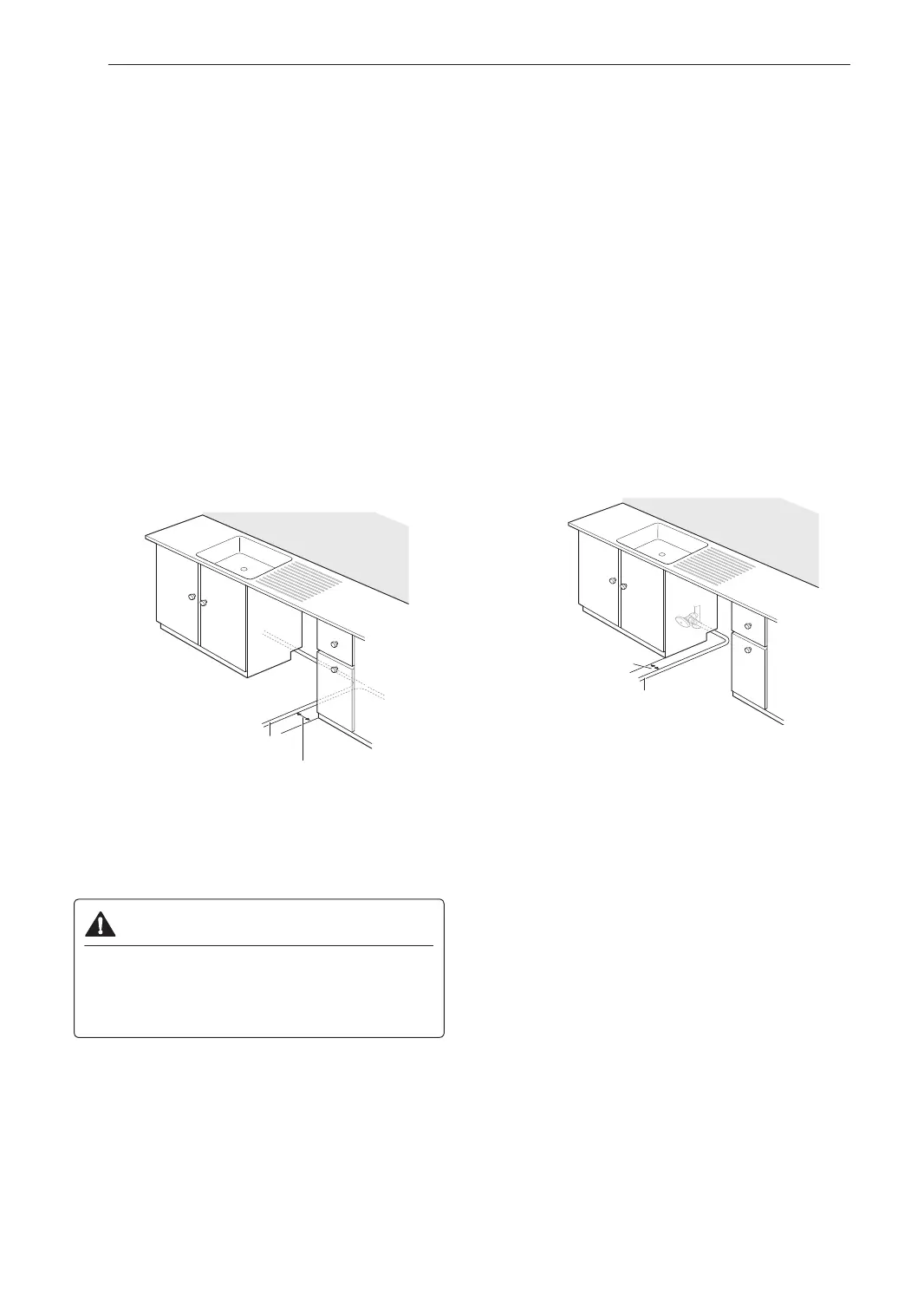

Route the wiring.
4 /2" - 6”
(115 mm - 152 mm)
1
Electrical cable
5
Make sure the electrical cable is oriented in the
right side channel.
WARNING
• For personal safety, remove house fuse or open
circuit breaker before installation.
• Do not use an extension cable or adapter with
this dishwasher.
NOTE
• If you nd any damage to the dishwasher, contact
your retailer or contractor.
• The included wire nut in 16AWG should be used.
Preparing Water Supply
Connection
Make sure the house water supply is turned off
before connecting the dishwasher water lines.
1
Connect the dishwasher to a hot water supply
with a temperature range between 120 °F (49
°C) and 149 °F (65 °C). This temperature range
provides the best washing results and shortest
cycle time. To prevent damage to dishes, the
temperature should not exceed 149 °F (65 °C).
2
When connecting the dishwasher water line,
sealing tape or compound should be used on
pipe threads to avoid leaks. Tape or compound
should not be used on compression ttings.
3
The water supply tube must be located in the left
side channel.
6 /2" - 7 /4"
(165 mm - 197 mm)
1 3
Water supply line
NOTE
• Use new hoses when connecting to the water
supply. Do not reuse old hoses.
