3. TROUBLE SHOOTING
- 172 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

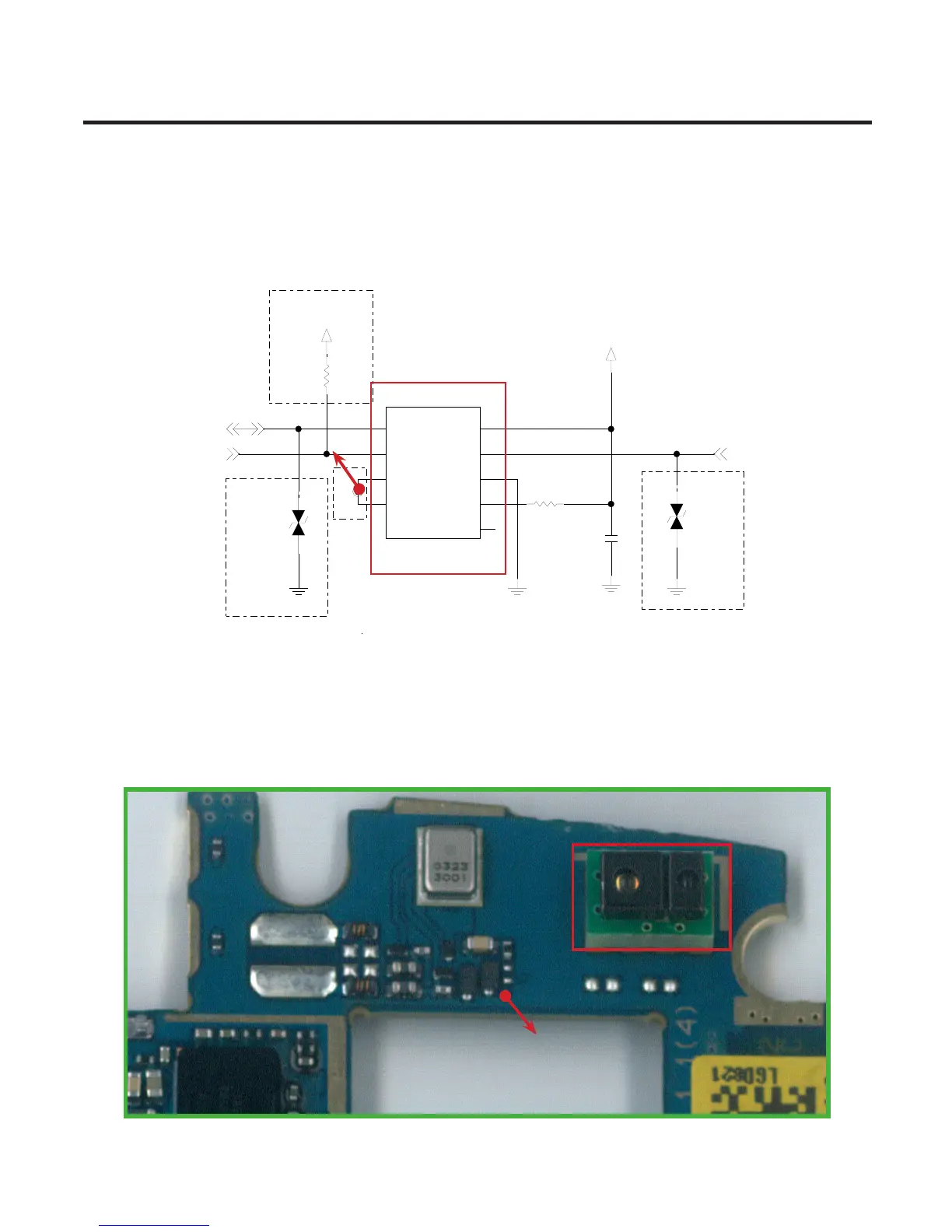

< Proximity/Light Sensor >
< Main PCB _Top >
U11002 (APDS9930)
Proximity Sensor
TP11002
ZD11002
EDTY0012501
UCLAMP3311T
TP11002
R11003
DNI
+1V8_VREG_LVS1
ZD11001
EDTY0012501
UCLAMP3311T
U11002
EAN62568201
APDS-9930-200
9
3
54
6
72
81
SDA VDD
INT SCL
GND
LEDK LEDA
LDR
NC
C11007
2.2u
+3V0_VREG_L17
R11011
22
SENSOR2_I2C_SDA
SENSOR2_I2C_SCL
PROXIMITY_INT
[Check supply voltage accuracy 3%, 2.91V-3.09V]
Add : revB->revC (0531)
Change:revB->rev11_update(0903)
Change:revB->rev11_update(0903)
Add : revB->revC (0531)
0.3mm
0.3mm
U11002
TP11002
