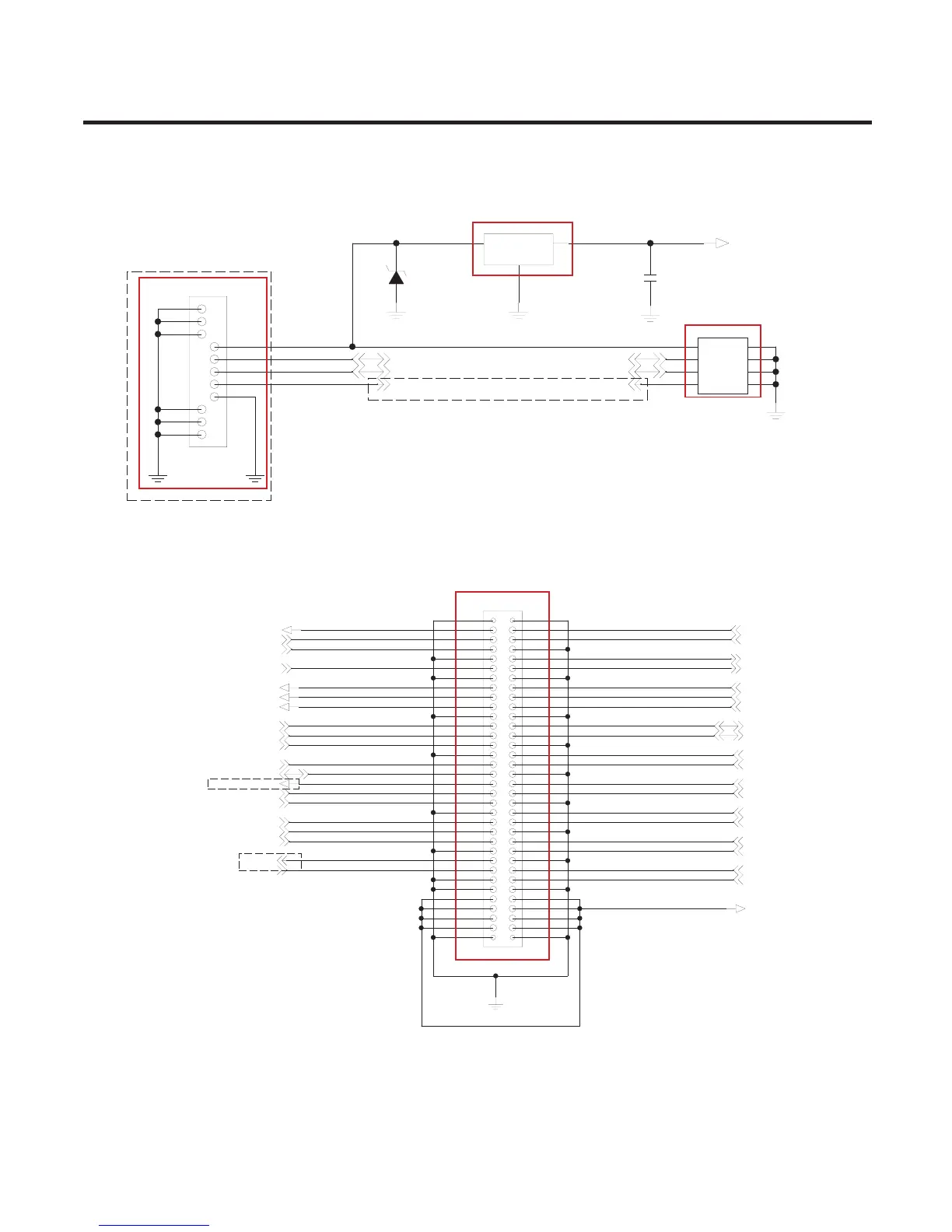

3. TROUBLE SHOOTING
- 186 -
Copyright © 2013 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
CN16000
33 32
34 31
35 30
36 29
37 28
38 27
39 26
40 25
41 24
42 23
43 22
44 21
45 20
46 19
47 18
48 17
49 16
50 15
51 14
52 13
53 12
54 11
55 10
56 9
57 8
58 7
59 6
60 5
61 4
62 3
63 2
64 1
G1G2
G3G4
+3V1_VREG_L22
+5V5_DDVDH
-5V5_DDVDL
VBUS_USB_IN_PM
+1V8_VREG_LVS3
+2V95_VREG_L16
LCD_PWM
ANT_TUNER_0
ANT_TUNER_1
MAIN_MIC_GND
WLED_A
MAIN_MIC_BIAS
SPK_P
SPK_N
MAIN_MIC_P
WLED_C1
WLED_C2
TOUCH_RESET
LCD_MAKER_ID
TOUCH_INT_N
LCD_VSYNC
LCD_RESET_N
USB_HS1_DP_SLIM1
USB_HS1_DM_SLIM1
USB_ID
BLUE_LED_DRV
GREEN_LED_DRV
RED_LED_DRV
MIPI_DSI0_LANE3_M
MIPI_DSI0_CLK_M
MIPI_DSI0_CLK_P
MIPI_DSI0_LANE0_P
MIPI_DSI0_LANE1_M
MIPI_DSI0_LANE1_P
TOUCH_I2C_SDA
TOUCH_I2C_SCL MIPI_DSI0_LANE3_P
MIPI_DSI0_LANE2_M
MIPI_DSI0_LANE2_P
MIPI_DSI0_LANE0_M
05/20 RevE => RevG
CN16000
FL16003
3
2
1
IN
GND
OUT
D16000
D16001
7
8
4
3
5
2
6
1
VBUS
GND2
D+
GND1
D-
ID
GND4
GND3
22p
C16018
CN16002
11
10
9
5
4
3
2
1
8
7
6
VBUS_USB_IN_PM
USB_HS1_DP_SLIM1
USB_HS1_DP_SLIM1
USB_HS1_DM_SLIM1
USB_HS1_DM_SLIM1
USB_ID
USB_ID
4/2 Changed Net Name
4/2 changed USB I/O connector
(from EAG63090001 to EAG63510401)
CN16002
FL16003
D16001
