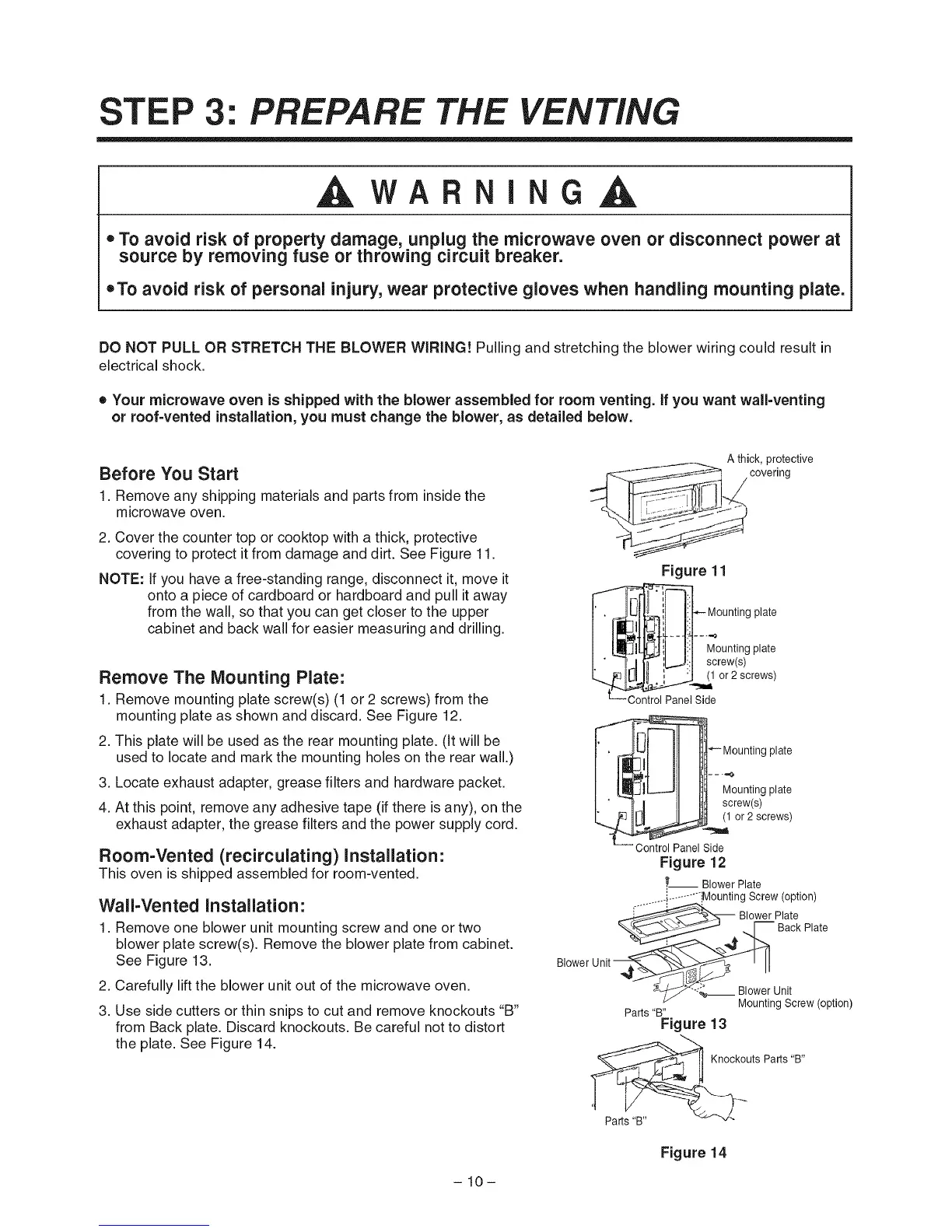

STEP 3: PREPARE THE VENTING
AWARNINGA
• To avoid risk of property damage, unplug the microwave oven or disconnect power at
source by removing fuse or throwing circuit breaker.
eTo avoid risk of personal injury, wear protective gloves when handling mounting plate.
DO NOT PULL OR STRETCH THE BLOWER WIRING! Pulling and stretching the blower wiring could result in
electrical shock.
e Your microwave oven is shipped with the blower assembled for room venting, if you want wall=venting
or roof=vented installation, you must change the blower, as detailed below.
Before You Start
1. Remove any shipping materials and parts from inside the
microwave oven.
2. Cover the counter top or cooktop with a thick, protective
covering to protect it from damage and dirt. See Figure 11.
NOTE: If you have a free-standing range, disconnect it, move it
onto a piece of cardboard or hardboard and pull it away
from the wall, so that you can get closer to the upper
cabinet and back wall for easier measuring and drilling.
Remove The Mounting Plate:
1. Remove mounting plate screw(s) (1 or 2 screws) from the
mounting plate as shown and discard. See Figure 12.
2. This plate will be used as the rear mounting plate. (It will be
used to locate and mark the mounting holes on the rear wall.)
3. Locate exhaust adapter, grease filters and hardware packet.
4. At this point, remove any adhesive tape (if there is any), on the
exhaust adapter, the grease filters and the power supply cord.
Room-Vented (recirculating)Installation:
This oven is shipped assembled for room-vented.
Wall-Vented Installation:
1. Remove one blower unit mounting screw and one or two
blower plate screw(s). Remove the blower plate from cabinet.
See Figure 13.
2. Carefully lift the blower unit out of the microwave oven.
3. Use side cutters or thin snips to cut and remove knockouts "B"
from Back plate. Discard knockouts. Be careful not to distort
the plate. See Figure 14.
-10-
A thick, protective
covering
Figure 11
plate
Mounting plate
screw(s)
(1 or 2 screws)
Panel Side
I
__ Mounting plate
---Control Panel Side
Figure 12
,-- Blower Plate
,-..........'............Mounting Screw (option)
Blower Unit
Parts "B"
Figure 13
Knockouta Parts "B"
_ Blower Plate
....[_ Back Plate
_Unit
Mounting Screw (option)
Figure 14
To Next Page
