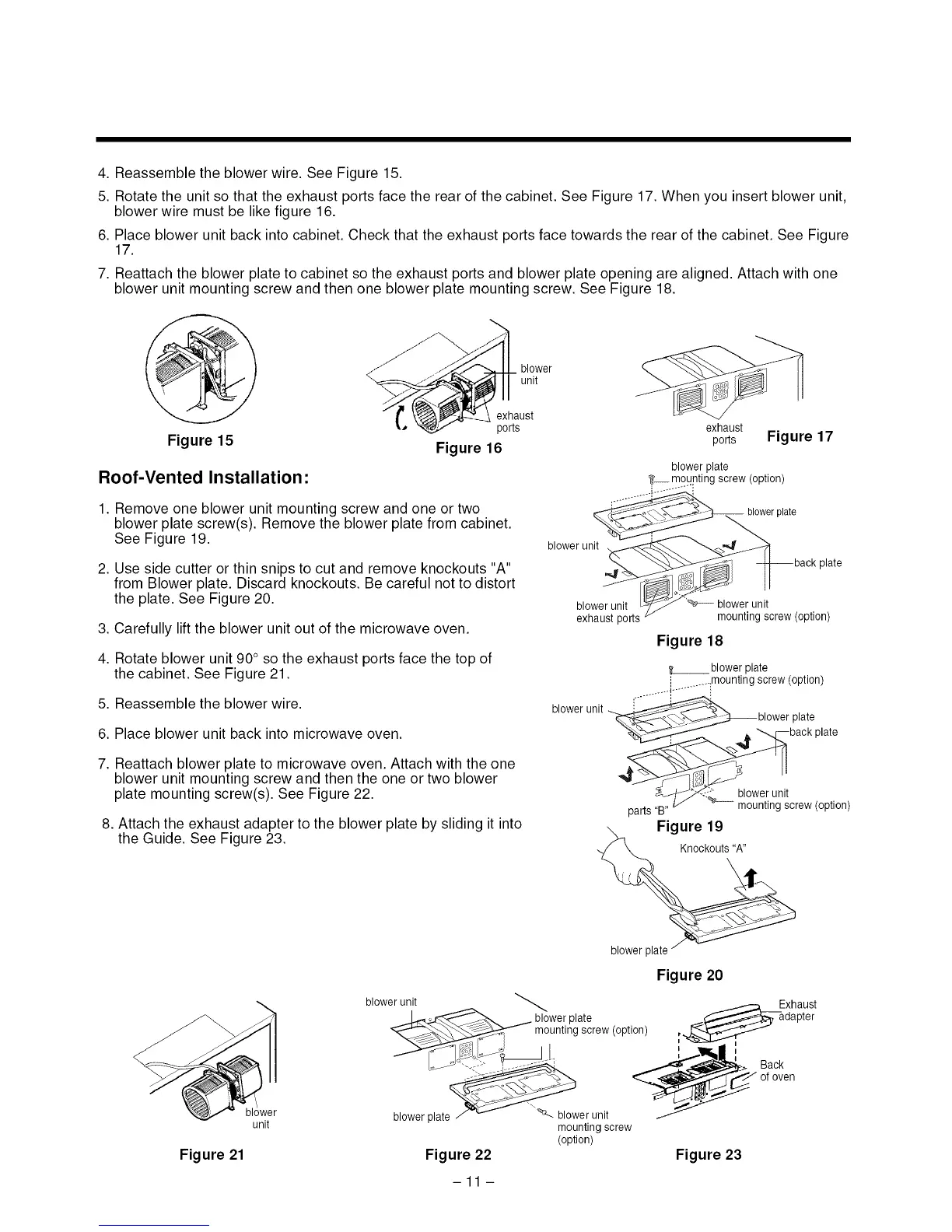

LG LMHM2017ST Installation Instructions

4.Reassembletheblowerwire.SeeFigure15.
5.Rotatetheunitsothattheexhaustportsfacetherearofthecabinet.SeeFigure17.Whenyouinsertblowerunit,
blowerwiremustbelikefigure16.
6.Placeblowerunitbackintocabinet.Checkthattheexhaustportsfacetowardstherearofthecabinet.SeeFigure
17.
7.Reattachtheblowerplatetocabinetsotheexhaustportsandblowerplateopeningarealigned.Attachwithone
blowerunitmountingscrewandthenoneblowerplatemountingscrew.SeeFigure18.
Figure 15
Roof-Vented Installation:
exhaust
ports
Figure 16
1. Remove one blower unit mounting screw and one or two
blower plate screw(s). Remove the blower plate from cabinet.
See Figure 19.
2. Use side cutter or thin snips to cut and remove knockouts "A"
from Blower plate. Discard knockouts. Be careful not to distort
the plate. See Figure 20.
3. Carefully lift the blower unit out of the microwave oven.
4. Rotate blower unit 90° so the exhaust ports face the top of
the cabinet. See Figure 21.
5. Reassemble the blower wire.
blower
unit
6. Place blower unit back into microwave oven.
blower unit
exhaust
ports Figure 17
blower plate
___ m£unting screw (option)
blower plate
blower unit _ blower unit
exhaustports mountingscrew(option)
Figure 18
blower unit
31ate
t blower plate
i ...... imounting screw(option)
plate
)late
7. Reattach blower plate to microwave oven. Attach with the one
blower unit mounting screw and then the one or two blower
plate mounting screw(s). See Figure 22.
8. Attach the exhaust adapter to the blower plate by sliding it into
the Guide. See Figure 23.
blower unit
parts "B" mounting screw (option)
Figure 19
Knockouts "A"
Figure 21
unit
blower plate
Figure 20
blower unit
_-----, Exhaust
_j blower plate __adapter
_'__ mounting screw (option) ['<...._:"_'/
i i
I
o '?-. ...... i
"-..L_;X __ _'__. Back
__ _/" of oven
blower plate _ "'_'-- blower unit
mounting screw
(option)
Figure 22 Figure 23
-11 -
